AKA: 11F715;17K s/n 121;Zarya. Status: Operational 1971. First Launch: 1971-04-19. Last Launch: 1972-07-29. Number: 2 . Thrust: 4.09 kN (919 lbf). Gross mass: 18,210 kg (40,140 lb). Unfuelled mass: 16,210 kg (35,730 lb). Specific impulse: 282 s. Height: 13.07 m (42.88 ft). Span: 9.80 m (32.10 ft).
Crew Size: 3. RCS Coarse No x Thrust: 14 X 98 N. RCS Fine No x Thrust: 18 x 10 N. RCS Coarse Backup No x Thrust: 4 x 98 N. Spacecraft delta v: 320 m/s (1,040 ft/sec). Electric System: 1.00 average kW.
|Salyut 1 Expedition 1 Null|
Credit: © Thomas Kladiva - Thomas Kladiva
|Salyut 1 Rollout|
Notice name 'Zarya' in Cyrillic on the side. This name was abandoned after launch, and the station was renamed 'Salyut'. 'Zarya' was used again as the name for the first component of the International Space Station 28 years later.
Credit: RKK Energia
|Salyut 1 Interior|
Patsayev operates equipment aboard Salyut 1
Credit: RKK Energia
Volkov and Dobrovolskiy conduct medical experiments aboard Salyut 1.
Credit: RKK Energia

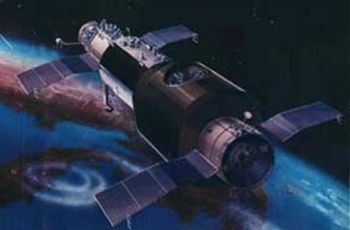

The Salyut 1 was the world's first space station. It was developed in a crash project that took military Almaz space station hulls and equipped them with Soyuz systems.
Credit: © Mark Wade
Credit: Manufacturer Image
In the euphoria after the return of the Soyuz 6/7/8 crews, the problem was how to get Ustinov to meet further with the DOS 'conspirators'. Mishin had prohibited any meetings by TsKBEM staff with the Communist Party Secretary unless Mishin was also present. Another obstacle was that Feoktistov was not a party member; how could his presence at a party meeting be explained to Mishin later?
In any event these consideations were simply ignored. Feoktistov was present at a party meeting with Keldysh, Afanasyev, Tyulin, Serbin, and the Ministry of Defence's party cell: Strogonov, Kravtsev, and Popov. Keldysh was mainly worried how the project would affect the N1, but was reassured that the N1 had a dedicated work force, and the L3 lunar lander spacecraft engineers and workers that would work on DOS were currently idle and had no part of that work. It was finally decided to go ahead with the DOS no earlier than January, to allow time for Ministry Decrees, approval of a work plan by the VPK, preparation of a decree for signature by the Central Committee of the Communist Party and the Soviet Ministers. Work began on the project in December 1969 under the initial auspices of the Academy of Sciences. Additional Details: here....
Afanasyev met with the Chief Designers - Pilyugin, Ryazanskiy, V Kuznetsov, and Chelomei's Deputy, Eydis. Mishin was 'sick' and Chelomei had sent his deputy, as usual, to avoid having to meet Mishin. Afanasyev started with the demand that an Almaz flight take place within less than two years, before the end of the Eighth Five Year Plan. He asked Eydis to install an Igla passive docking system to permit docking with the station of the existing Soyuz 7K-OK as opposed to the planned 7K-S. If Chelomei's bureau could not meet this requirement, then the 'conspirator's' DOS project could be authorised in its place. Additional Details: here....
Ustinov called the DOS 'conspirators' to Kuibyshev Street. Mishin was sent away to Kslovodsk and Chelomei and Glushko were not invited. No one wanted to listen to any more of Glushko's diatribes about Kuznetsov's engines.
Ustinov supported presentation of the DOS concept to the Central Committee. Chelomei categorically opposed DOS and was trying to kill it through military channels. But the allure of an '18 month' station - one which would not only beat the American Skylab, but be in space in time for the 24th Party Congress - seemed too alluring. Mishin also rejected DOS, but deputies at both design bureaux supported the concept and were eager to proceed.
DOS was therefore created only when the moon project failed. Chelomei was forced to work on DOS, and it severely impacted Almaz schedules. The Salyut name was later applied to both the DOS and Almaz stations, creating the impression in the outside world that they were built by one designer.
Kamanin notes that interest of the leadership in manned spaceflight has collapsed with the end of the moon race. Brezhnev has declared that his primary interest is in earth orbital space stations. Both Mishin and Chelomei have stations in development, but the work is progressing slowly. There will be no launch of either of their projects until 1972 - which means the Soviets will be beaten by the US Skylab. Kamanin believes the Americans can never be beaten in space unless all space projects are guided firmly by a single Ministry of Defence and Civilian Space office. Meanwhile the Hong Kong flu epidemic is hitting many at the cosmodrome - Moroz, Popovich, and Bykovsky are all seriously ill.
Brezhnev orders a cooperative crash program to build a civilian space station to beat Skylab into orbit. The civilian station (later named Salyut) will use the Almaz spaceframe fitted out with Soyuz functional equipment. Mishin's OIS military station was cancelled and Chelomei's Almaz would continue, but as second priority to the civilian station. The Soyuz 7K-S station ferry, the 7K-ST, would be revised to be a more conservative modification of the Soyuz 7K-OK. The OIS cosmonaut group was incorporated into the Almaz group.
Kamanin meets with nine generals involved in supervising aspects of the space programme. Only one is from the VVS aviation, the rest have artillery or rocket backgrounds. Naturally they have no bad words for the RSVN or TsUKOS. At the centre, crew selection for the Soyuz 10 and Soyuz 11 missions to the DOS space station are underway. A review is conducted of the biomedical and zero-G studies planned for Soyuz 9. This is followed by a meeting with General Komarov and the cosmonauts on plans for the new cosmonaut training building and a nine-story apartment building.
Kamanin recommends the death benefit to be awarded to Belyayev's family. There is to be a one-time payment of 2,000 roubles to his wife; 1,100 roubles to his daughter; 180 roubles/month pension to the wife; 75 roubles/month to the daughter; access to cosmonaut centre sanatoriums; and a seven-room apartment in Moscow.
Kamanin also reviews the government decree on the DOS-7K space station program. The Ministry of Defence is against it - they want to continue with the Almaz and Soyuz VI projects already underway. DOS will bring both of these to a halt. This is a repeat of the situation in 1967. Kozlov was making good progress on the original Soyuz VI, when it was killed by Mishin. Now three years later Mishin's Soyuz VI is put on the back burner. The Soyuz 7K-OK is still the only manned program brought to completion. Kamanin blames all this on Ustinov and Smirnov's stupid political manoeuvring. The DOS decree has not one word on the training of cosmonauts for these space station missions...
It was originally planned to fly two Soyuz spacecraft in August-September 1970, but at the end of December it was ordered that this be changed to a single 20 day flight in April 1970. Kamanin was given only two days to put together a training programme that had to prepare the cosmonauts for flight by 20 March. The State Commission meets and decides to move the Soyuz 9 flight to May, even though Kamanin says he can support the April schedule. It is the scientific institutes who say they cannot finish development of their experiments - even to meet the May schedule. Kamanin blames such chaos on Smirnov, Serbin, and Ustinov.
The Ministry of Defence and VVS approve the draft DOS resolution. Kamanin has fought against it. He would prefer to develop a single reliable Soyuz spacecraft model by building and flying ten more (there are only four left of the original production lot in assembly). Instead the space leadership keep dreaming up new projects. In Kamanin's view, the DOS and its new Soyuz ferry design join Almaz, Soyuz VI, and the L3 as 'paper spacecraft'. Mishin still thinks he will 'teach the N1 to fly' and complete the L3, but Kamanin thinks the chances of this are nil. There is no coherent plan for Soviet spaceflight.
Things are proceeding normally aboard Soyuz 9. Shatalov and Yeliseyev prepare to depart for the Crimea to train for use of the big solar and stellar telescopes planned for the DOS station. The 15-20 day course will be attended by all 12 DOS cosmonauts. The training plan for DOS is discussed, with a May 1971 flight date as the objective. Kamanin discusses smoking with Bykovsky and Gorbatko - they have to stop.
The Fourth Military-Scientific VVS Space Conference at Monino. The VPK has finally approved completion of space stations DOS #1 and #2. They are designed to support 70 to 80 days of inhabited flight. They will be launched by a Proton UR-500K, then followed 8-10 days later by a Soyuz 7KS launched by an R-7. After thirty days aboard the station, the first crew will return. A few days later a second crew will be launched to man the station. The 7KS version of the Soyuz will have an internal hatch for transfer of the crew from the spacecraft to the station. There will be no solo Soyuz flight to test the crew's response to a 30-day mission before the first DOS flight. DOS#1 is scheduled for launch in February 1971, to coincide with the 24th Meeting of the Communist Party of the USSR. Kamanin knows it actually can't be any earlier than May 1971, but nevertheless the cosmonauts are required to train so that they will be ready by 1 February.
Nasser is dead - a blow to Soviet interests. Kamanin goes to Khrunichev to inspect the DOS-7K space station mock-up. It is to be delivered to the cosmonaut training centre on 20 October. Kamanin believes the planned 5 February launch for DOS#1, and 15 February launch for Soyuz 10, cannot be met.
Kamanin meets with Chelomei. Chelomei discusses his 'war' with Korolev and Mishin. Korolev interfered with, and then finally took the manned lunar flyby project from Chelomei. Now Mishin is doing the same thing with Almaz. Chelomei had already invested five years in development of Almaz, and was on the way to producing a good space station. Then Mishin pushes him out of the way and seizes his production line to build the DOS-7K. DOS#1 is actually Almaz#5, nothing more than a bad copy of Chelomei's station. Serbin and Smirnov do not trust Mishin, which is why they have only authorised him to build four DOS stations. Serbin, Smirnov, and Afanasyev have visited Chelomei, and told him to accelerate work on the Almaz, using three shifts 24 hours a day.
Kamanin notes the second hijacking in Turkey of a Soviet airliner in the last two weeks.
It is decided to send only Volynov and Khrunov to the FAI Congress in India. Shatalov and Yeliseyev are too busy with training on the DOS-7K simulator. Luna 17 has landed on the moon with the Lunokhod lunar rover, another success. DOS#1 is behind schedule for the planned 5 February 1971 launch. It still has not been decided, which will launch first - Soyuz 10 or the DOS station. Such indecision makes it very difficult to train the crews! The simulators for Soyuz, L3, DOS, and Almaz are all now in full use for crew training. Kamanin discusses with engineers construction of a pool for EVA training (25 m wide and 12 m deep). Kutakahov is opposed to the project. Chelomei has been ordered to accelerate the first Almaz launch to 1972, if he can resist the continuous attacks by Mishin. Mishin has become very accomplished, on the N1/L3 program, in spending huge amounts of money with no result.
A gala is held at the Soviet Army Theater on the occasion of the 50th Anniversary of the Zhukovskiy Flight Academy. There is also a meeting of the Central Chess Club of the USSR to honour the first space-earth chess match played during the Soyuz 9 flight. Even Spasskiy is there. IMBP has advised the environmental control system for DOS#1 will not be ready in time to support a 5 February launch.
Trainer review with S G Darevskiy. It is estimated that the trainers only meet 25% to 30% of the total training needs of the cosmonauts. In the next year Kamanin wants Darevskiy to exert 75% of his effort on the Almaz simulator, 20% on the DOS-7K, and only 5% on the L3. Mishin wants zero effort on Almaz, 70% on DOS-7K, and 30% on the L3.
Two hour meeting between the VVS leadership and Mishin at TsKBEM. Mishin claims he will fly the N1 to orbit this year, and that it will have a payload of 95 to 100 tonnes to low earth orbit. He wants to make 4 to 5 unmanned launches in 1971-1972, followed by one unmanned lunar flyby, culminating in the first Soviet cosmonaut landing on the moon in March 1973. Afterwards the VVS leaders tour the L3 and DOS-7K mock-ups. Mishin asks - Why won't the VVS support his plan for an Indian Ocean landing for the L3? Why is the VVS against a 30-day duration for the first DOS flight? Why isn't the VVS training engineer-cosmonauts as pilots? Kutakhov replies that these are decisions that have to be made by aviation specialists, not by engineers or chief designers. The General Staff supports the VVS position.
The VVS leadership visits Chelomei's facility at Reutov. Kamanin recalls first seeting the Almaz mock-up five years earlier - it was already fully defined then. But it was only in August 1970 that a resolution was issued setting a firm schedule: Chelomei was to start flight trails in the second half of 1971, and the station was to enter service in 1972. Mishin is proposing to cancel Almaz and build 10 DOS stations instead. Mishin currently supervises five design bureaux, 60,000 workers, and is working on Soyuz, 7K-S, L3, DOS-7K, and a very few other projects. Chelomei has only one design bureau and 8,000 workers. Yet he has produced well-designed, mass-produced cruise missiles for the Navy, over 1,000 ICBM's for the RVSN, and the high-quality UR-500 Proton launch vehicle. Almaz could have flown on time if Ustinov had allowed Chelomei just 10% of the resources he has let Mishin squander on DOS. Chelomei easily agrees with the VVS to a mutual schedule for Almaz crew training, crew composition, etc. The contrast with the argumentative Mishin couldn't be greater.
Kamanin discusses with Kutakhov the need for the VVS to back Chelomei rather than Mishin. As for the Spiral, the support of Dementiev, Afanasyev, Kalmykov, and Zverev have been lined up for the program. But Grechko is still blocking it. And Kutakhov is unwilling to challenge Grechko on the issue.
Keldysh heads a review of spacecraft environmental control system development. The work of the IMBP is not well organised. They have been developing systems for eight years with no concrete results. G I Voronin is responsible for oxygen regenerator and thermal regulation systems; G I Severin, for space suits; O G Gazenko for biosensors, medicines, and space food. Two problems need to be solved: to understand and counter the effects of zero gravity on the human organism; and to develop a reliable environmental control system with a guaranteed life of two to three years. Keldysh declares that in the next five to ten years the Soviet Union will not fly space stations with artificial gravity. Therefore, due to the inevitable deterioration of the human body in zero gravity, crews will have to be rotated every 30 to 60 days. Development must continue with an eye to supporting eventual lunar bases and manned expeditions to Mars.
Beregovoi, Leonov, and Shatalov go to TsKBEM to review the training plan for the DOS-7K station at the KIS (Experimental Control Station) facility. Mishin wants the crew of Soyuz s/n 32 to be working aboard the 'live' spacecraft on 3-4 February, but they need to be at the cosmodrome on those dates for training on the Svinets ICBM detector experiment. This conflicts with Mishin's schedule for availability of a 'live' Soyuz for training. Mishin still wants, completely unrealistically, to launch on the day of the 24th Party Conference.
Three DOS-7K crews are to fly on two Tu-104's to Baikonur on 30 January. The Tu-104's are fitted with the Svinets equipment, which the cosmonauts will use to capture spectral data on two rocket launches. This training will prepare them for use of the Svinets equipment aboard the DOS station. Lots of bigwigs from the VVS plan to tag along as well.
The first DOS station was shipped in to Baikonur in an incomplete state. Work continued to complete it day and night without break. The old MIK at Baikonur was used to prepare the Soyuz launch vehicle and 7K-TOK ferry spacecraft. The station was to be called Zarya, or 'Dawn', but the name was changed just before launch to prevent confusion with the secret Chinese manned spacecraft of the same name. Additional Details: here....
The training session at KIS yesterday was subverted by Shonin's drunkenness. Kamanin investigates the matter all day. Shonin is said to have brought vodka to the KIS and consumed vodka during the session. Kamanin confronted him, but of course he is sober now. Kamanin cannot understand the man, He has known him for eleven years and thought him a competent person.
Kamanin has a meeting scheduled with Chelomei, but this is cancelled and he is called to another meeting with Mishin -- all to advance Mishin's agenda. Mishin complains that he doesn't know what the Almaz project is about. He claims Chelomei has spent half a billion roubles so far, and has nothing to show for it. Mishin, on the other hand, has two DOS stations ready to fly, done at a cost of only 80 million roubles. But Kamanin knows very well who has really wasted hundreds of millions of roubles - Mishin. Mishin produces his plans for DOS#3 and DOS#4 follow-on stations. These are to be copies of Almaz, delivered in 18 months. Mishin says he is building ten 7K-S for the spacecraft, despite the fact that Karas at GUKOS is not interested in manned spaceflight. Afterwards Kamanin tells Kutakhov to warn Chelomei that he must support the VVS' 7K-S and Spiral projects, if he wants VVS support for Almaz.
DOS-7K #1 completed its factory testing on 3 March. Checkout at Baikonur is to be completed by 9 April, and launch is scheduled for 15 April. The first crew to the station will be launched aboard a Soyuz on 18-20 April. Remaining items to be cleared:
Kamanin is still fighting the issue of mission length - he doesn't want to risk lives. Soyuz 9 landed virtually in the laps of the doctors, but what if they had made an emergency landing in the ocean, or taiga? They were in no condition to save themselves before assistance arrived. Every day over 20-22 days is a risk to the life of the crew, in Kamanin's view. Smirnov, Serbin, Mishin - they don't care about this.
Meanwhile the doctor's verdict is in on Shonin. He is to be sent to a sanatorium for rehabilitation.
The space plan for 1971 has finally been approved. There are to be three space stations launched, manned by ten Soyuz launches and a total of over 12 different crewmembers in space during the year. But it is clear to Kamanin that the second DOS and first Almaz station will not really be ready this year. And there won't be more than two Soyuz and two TKS transports available by the end of the year. Ranazomov says that Chelomei's TKS, being designed to fly to the Almaz, will cover many of he same requirements of the Spiral spaceplane. He proposes that Mikoyan should collaborate with Chelomei on Spiral. Meanwhile simulators at TsPK remain underfunded.
A major training session is held with Shatalov, Yeliseyev, and Rukavishnikov. They make a 15 hour simulated 'flight' aboard the DOS trainer from 09:15 to 22:45. All operations expected in a thirty-day mission to the station are gone through. This includes simulation of emergencies to test the reactions of both the crew and ground controllers. Kamanin receives a letter from Anders, thanking him for the tour of Star City. Representatives from the Swedish firm are in town to negotiate the contract for the TsF-18 18-metre radius centrifuge. Both Korolev and Mishin fought against the VVS getting such a centrifuge.
The third, back-up DOS crew of Dobrovolsky, Volkov and Patsayev train in the DOS trainer. All of the crews have made good runs, with no mistakes or failures. Shatalov, after training on the DOS simulator, now supports Mishin's 30 day flight approach. He has also talked to Yeliseyev and Sevastyanov about the matter. He believes there may be a very different reaction to zero-G from individual to individual, and the Soyuz 9 crew may have been the wrong two individuals.
Shatalov's crew arrived at 09:00 aboard a Tu-104 and were ensconced in Room 14 of the Hotel Kosmonavt. Two further Tu-104's arrived 20 and 30 minutes later with the second and third crews. At 18:00 they all went to the MIK assembly hall to view the two Soyuz spacecraft and the station. There were electrical problems with the station, and they finally returned to the hotel at 24:00 without the problem having been resolved. Kamanin notes two films are to be screened tomorrow - a Bulgarian movie and the Soviet film 'Diplomat'.
Due to problems with the electrical system aboard the station, the crews are unable to start their training aboard the actual station until 22:00. So after breakfast they work on their flight plans and logs and test the training suits to be used on this flight for the first time. This includes the Penguin suit which has elastic bands sewn into it to simulate the strain of gravity. At 17:00 the crews go to the MIK and start communications tests on the DOS. All proceeds normally. On the bus back, the crews discuss the new tracking ship Yuri Gagarin. It has a displacement of 45,000 tonnes and cost 120 million roubles. It will expand the time communications are possible with the ground during the long station flight.
There are problems with the Igla rendezvous system and also the stabilisation systems aboard DOS#1. The April 15 launch date is not realistic, according to Shabarov's deputies, although he himself says he can still meet the schedule. From 12:00 to 16:00 the cosmonauts participate in communications tests between the Soyuz spacecraft and the station. They go all right, but there are many problems with the ground segment. Mishin arrives in the evening. He has to give the VPK the final word on 27 March as to the launch date for the station. Shabarov is afraid to tell Mishin about the problems they are having with the Igla system.
The launch date, time, and first mission duration are debated. The VVS specialists now say a night landing by a Soyuz is acceptable from a safety point of view. Only two months earlier they were rejecting the possibility - these are people without principles, in Kamanin's view. He believes the crew's lives will be at risk with the planned thirty day flight duration.
The launch of DOS#1 is set for 15-20 April. The first crew will launch three days later on a thirty-day mission. 25 days after they return to earth the second crew will be launched. That crew will stay aboard for 30 to 45 days. The spaceships and crews are declared ready for both missions.
When DOS#1 was cleared for flight, it still had 182 discrepancies, of which only 10 were duplicates and 20 were purely cosmetic. Preparations for launch of Soyuz 10 were complicated by problems with the logic of the abort system. This was supposed to put the spacecraft in a purely ballistic re-entry mode. Additional Details: here....
Kamanin, the DOS crews, and 40 VVS specialists fly to Tyuratam. VVS medical officers have to battle outbreaks of measles, rabies, and dysentery at the cosmodrome. The crews are medically isolated in the Hotel Kosmonavt. In the evening they watch the film '300 Spartans'.
Shatalov, Leonov, and Dobrovolsky are all working hard on final preparations for DOS-7K. The station is fully complete. Only small defects have been noted. This is the first look by the crews at their future home in space in its fully completed version. On the bus back to the hotel the cosmonauts discuss the poor quality and inedibility of 'space food'.
Nikolayev and others are flying to the cosmodrome. All of the cosmonauts except Volynov will be present for the historic launch of the first space station., the first crew to the station, and the N1 launch planned for 1 May. Kamanin has an argument with the cosmonauts on the necessity of working out on the KTF trainer during the mission.
All of the pressure on the N1 project was going on simultaneously with the launch preparations for DOS#1. The Central Committee had approved the name 'Zarya' (Dawn) for the station, but it was felt that this name might offend the Chinese, who's secret new manned spacecraft was also called 'Dawn' (it is interesting that Chertok and the Soviet space community was aware of this in 1970 - the existence of the nascent Chinese manned space project of that name was not revealed publicly in the West until 2002!). After some hurried consultations, it was decided to give the station the public name 'Salyut' (although the vehicle rolled out to the pad still had 'Zarya' emblazoned on the payload shroud -- but these pictures were not revealed until the 1990's).
Marshal Grechko has sent a telegram to Kamanin, informing him that the Gagarin Cosmonaut Training Centre has received the Order of Lenin. The UR-500K booster is mated to space station DOS-7K#1. Chelomei is ill. Mishin takes the opportunity to insult him by replacing Chelomei with Mishin's man on the commission that will judge the UR-500's readiness for launch. Nevertheless, the commission clears the booster to be moved out to the pad on 15 April, with launch set for 19 April at 06:40. In the evening Beregovoi's 50th birthday is celebrated.
The Proton booster is erected on the pad. The decision is made to proceed despite a prediction of 15 m/s winds -- the prediction turns out to be wrong. All of the big brass are present for the rollout. Afterwards Mishin visits the cosmonauts. He says all is ready for the first space station mission, and promises them the N1-L3 will be available soon for lunar missions.
The Salyut station was prepared in a huge two story bunker built for launch vehicle / payload processing. The contrast between the money lavished by the military on this facility for Chelomei's projects and the limited funds available for a proper N1 preparation and test facilities was enormous. Here funds were available without limit. The air was controlled by a self-contained environmental control system with its own independent electrical-diesel generators. The facility was a miracle. It was shocking that this was made available for Almaz, while the military told Mishin that he would have to prepare the immense MKBS station in the uncontrolled environment, subject to frequent power blackouts, of the N1 facility. At Chelomei's facility, everything was completely checked out on earth prior to launch.
First manned space station. Salyut 1 included a number of military experiments, including the OD-4 optical visual ranger, the Orion ultraviolet instrument for characterising rocket plumes, and the highly classified Svinets radiometer. Primary objectives included photography of the earth, spectrographs of the earth's horizon, experiments with intense gamma rays, and studying manual methods for station orientation.
At 05:20 the State Commission and their guests arrive at the Area 95 observation point to view the launch. The booster takes off on schedule at 06:40 in light rain and 60 km/hr wind. The tracking station reports good orbital insertion, separation from the third stage, and antennae and solar panel deployment. But the cover of the scientific equipment bay does not separate. This will mean that many experiments cannot be accomplished. It is decided to launch the crew to the station anyway, since the station is otherwise functioning normally. The cosmonauts go to the baths in the evening. Additional Details: here....
Six of eight fans in the ECS have failed. There are only two back-ups, which are not enough for the 90-day active mission life planed. But it is decided the problem could actually be failed sensors, and in any case the first crew can easily repair the fans. At 17:00 the State Commission meets publicly (radio and television coverage) to approve the launch of Soyuz 10. Launch is set for 22 April at 03:30.
Soyuz 10 approached to 180 m from Salyut 1 automatically. It was hand docked after faillure of the automatic system, but hard docking could not be achieved because of the angle of approach. Post-flight analysis indicated that the cosmonauts had no instrument to proivde the angle and range rate data necessary for a successful manual docking. Soyuz 10 was connected to the station for 5 hours and 30 minutes. Despite the lack of hard dock, it was said that the crew were unable to enter the station due to a faulty hatch on their own spacecraft. When Shatalov tried to undock from the Salyut, the jammed hatch impeded the docking mechanism, preventing undocking. After several attempts he was unable to undock and land. Additional Details: here....
The Soyuz 10 crew receive awards at the Kremlin. Rukavishnikov is made a Hero of the Soviet Union, which means he will receive 5,000 roubles, a Volga automobile, and other privileges. Kamanin calls Mishin later in the day. Mishin wants to send up a two-man crew in Soyuz 11, in space suits. One of them will make a spacewalk to examine the docking collar on the Salyut station prior to docking and remove the cover from the scientific sensor bay. Kamanin is infuriated. Seven to eight months ago the VVS had asked Mishin about the possibility of carrying at least one spacesuit aboard the Soyuz or Salyut and the possibility of making an EVA. He categorically rejected the idea. At that time he said it was practically impossible. There are insufficient oxygen reserves aboard the station for a full depressurisation. It would reduce the oxygen to a 75-day supply, and 45 to 50 days worth of reserves are required by mission rules. A cosmonaut meeting is called to discuss the matter. This reveals that DOS#2 is planned to have spacesuits and all of the equipment necessary for an EVA. But an EVA on Soyuz 11 is not possible. There EVA equipment and have not been manufactured. Two to three months would be required to fabricate the suits and equipment and to train for the EVA. Salyut 1 can only last 60 to 70 days. A Soyuz 12 mission in the first part of June could not be ready for an EVA. All in all it would be better to incorporate the EVA hardware into the first mission to a new DOS#2 station.
At 10:00 the Soyuz 10 crew has the traditional post-flight meeting with the Central Committee, followed by speeches at 15:00 before the workers and engineers at TsKBEM. The truth about the flight is not revealed. Mishin is still pushing for an EVA on Soyuz 11; Kamanin tells him the idea is absurd. Kamanin fumes that Mishin still hasn't reliable solved the problem of automated space docking, on which he began work in 1962.
Frolov reports to Kamanin on a meeting of the general designers. Mishin has planned the Soyuz 11 launch for June, to be followed by Soyuz 12 in July. The reworked docking mechanism will be ready for installation on Soyuz 11 by 18 May. Mishin recommends a full automated docking for the next mission.
Mishin guarantees to Smirnov that Soyuz 11 will be able to dock to Salyut 1. He also promises thirty-day missions for both Soyuz 11 and Soyuz 12. But there is a problem with this last promise -- Soyuz 12 won't launch until 15-18 July, which will be after the guaranteed life of the Salyut 1 station. Kamanin protests the decision. Smirnov points out that they must fulfil the resolutions of the Communist Party without question. But he reassures Kamanin that they will take everything one step at a time, keeping the safety of the crew in mind. Kutakhov also does not support the decision, but orders must be followed.
The crews are continuing training for Soyuz 11. Mishin expects launch on 6 June. He is not opposed to limiting the flight duration to 25 days, necessary in order to make a landing in daytime at the end of the mission. Kamanin doesn't trust this change of heart - he asks the VVS ballistics section to confirm Mishin's calculations. Feoktistov visits Kamanin. He wants to be on the fourth crew to fly to DOS#2. VVS ballistics calls back. A launch as late as 11-12 June would still allow a daytime landing after 25 days. However from day 6 to 24 of the flight retrofire would be on the night side, and could only be accomplished using the technique of Soyuz 10 - aligning the spacecraft on the day side, spinning up the gyro platform, and using the gyros for night-side orientation during retrofire. At a meeting of the Central Committee, Kamanin fights with Ustinov for the safety of the crew. After a three-hour debate the majority of those present are still worried about the reliability of the docking system. But nevertheless the decision is made to proceed with Soyuz 11.
The Salyut crews arrive at Tyuratam and see the new reinforced docking system for the first time. Then they go to Area 2 to prepare their flight plans. Aferwards they train from 20:00 to 24:00 aboard Soyuz 11. But due to the parallel work on revising the Igla system, the systems are not all updated yet. The cosmonauts have no confidence in the new system, and can only say they 'probably' have a better chance of success in docking than before.
Kamanin is advised that the atmosphere aboard Salyut 1 is now all right. He finds the news disturbing, since he was not informed until then that there was a problem! Feoktistov outlines the modifications made to Soyuz 11 compared to Soyuz 10 to the cosmonauts. The reinforcement of the docking ring system has added 10 kg to the spacecraft. Consumables are carried that increase the time for autonomous flight from three to four days.
The review of launch preparations veers off into a discussion of what the booster was now for. Pilyugin questioned the seriousness of intent of the TsKBEM staff. The digital control system priorities within the bureau were with DOS and Almaz -- why wasn't the N1-L3 the priority? Mishin had never been told that the N1-L3 development was lagging. It had no priority with the leadership. Top priority at TsKBEM was Nadiradze's solid propellant ICBM's, followed by the DOS Salyut station, and now Soyuz-Apollo preparations. Meanwhile it was finally recognised that a single-launch scenario was simply impossible, and two N1 launches would be needed to accomplish the lunar landing. But there was no political will to tell the Politburo the bad news -- that two N1's would be needed to be launched to accomplish the landing. The final conclusion was that the bureau needed a new direction, a project with national priority, like the DOS station. Strategic rocket work could be ruled out, as there were already too many players in that field. Additional Details: here....
A joint meeting of the Soyuz 11 State Commission and Soviet of Chief Designers takes place at Yevpaptoriya at 07:00. Aboard Soyuz 11, the Igla automatic rendezvous and docking system is switched on when the spacecrafft is 7 km from Salyut 1. There is no manual intervention in the process; Dobrovolsky simply makes reports to the ground of the rendezvous and docking system's progress. Docking itself takes place out of tracking range. There is considerable suspense in mission control during the 90-minute wait until reacquisition. Before leaving radio contact, telemetry showed a signal that the docking mechanism had depressurised, which would have prevented the cosmonauts from opening the hatch and entering the space station. But when the station comes back in view, it turns out that all went normally and the crew has already entered the station. Patsayev entered first, turned on the air regenerator, and replaced two failed fans. The crew report that the station atmosphere is unpleasant, with a strong burned smell. It will take 20 hours for all of the air in the station to cycle through the ECS scrubbers, so the crew is told to spend the first night aboard their Soyuz.
When the crew awakes, the station air is all right, and all eight fans and filters of the ECS are operating. Soyuz 11 is powered down and put in storage mode. The crew begins the DOS work program. But they have not yet put on their Penguin training suits and are not yet following the exercise program. Clearly, they are not taking the necessary steps to adapt to zero-G and preserve their health for their return. They take control of the station for the first time, making an orbital correction manoeuvre, and then orienting the station and its solar panels fully toward the sun. The world press is full of the great news of a new Soviet victory - the first station in space.
Crews are formed for six Soyuz (Kontakt?) flights. Soyuz s/n 18 - Filipchenko and Grechko; Soyuz s/n 19 - Lazarev and Makarov; Soyuz s/n 20 - Vorobyov and Yazdovsky; Soyuz s/n 21 - Yakovlelv and Porvatkin; Soyuz s/n 22 - Kovalyonok and Isakov; Soyuz s/n 23 - Shcheglov and [illegible]. Five crews are training for Salyut flights: Crew 1, Leonov, Rukavishnikov, and Kolodin; Crew 2, Gubarev, Sevastyanov, and Voronov. TsKBEM engineer cosmonauts are to be selected will round out the last three crews, but VVS members will be: Crew 3, Klimuk, Artyukhin; Crew 4, Bykovskyy, Alekseyev; Crew 5, Gorbatko. Leonov and Gubarev will have their crews fully ready for Soyuz 12 by 30 June, for a launch date between 15-20 July. Leonov is asking to go to East Germany for two to three days in the first week of July. Kamanin is fully opposed to this - he is thinkng not of his upcoming flight, but the exhibition of his paintings at the Prezdensk Gallery!
Kamanin is to fly back to Yevpatoriya in the afternoon. Chelomei is often ill lately -- Mishin is using the opportunity to lobby Ustinov and Smirnov to kill Almaz, and increase the DOS-7K order from four to ten. Mishin killed Kozlov's Soyuz VI in a similar manner. Prior to his departure, the cosmonauts brief Kamanin on the results of the visits of Popovich and Sevastyanov to France, and Khrunov to the USA. Kamanin is having trouble with the leadership in allowing Volynov to be assigned to another crew.
As Kamanin is on the way to the airport, a serious situation develops aboard the station. At 13:00 the cosmonauts report a strong burning smell, and smoke in the station. The crew evacuates the station and retreat to the Soyuz lifeboat. Forty minutes later, just as Kamanin is boarding the Tu-104, Shatalov reports that the mission will continue, but the situation aboard the station is not comfortable. The crew has turned off the primary oxygen regenerator and exchanged the filters of the oxygen supply and reserve regenerator. At 14:05 Kamanin finally boards the aircraft, which takes off and sets course for the Crimea. At 14:30 they are ordered to turn around and land at Chkalovksy Airfield outside Moscow. The whole thing turns out to be a banal mistake by one of the officers at an air traffic control station! They lose two hours in the process. No information is available when the Tu-104 finally lands at Saki, since Nikolayev and the other cosmonauts who attended the emergency meetings had taken off to return to Moscow three hours earlier. Kamanin finally arrives at Yevpatoriya at 23:00, in time for a comms session with Dobrovolsky and Patsayev (Volkov is sleeping). The Soyuz 11 crew reports that the training suits are very tiring. Dobrovolsky reports all is now normal otherwise. He requests permission to continue the flight. Bykovsky reports that the situation on the station is now stable. There is no more smoke or burning smell, but the crew has been overloaded in the last six hours. They have done a lot of work with no food or rest. The situation was so bad at one point that preparations had been made for undocking the Soyuz for an emergency return to earth.
At the 08:00 comms session Volkov is on duty, while Dobrovolsky and Patsayev sleep. Kamanin notes that to Volkov everything in his account of the previous day's emergency is 'I' - 'I' decided, 'I' did, etc. Mishin expresses his opinion that the flight commander must make all the decisions; to which Volkov answers 'the whole crew decides things together'. The tracking team, however, considers him too independent and emotional, a person who won't recognise or acknowledge his errors. The State Commission meets at 11:00 and decides there is nothing to prevent the mission continuing. However it is decided to shut down all scientific equipment. They will be turned back on one by one in an attempt to find the origin of the burning.
The crew makes a five minute television transmission. The telescope in the background produces dissonance in the image. Kamanin calls Mishin at Tyuratam, where the N1 is being prepared for launch. There are delays, and the launch must be moved back two days to 22 June. Kamanin tells the crews that this means there will be no good opportunity for them to observe the launch from the station with the Svinets apparatus, as was planned. Meanwhile the electrical specialists and Chertok in Moscow cannot localise the electrical problem. All of the equipment aboard has been turned off and on, and the burning simply does not occur again. Meanwhile there are concerns that Soyuz 11 may be able to reach the desired mission length, but that Soyuz 12 may not be safe to fly by its launch date. The mission is still planned for the full 30 days, but the physical training program has not been followed due to the problems and breakdowns aboard the station, requiring the cosmonauts to spend a lot of time in unplanned repair activities. The physicians are not in favour of prolonging the flight.
The Soyuz 11 crew completes their 1000th revolution of the earth. Gorbatko jokes that they are 'go for 2000' but the crew is not enthusiastic. Kamanin does not believe they have more than 10 or 11 days endurance left in them. Clear problems exist: the Penguin training suits do not adequately replace gravitational effects (they have suffered torn elastic bands); the measured lung capacity of the crews has declined from 300 on the first day of the flight to 200 now; use of the treadmill caused the whole station to vibrate alarmingly and was discontinued (the solar panels flapped, the propellants sloshed in the tanks, and the noise of the track couldn't be kept out of the rest areas). The weather is very poor in the prime recovery area for the last two days - 20-25 m/s wind - dangerous for landing.
The crew sets a new world endurance record in space. Overnight they conduct another successful Svinets experiment, this time observing the launch of a solid propellant missile. The crew seems alert and in good shape. The Landing Commission confirms landing for 30 June, but now 200 to 250 km south-west of Karaganda. The medical teams will be prepared for all possible situations. There are bitter arguments within the commission as to the current and likely condition of the crew.
The crew has completed all scientific and technical experiments aboard the Salyut station. They will spend the last two to three days concentrating on physical training, medical observations, and preparation for landing. They will turn off all station equipment not required for autonomous flight, prepare the Soyuz for landing, and measure the water and consumable reserves available for the next crew. The experiments have produced many film cartridges, experiment samples, and so on that should be returned to earth. However there is not enough space or mass reserves in the Soyuz capsule for them all so they are only to return those specifically listed by ground control.
The shocking news of rocket engine designer Isayev's premature death is received at the Soyuz 11 control point at Yevpatoriya. This is followed by the news that the third N1 failed 57 seconds into its flight. A total of 13 N1's were built, and all three launched so far have exploded. Kamanin agreed to cancellation of the entire project three years ago, but Ustinov, Smirnov, Keldysh, and Mishin continued in their grandiose charade, wasting billions of roubles in the process. Meanwhile on the 22nd day of Soyuz 11's flight, the crew is up and about. Volkov is especially active, which should improve his readaptation when he returns to earth.
The cosmonauts have to be extremely careful in putting Salyut in storage mode. They go through the checklist together with the ground to make sure no errors are made. The Salyut station is much more comfortable than the Soyuz, but the mission has revealed it needs many improvements, including: a unit for ejecting liquids from the station; solar panels, and scientific instruments, that can be automatically pointed at the sun or their target and stabilised; an improved control section; better crew rest provisions. Only with such improvements will it be possible to make flights of two months or longer. And such flights will take ten years to work up to, not by the end of the year, as Mishin claims. Kamanin thinks it will be possible to prolong flights to 40 to 60 days in 1972, but that this will then be a long-standing record. Any longer would be equivalent to running 100 km but then collapsing and dying - the Soviet Union doesn't need those kind of records!
The bigwigs arrive from Moscow to be in on the landing. But Afanasyev, Keldysh, Mishin, and Karas all remain at the cosmodrome for the investigation into the N1 failure.
Big dramas are being played out at the cosmodrome over the N1 failure, but Mishin seems protected by someone very high up and is untouchable in the blame game. This is the last full day aloft of the Soyuz 11 crew. At 19:30 the State Commission at the command point authorises the Soyuz 11 crew to undock from the Salyut space station. A communications session begins on the 15th orbit of the day at 19:45. Dobrovolsky and Volkov confirmed that the station was completely mothballed, all material to be returned was stowed in the Soyuz capsule, the crew was wearing their anti-G suits, and had completed shut-down of the station. Yeliseyev advised the crew that ground telemetry showed that they had not turned on the noxious gas filters in the station. Volkov argues that this must be a ground control error, but after checking admits the crew made a mistake.
After the crew has left the station, taken their seats in the capsule, and closed the hatch between the Soyuz BO orbital module and SA re-entry capsule, the strained voice of Volkov comes from space: 'Hatch not hermetically sealed? What's happening? What's going on?'. All this response to the fact that the caution and warning panel 'Hatch open' light has not gone out. Yeliseyev calmly advises the crew, 'Don't panic. Open the hatch, and move the wheel to the left to open. Close the hatch, and then move the wheel to the right six turns with full force'. The crew does this several times, but the light still won't go out. On a final attempt, with 6.5 turns of the wheel, the light goes out. On the second half of he 15th orbit, the crew lowers the pressure in the BO to 160 mm, and the hatch proves to be air-tight.
On the 16th orbit the crew separates their Soyuz from the Salyut station. At 21:35 they report normal separation and that they 'can see how the station moves away from the spacecraft'. They have enough propellant to stop the separation velocity, and take photographs of the station from 10 to 15 m away. They then back away to 30-40 m, and Patsayev takes another set of photographs documenting the condition of the station.
Salyut 1 was kept aloft to study how the systems behaved over an extended period, in order to identify fixes to improve their reliability on later flights. The station was originally designed to last three months. During the extended period fuel consumption and the ballistic and drag characteristics of the station were determined. Use of the reaction control system became difficult after an electrical failure in early October. Georgiy Degytyarenko recommended to Mishin that the station be deorbited safely into the Pacific Ocean without delay before complete control was lost. Mishin agreed and the signal was transmitted from Yevpatoriya on 10 October. The same procedure was followed for all subsequent stations except Salyut 7 (where control was completely lost).
