Soyuz VI / OIS

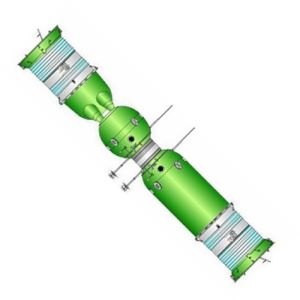

Mishin's version of Soyuz VI with OIS light space station (conceptual drawing based on description).
Credit: © Mark Wade
AKA: 11F732;7K-S. Status: Operational 1974. First Launch: 1974-08-06. Last Launch: 1976-11-29. Number: 3 . Thrust: 3.92 kN (881 lbf). Gross mass: 6,800 kg (14,900 lb). Specific impulse: 305 s. Height: 7.48 m (24.54 ft). Span: 10.00 m (32.00 ft).
These were cancelled, but the 7K-S continued in development as an improved version of Soyuz for solo and space station ferry missions. Unmanned tests were made of the 7K-S, but the solo version was cancelled. The design, after further extended development, evolved into the Soyuz T and Soyuz TM ferry vehicles flown to the Salyut 7, Mir, and ISS space stations.
The Soyuz 7K-S had its genesis in military Soyuz designs of the 1960's. These were cancelled in February 1970. The Soyuz 7K-S, however continued in two parallel designs - the base variant, which was for special-purpose military solo missions; and a space station transport variant 7K-ST. The revised designs for the 7K-S were completed on 11 August 1972. The initial Soyuz 7K-S program was to consist of four unmanned, followed by two manned test flights, then two operational launches. The draft design for 7K-ST space station transport version was completed in August 1974.
Following the fourth N1 launch failure, a major reorganization of Soviet space enterprises was undertaken. The 7K-S was cancelled; experiments planned for the solo flights were transferred to the Salyut program. However the first three test vehicles had been completed and were launched unmanned as technology tests. The Soyuz 7K-ST transport project continued, except now being redesigned for a crew of three. The 7K-ST, following extended development, would eventually fly as the Soyuz T and Soyuz TM ferry to the Salyut 7 and Mir space stations.
In December 1962 Sergei Korolev released his draft project for a versatile manned spacecraft to follow his 3K Vostok. The 7K Soyuz-A was primarily designed for manned circumlunar flight. However in order to obtain military support for the project he proposed two additional modifications: the Soyuz-P (Perekhvatchik, Interceptor) space interceptor and the Soyuz-R (Razvedki, intelligence) command-reconnaissance spacecraft. The VVS and the Strategic Rocket Forces supported these variants of the Soyuz. But Korolev had no time to work on what were to him Soyuz 'side-lines'. Therefore he decided that while OKB-1 Kaliningrad would concentrate on development of the Soyuz-A circumlunar spacecraft, the military projects would be 'subcontracted' to OKB-1 Filial Number 3 in Samara, headed by Chief Designer Dmitri Ilyich Kozlov. Both spacecraft would ultimately be cancelled and replaced by projects of Korolev's competitor, Chelomei. However Kozlov was entrusted with development of yet another military Soyuz, the 7K-VI 'Zvezda', in October 1965.
Initially Kozlov followed his instructions and the 7K-VI was not very different from the OKB-1 Soyuz 7K-OK. But in the beginning of 1967, in reaction to a huge number of failures on the first flights of the Soyuz, Kozlov decreed a complete revision of the design. The new version switched the positions of the Soyuz descent module and the orbital module. The descent module was now at the top of the spacecraft. Behind the seats a hatch went through the heat shield to the cylindrical orbital section. Nuclear radioisotope thermal generators (RTG's) replaced the solar panels.
Design was completed, construction was underway, and cosmonauts in training for 50 planned flights between 1968 and 1975. By August 1967 Kozlov was predicting first flight of the VI in 1968, with the first all-up operational flight in 1970. But the Chief Designer of OKB-1, Vasiliy Pavlovich Mishin, strongly disagreed with the Zvezda design. The USSR Defense Ministry issued a requirement for an "Orbital Research Station" (OIS) in March 1967. Using this as the basis, on 13 October 1967 Mishin began his efforts to take over Kozlov's VI program. His staff in Kaliningrad felt that Kozlov had insulted them by redesigning the VI to rectify the 'defects' of their Soyuz 7K-OK design. They were also fundamentally opposed to the use of radio-isotope power sources, and raised interminable objections about the hatch cut into the heat shield.
In the place of Kozlov's 7K-VI Mishin proposed an OIS consisting of a separately-launched orbital block and a transport Soyuz. This was the exact same concept as Kozlov's cancelled Soyuz-R system, but using Kaliningrad spacecraft in the place of Samara spacecraft. In a November 1967 meeting with Kozlov, Mishin demanded the abandonment of Kozlov's 7K-VI project. Kozlov rejected this and subsequently attempted to recruit Kamanin to his cause. It was all for naught; through various complex machinations Mishin seized control of the project on 8 December 1967. Mishin's revised project was reaffirmed in May 1968.
Mishin's 11F730 Soyuz VI consisted of on orbital block 11F731 OB-VI and a transport spacecraft 11F732 7K-S. The Soyuz would have a crew of two, a probe-drogue docking system and an internal transfer tunnel. It was proposed that two versions of the 7K-S could conduct autonomous flights for military projects. These versions were the 11F733 7K-S-I for short-term research and the 11F734 7K-S-II for longer flights. For resupply of the orbital stations a payload transport craft 7K-SG 11F735 was proposed (This was an ancestor of the Progress spacecraft used to resupply Salyut and Mir space stations).
Mishin's Soyuz VI would be launched for a 30 day mission into a 51.6 degree orbit at 250 x 270 km, and would use solar panels in the place of the nuclear power sources. The orbital block of the OB-VI would have 700 to 1,000 kg of specialized and scientific instruments. Chief Designer for the 11F730 was K D Bushuyev, with veteran spaceplane designer P V Tsybin assisting.
Using Kozlov's groundwork, the draft project OIS 11F730, was issued by TsKBEM and Filial 3 jointly on 21 June 1968. Design materials for the 11F732 7K-S spacecraft were issued on 14 October 1968. In 1969 complete drawings were released for the OIS project including those for the spacecraft 7K-S, 7K-S-I, and 7K-S-II.
It was singularly noticeable that relatively little effort was expended on the OIS by Mishin. Despite his desire to take the project from Kozlov, his bureau was too preoccupied with the L1 and N1-L3 lunar programs and improvement of the 7K-OK after the Soyuz 1 disaster. Nevertheless by 1968 the cosmonaut group in training for the OIS included Aleksei Gubarev, Yuri Glazkov, Vyacheslav Zudov, Eduard Stepanov, Gennadiy Sarafanov, Aleksandr Kramarenko, Leonid Kizim, Aleksandr Petrushenko, and Mikhail Lisun.
At the time of the cancellation of Kovlov's 7K-VI project Mishin promised that the first OIS would be launched in 1969. This was based solely on convincing the military that he could beat Kozlov's 1970 date. Yet by May 1969 Kamanin's diary indicates there was no chance of launching an Almaz or Soyuz VI until 1972. At best no more than seven solo military flights of the Soyuz 7K-S could be expected before 1972.
In December 1969 it was decided that Chelomei would hand over unfinished spaceframes of Almaz stations to Mishin for completion as Salyut DOS-7K space stations. The OIS was cancelled in February 1970 in recognition that it would be available no earlier than the more-capable Salyut or Almaz stations. The Soyuz-VI cosmonaut group was incorporated into the Almaz training group.
The Soyuz 7K-S, however continued in two parallel designs - the base variant, which was for special-purpose military solo missions; and a space station transport variant 7K-ST. The revised designs for the 7K-S were completed on 11 August 1972. The initial Soyuz 7K-S program was to consist of four unmanned, followed by two manned test flights, then two operational launches. Cosmonauts (among them Lyakhov and Voronov ) were assigned to the project in 1973. A State Commission was formed on 21 June 1974 to oversee the flight tests. Meanwhile the draft design for 7K-ST space station transport version was completed in August 1974.
Immediately thereafter, following the fourth N1 launch failure, a major reorganization of Soviet space enterprises was undertaken. Mishin was fired as head of the former OKB-1. After Kozlov turned down the job, Glushko was made head of a newly formed NPO Energia, combining OKB-1 and Glushko's Energomash engine OKB. The 7K-S was cancelled; experiments planned for the solo flights were transferred to the Salyut program. The launch escape system for 7K-S had completed development in 1968 - 1972 and was first used for Apollo-Soyuz Test Project flights.
At the time the Soyuz 7K-S was cancelled, the first test vehicle was already at Baikonur being prepared for launch. The first three were launched unmanned as technology tests - Cosmos 670 (7K-S No.1), Cosmos 772 (7K-S No.2), and Cosmos 869 (7K-S No.3). These were the first Soviet manned spacecraft designs to fly with a digital computer.
The Soyuz 7K-ST transport project continued, except now being redesigned for a crew of three. The 7K-ST would eventually fly as the Soyuz T and Soyuz TM ferry to the Salyut 7 and Mir space stations.
Crew Size: 2. Habitable Volume: 9.00 m3.

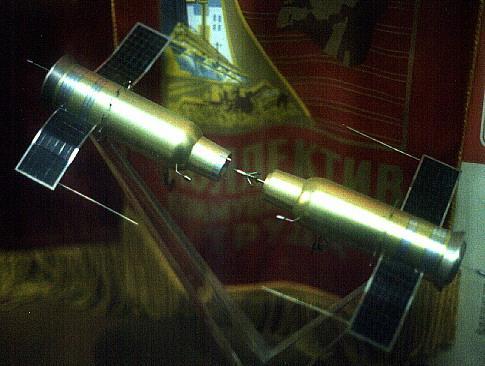

Kosmos 186/188 docking. Soyuz-R and OIS would have had a similar appearance.
Credit: © Mark Wade
Credit: Manufacturer Image
1. Military research ship (e.g. 7K-VI)
2. Transport ship to the station "Almaz" (e.g. 7K-S)
3. MKBS multipurpose space base station (preliminary project) - specification requirements.
4. "Procyon" - Draft Project - classified (interesting unidentified military project)
5. Block "D" - (full responsibility) - including experimental work. (Mishin Diaries 1-219)
The Chief Designer of OKB-1, Vasiliy Pavlovich Mishin, strongly disagreed with the Zvezda design. In the place of Kozlov's 7K-VI Mishin proposed an OIS consisting of a separately-launched orbital block and a transport Soyuz. This was the exact same concept as Kozlov's cancelled Soyuz-R system, but using Kaliningrad spacecraft in the place of Samara spacecraft.
Mishin is away on 'cure' for his drinking problem. A 'Podlipki Soviet' is held at TsKBEM. The issue is cancellation of Kozlov's 7K-VI military Soyuz. Bushuyev, Chertok, Okhapkin, Feoktistov are in favour of cancelling it. Opposed are Karas, Shcheulov, Kostonin, Gaidukov, and the various military representatives at the meeting. It was now six years since OKB-1 was required to put a military manned spacecraft into space - and, factually speaking, nothing has been done. Military experiments proposed for each manned flight by OKB-1 to date had been rejected on various grounds - no weight, no space aboard the spacecraft. Good progress has been made with Kozlov's VI and Chelomei's Almaz - now they've managed to kill the VI, and Mishin and Kerimov are constantly denigrating Almaz (saying it is too heavy, and unsuited for the purpose). The whole thing is a replay of the LK-1 situation. In 1963, a resolution was issued to send a Soviet man around the moon. Instead, after two years of development, Korolev managed to get Chelomei's LK-1 lunar spacecraft cancelled, and started all over with his own L1. Additional Details: here....
The training for the Soyuz 4 and 5 flights was completed last night. Today the crews undergo medical tests and start preparation of their flight logs/flight plans. On the return flight to Moscow Shatalov, Beregovoi, Severin, Kamanin, and Mnatsakanian get into a heated argument. The cosmonauts attack Mnatsakanian's Igla automated docking system. It limits docking manoeuvres to periods when the spacecraft are flying over the Soviet Union due to the requirement for ground stations to receive live television. The Americans worked only on the Apollo spacecraft for the last two to three years, while the Soviets have divided their efforts on no less than five spacecraft types: the L1, L3, Soyuz, Soyuz VI, and Almaz. This is all Mishin's fault...
Afanasyev met with the Chief Designers - Pilyugin, Ryazanskiy, V Kuznetsov, and Chelomei's Deputy, Eydis. Mishin was 'sick' and Chelomei had sent his deputy, as usual, to avoid having to meet Mishin. Afanasyev started with the demand that an Almaz flight take place within less than two years, before the end of the Eighth Five Year Plan. He asked Eydis to install an Igla passive docking system to permit docking with the station of the existing Soyuz 7K-OK as opposed to the planned 7K-S. If Chelomei's bureau could not meet this requirement, then the 'conspirator's' DOS project could be authorised in its place. Additional Details: here....
Kamanin notes that interest of the leadership in manned spaceflight has collapsed with the end of the moon race. Brezhnev has declared that his primary interest is in earth orbital space stations. Both Mishin and Chelomei have stations in development, but the work is progressing slowly. There will be no launch of either of their projects until 1972 - which means the Soviets will be beaten by the US Skylab. Kamanin believes the Americans can never be beaten in space unless all space projects are guided firmly by a single Ministry of Defence and Civilian Space office. Meanwhile the Hong Kong flu epidemic is hitting many at the cosmodrome - Moroz, Popovich, and Bykovsky are all seriously ill.
Brezhnev orders a cooperative crash program to build a civilian space station to beat Skylab into orbit. The civilian station (later named Salyut) will use the Almaz spaceframe fitted out with Soyuz functional equipment. Mishin's OIS military station was cancelled and Chelomei's Almaz would continue, but as second priority to the civilian station. The Soyuz 7K-S station ferry, the 7K-ST, would be revised to be a more conservative modification of the Soyuz 7K-OK. The OIS cosmonaut group was incorporated into the Almaz group.
Complex number 1
1. Improving N-1 (Increase thrust, increase reliability and survivability, operational testing).
2. Improving upper stages G, D (performance, reliability and survivability, operational testing).
3. Development of DM with operational testing.
4. Development of standardized units of Stage S (Sr, Sr-L3M et al.).
5. Development of block N.
Complex number 2
1. DOS 7KT - series production.
4. L3M - (SA, LPU, PAO)
5. SA reentry vehicle reusable. (Mishin Diaries 2-348)
TsKBEM was given a completely new structure as a result of the findings of the expert commissions on the disasters for the previous year, Mishin remained as the Chief Designer for the organisation, but each programme now had its own chief designer:
"1. Klyucharev VM: Omsk plant (Director Kolupaev) - Delayed production of 7KS living compartments. ZEM - develop work and schedules to recover schedule for completion of 7KS modules. 2. Chertok: 7K-OK number 18 - rework using the proulsion system from number 36. Work on "Kontakt" to continue, as it can be used in the MKBS'.
The leadership is not returning Mishin's calls and he considers alternate approaches to accelerate the space program. For study:
1. Increase the payload for the launch vehicle for the 7KST by modernizing Block I by using the 11D58M engine.
2. OB-7KST - New arrangement with the container in front (and for scientific and military research equipment).
3. Work out our technical policy for DOS 7KT in a given situation.
- Spacecraft numbers 34, 33, 35 - maybe defer some of them to DOS-3.
- As was provided for in this case in ZEM plan for 1972
4. Utmost acceleration of 7KS.
5. N1-L3 in this situation - a general solution. All for a successful operation. (But we need to agree with MOM.)
6. Accelerate work on MOK - MKBS 1st step. (Mishin Diaries 2-370)
The Soyuz 7K-S had two parallel designs - the base variant, which was for special-purpose military solo missions; and a space station transport variant 7K-ST. The Soyuz 7K-S program was to consist of four unmanned, followed by two manned test flights, then two operational launches.
Principal basis for the development of the MOK
1. Providing solutions in targeted areas of defense, science and the economy as they may change over 10-20 years. Enabling rapid replacement of legacy systems, devices and components by more sophisticated systems without changing the logic of construction of the MOK as a whole and its constituent satellite systems and basic modules.
2. Solution targets a minimum number of satellite modules using common equipment and apparatus.
3. Complex solution of defense, economic and scientific problems using MKBS - the main base of the MOK, for logistics and maintenance of a long-term operation and cost-effective transport system.
4. The modular structure of the MOK. Wide standardization, harmonization of systems, devices, compartments, aggregates. All elements of these systems, devices, units must be maintainable and interchangeable.
5. Ensuring long-term service life (5-10 years) of the MOK through periodic visits CM astronauts for routine maintenance, based on the MKBS.
6. MOK should provide the most cost-effective creation of rocket-space tools for addressing the full range of targets, most cost-effective organization of logistics, maintenance and management of the complex in comparison with existing systems. The development of the IOC should be considered as the direction of development of rocket and space technology to solve national problems with the least material costs.
7. Stages of creation MOK as the development and creation of the necessary special systems.
And receives the following criticisms:
1. All elements of MKBS (especially spacecraft based on the 7KS) must have the new layout of systems and equipment, providing repair and replacement.
2. GP Melnikov - MKBS is necessary, but give priority to modules SM-1 and SM-2 (these are specialized military free-flyers).
3. You need to rethink the section on handling scientific information.
4. Do we need to upgrade or add all these launch sites (R-7, UR-500 and N-1) for MOK (especially the UR500K launch complex)? VP Barmin offers not to upgrade the old UR-500 launch complexes, and spend those funds on new complexes (in fact these two additional UR-500 complexes would be the only ones built after the N1 / MKBS cancellation).
5. You need a special decision of the Central Committee of the CPSU and special funding for construction.
6. Which launch vehicles to implement the MOK.
ND Ustinov suggests use of the UR-500 with a fluorine-ammonia upper stage to launch the SNTV direct television broadcasting system (Mishin Diaries 3-104)
1. Now, when considering our long-term program and the use of near-earth space (including the Moon) for different purposes, it is necessary to clearly define the sequence of its implementation.
Especially decide - where to start? (Especially in the present situation).
- It is necessary as soon as possible to show the rationality inherent in the program guidelines.
Namely a space-based MOK.
- Optimal location for OAA systems: based on MKBS (DOS) - or visited the MPM for routine maintenance or brought near-MKBS for the same purpose.
- Reusable transport ship based on the 7M, and then a reusable transport system based on the work on the N-1 (but with a new engine system in stage 1).
- Space problems solved by the OAA.
- A great resource. (even after these events)
Where to start?
1. DOS 5 (6?) + 7KT + 7KTT + 7KS-OR
7KS-OR (evidently a reconnaissance version of the 7KS) - view as the embodiment of the most efficient use of the developed equipment (Zenit-Yantar)
Negotiations with DI Kozlov (What does he want?)
2. All that in the first only on the basis of the 7M, to create the MTK and MPM (talks with EV Shabarov)
What will branch NII-4 handle?
1. Operative follow-up exploration.
2. Armed struggle in outer space.
3. The defeat of the moving targets.
4. Electronic countermeasures
5. Use of stationary orbit.
6. Use of of sun-synchronous orbits.
Filial of NII-4 GUKOS support (but only at the lower levels): 1. R-7M; 2. N-1?; 3. N-11
Support in the MO MO for the N-1 - signed by Alekseev and Tolubko.
Navy is indifferent to MOK (they do not understand the prospects)
It is necessary to establish a relationship with the customer. He is interested in this (Attract DI Kozlov!)
- Write a detailed letter on MOK to Afanasyev (copied to the Central Committee) (With a draft work order)
- Draft a memo to the Central Committee for DF Ustinov. (Long-term planning)
- Achieve color television for the Soyuz-M (NN Detinov - CC)
- TsKBEM review of the level of work on special equipment in related organizations.
- Write a memo about the possibilities of "A" in the operational intelligence. (VK Bezverby together with TsNIIMASH).
- Deal with the radio channel on the "Yantar". Orders: VK Bezverby
- The draft memo on the need of long-term integrated planning by the state. TSKBEM work on MOK - 1st to attempt its development. (Mishin Diaries 3-167)
Military-Industrial Commission (VPK) Decree 'On establishment of the State Commission for testing the Soyuz-T' was issued. A State Commission was formed to oversee the flight tests of the solo mission 7K-S. The draft design for 7K-ST space station transport version was completed in August 1974.
The 7K-S was cancelled at the same time as the N1 and the reorganisation of the space industry. Experiments planned for the solo flights were transferred to the Salyut program. The first test vehicle was already at Baikonur being prepared for launch. It was decided to launch the first three unmanned as technology tests - Cosmos 670 (7K-S No.1), Cosmos 772 (7K-S No.2), and Cosmos 869 (7K-S No.3). The Soyuz 7K-ST transport project continued, except now being redesigned for a crew of three. The 7K-ST would eventually fly as the Soyuz T and Soyuz TM ferry to the Salyut 7 and Mir space stations.
Unmanned military Soyuz 7K-S test flight. Recovered October 3, 1975 4:10 GMT. Unsuccessful mission. Transmitted only on 166 MHz frequency, at none of the other usual Soyuz wavelengths.
193 km X 270 km orbit to 195 km X 300 km orbit. Delta V: 8 m/s
196 km X 300 km orbit to 196 km X 328 km orbit. Delta V: 8 m/s
Total Delta V: 16 m/s
Unmanned military Soyuz 7K-S test flight. Recovered December 17, 1976 10:31 GMT. Transmitted only on 20.008 MHz and 166 MHz frequencies, at none of the other usual Soyuz wavelengths.
196 km X 290 km orbit to 187 km X 335 km orbit. Delta V: 15 m/s
187 km X 335 km orbit to 259 km X 335 km orbit. Delta V: 21 m/s
259 km X 335 km orbit to 260 km X 345 km orbit. Delta V: 2 m/s
260 km X 345 km orbit to 265 km X 368 km orbit. Delta V: 7 m/s
265 km X 368 km orbit to 267 km X 391 km orbit. Delta V: 6 m/s
267 km X 391 km orbit to 300 km X 310 km orbit. Delta V: 32 m/s
Total Delta V: 83 m/s
