Tselina-D
Tselina-D
Tselina-D

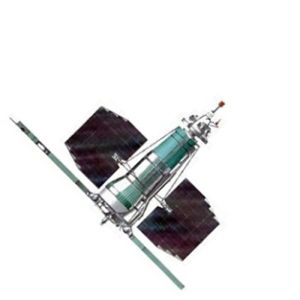

Credit: Yuzhnoye
Ukrainian military signals intelligence satellite. The Tselina D was the detailed observation portion of the two-satellite Tselina ELINT satellite system. ELINT satellite built by Yuzhnoye (prime), TsNII-108 GKRE (payload), Russia. Launched 1970 - 1994.

AKA: 11F619;Ikar. Status: Operational 1970. First Launch: 1970-12-18. Last Launch: 1994-05-25. Number: 77 . Gross mass: 2,000 kg (4,400 lb).

Development began in the 1960's, with first launch in 1970, but major technical difficulties resulted in the Tselina-D not being declared operational until 1976. However by 1984 technical improvements allowed Tselina-D to take over the general surveillance function of the other satellite. The final launch attempt in the series took place in 1994.

The Tselina dedicated ELINT satellite system included two satellites: Tselina-O for general surveillance and Tselina-D for detailed observations. TsNII-108 GKRE (Zaslavskiy) developed the payload while V M Kovtunenko of Yuzhnoye/OKB-586 build the satellite and launch vehicle.

The first Tselina-O was launched by a Kosmos-3M in 1970. Delays in payload development and weight growth in the Tselina-D resulted in the whole Tselina system not being operational until 1976. The Vostok booster had to be used due to the higher weight of Tselina-D; this was later replaced by the Tsyklon-3 booster. Constant improvement resulted in Tselina-O being abandoned in 1984 and all systems being put on Tselina-D. In 1981 a second control and information processing center was established.

Tselina-D and -O spacecraft were operated simultaneously to maximize results. The Tselina system not only localized and classified radio emitters but also characterized their functional regimes. It also characterized command traffic from military units, allowing targeting of those units by photo reconnaissance satellites.

Tselina-D satellites were operated in six orbital planes, spaced 30 degrees apart. They would record data received, and then dump it to ground stations while passing over the Soviet Union. In the late 1980's the much larger Tselina-2, launched by a Zenit-2 booster, began taking over the task. The last successful Tselina-D launch was in 1992. By that time the constellation had been reduced to three orbital planes spaced at 60 degrees, complementing the Zenit-2 constellation in four higher-altitude orbital planes spaced 40 degrees apart.

Western observers could monitor the status of the Tselina-D satellites via their continuous-wave beacons which operated at 153 MHz.


More at: Tselina-D.

Subtopics

Tselina-R (11F619M) Null

Family: Medium earth orbit, SIGINT. Country: Ukraine. Launch Vehicles: R-7, Vostok 8A92M, Tsiklon, Tsiklon-3. Projects: Tselina. Launch Sites: Plesetsk, Plesetsk LC41/1, Plesetsk LC43/4, Plesetsk LC32/2, Plesetsk LC32/1, Plesetsk LC32. Agency: MOM, Yuzhnoye. Bibliography: 102, 2, 445, 474, 5, 6, 6997, 13303, 13304, 13305.
Photo Gallery

Cosmos 2242Cosmos 2242
Credit: Manufacturer Image



1970 January 2 - . LV Family: R-36. Launch Vehicle: Tsiklon-3.
1970 December 18 - . 16:15 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1971 April 7 - . 07:10 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1972 March 1 - . 11:15 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1972 December 28 - . 11:00 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1973 October 29 - . 14:00 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1974 August 16 - . 03:41 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1975 June 20 - . 06:54 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1975 August 22 - . 02:11 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1976 March 16 - . 17:22 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1976 August 27 - . 14:35 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1976 December 10 - .
1977 February 26 - . 21:18 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1977 June 24 - . 10:30 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1977 July 7 - . 07:25 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1977 September 20 - . 01:01 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1977 September 24 - . 10:15 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3. FAILURE: Probable failure of launch vehicle stage to reach proper orbit.. Failed Stage: 3.
1977 December 27 - . 08:00 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3. FAILURE: Probable failure of launch vehicle stage to reach proper orbit.. Failed Stage: 3.
1978 January 10 - . 13:23 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1978 May 12 - . 04:07 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1978 June 28 - . 17:35 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1978 October 10 - . 19:44 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1978 December 19 - . 01:35 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1979 February 13 - . 21:41 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1979 April 14 - . 05:27 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1979 July 20 - . 11:58 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1979 October 26 - . 18:12 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1979 November 27 - . 09:55 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1980 January 30 - . 12:51 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1980 March 18 - . 16:01 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC43/4. LV Family: R-7. Launch Vehicle: Vostok 8A92M. FAILURE: Booster exploded on pad during servicing. Severe pad damage, 48 people killed. Cause found to be change in solder with tin to that with lead in H2O2 filters, causing decomposition and explosion.. Failed Stage: 0.
1980 June 4 - . 07:34 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1980 August 15 - . 05:34 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1980 November 21 - . 11:53 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1981 January 27 - . 14:58 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1981 May 19 - . 03:49 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1981 August 24 - . 21:40 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32/1. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1981 October 13 - . 23:01 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1981 December 3 - . 11:47 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32/1. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1982 February 19 - . 01:42 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1982 March 31 - . 16:27 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1982 May 5 - . 08:01 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1982 June 10 - . 17:37 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32/1. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1982 August 5 - . 06:56 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1982 September 16 - . 04:55 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1983 January 20 - . 17:26 GMT - . Launch Site: Plesetsk. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1983 February 16 - . 10:03 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC41/1. LV Family: R-7. Launch Vehicle: Vostok 8A92M.
1983 April 23 - . 14:30 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1983 June 22 - . 23:58 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1983 December 15 - . 12:25 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1984 February 8 - . 09:23 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1984 March 15 - . 17:05 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1984 October 18 - . 17:46 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1985 January 24 - . 16:45 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1985 March 5 - . 15:39 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1985 July 8 - . 23:40 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1985 August 8 - . 11:49 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/1. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1985 November 22 - . 22:20 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1985 December 12 - . 15:51 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/1. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1986 January 17 - . 07:21 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/1. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1986 February 19 - . 23:04 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/pad?. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1986 May 15 - . 04:26 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/1. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1986 June 12 - . 04:43 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/1. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1986 September 30 - . 18:34 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/1. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1986 December 10 - . 07:30 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1987 January 14 - . 09:05 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1987 March 3 - . 15:03 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1987 April 27 - . 00:00 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1987 July 1 - . 19:35 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1987 October 20 - . 09:09 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/1. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1988 January 6 - . 07:41 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1988 March 15 - . 18:50 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1988 June 14 - . 03:18 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1988 October 11 - . 08:01 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/1. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1990 January 30 - . 11:20 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/pad?. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1991 June 13 - . 15:41 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1992 November 24 - . 04:09 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/pad?. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1992 December 25 - . 20:07 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32. Launch Pad: LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1993 April 16 - . 07:49 GMT - . Launch Site: Plesetsk. LV Family: R-36. Launch Vehicle: Tsiklon-3.
1994 May 25 - . 10:15 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC32/2. LV Family: R-36. Launch Vehicle: Tsiklon-3. FAILURE: Stage 2 and 3 failed to separate due to a breakdown of the launch vehicle control system.. Failed Stage: 3.
