Parus
Part of KAUR-1

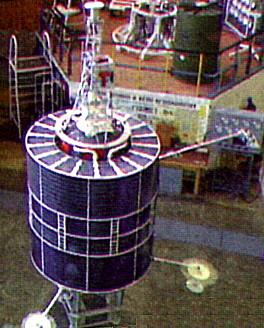

Parus
Parus
Tsiklon, its successor, Parus, and Sfera all used the KAUR-1 bus and were similar in appearance.
Russian navigation satellite. Military satellite which provided navigation information and store-dump radio communications to Soviet naval forces and ballistic missile submarines. Navigation, data relay satellite built by NPO Prikladnoi Mekhaniki (NPO PM), Russia. Launched 1974 - 2010. Used KAUR-1 bus.

AKA: 11F627;Tsikada-M;Tsiklon-B. Status: Operational 1974. First Launch: 1974-12-26. Last Launch: 2010-04-27. Number: 100 . Gross mass: 825 kg (1,818 lb).

Experimental flights of equipment components began in 1967, but development was protracted due to the difficulty in developing software that could achieve acceptable positional accuracy levels. Flight trials began in 1974 and the system was finally accepted into military service in 1976.

The overall system was designated Tsiklon-B, replacing the Tsiklon series put into service in the 1960's/ The satellite was designed by Reshetnev; the navigation and control system was by NII Radiopribor (Ivanov, Chief Designer, L I Gusev, Director); with communications systems by MNIIRS MPSS (Nesvist). The Kosmos-3M launch vehicle was used to put individual satellites in orbit. Experimental flights began in 1967 in order to develop a system meeting the required tactical and operational characteristics.

Parus used the basic KAUR-1 bus, consisting of a 2.035 m diameter cylindrical spacecraft body, with solar cells and radiators of the thermostatic temperature regulating system mounted on the exterior. Orientation was by a single-axis magneto-gravitational (gravity gradient boom) passive system. The hermetically sealed compartment had the equipment mounted in cruciform bays, with the chemical batteries protecting the radio and guidance equipment mounted at the center.

The operational satellite constellation consisted of a minimum of six operational satellites, each deployed in one of six planes, spaced 30 degrees apart. Usually one active satellite and one in-space spare was maintained in each plane. Typical lifetime was 18 to 24 months.

The signals were supplemented by the very similar civilian Tsikada system, which was in four planes 45 degrees apart. The satellites transmitted Doppler-shifted VHF transmissions at around 150 and 400 MHz of their position and orbital characteristics. The naval receivers would use this data from several satellites to calculate their position to within 100 m.

Electric System: 0.20 average kW.


More at: Parus.

Family: Medium earth orbit, Navigation, Technology. Country: Russia. Launch Vehicles: R-14, Kosmos 3, Kosmos 11K65M, R-29, Volna. Launch Sites: Plesetsk, Barents Sea Launch Area, Plesetsk LC132/2, Plesetsk LC132/1, Plesetsk LC133/3. Agency: MO, Reshetnev bureau. Bibliography: 102, 107, 2, 276, 296, 4, 449, 552, 554, 6, 6774, 12943, 12944.
Photo Gallery

NadezhdaNadezhda
Credit: Manufacturer Image


Cosmos 2315Cosmos 2315
Credit: Manufacturer Image



1974 December 26 - . 12:00 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1975 April 11 - . 07:57 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1975 August 14 - . 13:29 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1975 November 4 - . 10:13 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1976 January 20 - . 17:08 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1976 October 29 - . 12:40 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1976 December 28 - . 07:50 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1977 February 21 - . 17:20 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1977 July 13 - . 05:02 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1977 September 13 - . 19:59 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1977 December 23 - . 16:24 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1978 January 17 - . 03:26 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1978 February 28 - . 06:43 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1978 March 28 - . 01:30 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1978 May 23 - . 16:57 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. Launch Pad: LC132/1?. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1978 December 20 - . 20:43 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1979 January 16 - . 17:37 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1979 March 21 - . 04:13 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1979 April 7 - . 06:20 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1979 May 31 - . 17:58 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1979 October 16 - . 12:17 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1980 January 14 - . 19:49 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1980 January 25 - . 20:36 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1980 May 20 - . 09:21 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1980 December 5 - . 04:23 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1981 February 12 - . 18:21 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1981 June 4 - . 15:41 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1981 August 12 - . 05:46 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1981 September 18 - . 03:34 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1982 January 14 - . 07:51 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1982 March 24 - . 19:47 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1982 April 8 - . 00:15 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1982 June 18 - . 11:58 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1982 July 7 - . 09:47 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1982 October 19 - . 05:58 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1983 January 12 - . 14:02 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1983 March 30 - . 01:10 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1983 May 6 - . 03:00 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. Launch Pad: LC132?/pad?. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1983 May 24 - . 02:59 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1983 December 8 - . 06:13 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1984 January 11 - . 18:08 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1984 February 2 - . 17:38 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1984 May 11 - . 06:19 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. Launch Pad: LC132?/pad?. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1984 June 27 - . 04:59 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1984 September 13 - . 15:54 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1984 October 11 - . 14:43 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1984 November 15 - . 06:40 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1985 February 1 - . 19:36 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1985 March 14 - . 01:09 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1985 October 23 - . 17:24 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M. FAILURE: Launch vehicle failed to orbit - unknown cause.. Failed Stage: U.
1985 November 28 - . 13:12 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1985 December 19 - . 08:46 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1986 January 16 - . 11:38 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1986 May 23 - . 12:54 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1986 June 18 - . 20:03 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1986 November 24 - . 21:43 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1986 December 17 - . 17:02 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1987 February 18 - . 13:53 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1987 July 6 - . 21:59 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1987 October 14 - . 12:35 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1987 December 23 - . 20:22 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1988 March 22 - . 14:07 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1988 July 18 - . 22:28 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1989 February 22 - . 03:28 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1989 April 4 - . 18:36 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1989 June 7 - . 05:12 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/2. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1989 July 25 - . 07:48 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1990 March 20 - . 00:25 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1990 April 20 - . 18:41 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. Launch Pad: LC133/3?. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1990 September 14 - . 05:59 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1991 February 26 - . 04:53 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1991 April 16 - . 07:21 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1991 August 22 - . 12:35 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. Launch Pad: LC132/1?. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1991 November 27 - . 03:30 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1992 February 17 - . 22:05 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1992 April 15 - . 07:17 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1992 July 1 - . 20:16 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. Launch Pad: LC133/3?. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1992 October 29 - . 10:40 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1993 February 9 - . 02:56 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1993 April 1 - . 18:57 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1993 November 2 - . 12:10 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1994 April 26 - . 02:14 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC133/3. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1995 March 22 - . 04:09 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1995 October 6 - . 03:23 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1996 January 16 - . 15:33 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1996 September 5 - . 12:47 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1996 December 20 - . 06:43 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1997 April 17 - . 13:03 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1997 September 23 - . 16:44 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1998 December 24 - . 20:02 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
1999 August 26 - . 12:02 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
2001 June 8 - . 15:08 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
2002 May 28 - . 18:15 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
2003 June 4 - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
2004 July 22 - . 17:46 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
2005 January 20 - . 03:00 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
2005 June 21 - . 19:46 GMT - . Launch Site: Barents Sea Launch Area. Launch Pad: 69.5 N x 34.2 E. Launch Platform: K-496. LV Family: R-29. Launch Vehicle: Volna. FAILURE: Failure.
2007 September 11 - . 13:05 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
2009 July 21 - . 03:57 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
2010 April 27 - . 01:05 GMT - . Launch Site: Plesetsk. Launch Complex: Plesetsk LC132/1. LV Family: R-14. Launch Vehicle: Kosmos 11K65M.
