Molniya 8K78
Part of R-7

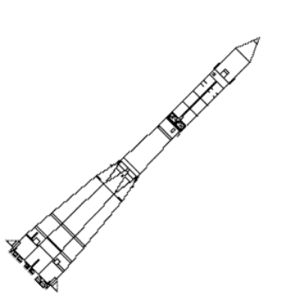

Molniya LV
Molniya LV
Russian orbital launch vehicle. Four stage derivative of the R-7 ICBM developed on a crash-program basis in 1960 for Soviet lunar and planetary deep space probe missions. The third stage found later use in the Voskhod and Soyuz launchers. By the 1970's mature versions of the launch vehicle were used almost entirely for launch of Molniya communications satellites and Oko missile early warning spacecraft into elliptical, 12-hour earth orbits.

AKA: 8K74;8K78;A-2-e;Molniya;R-7A;SL-6. Status: Retired 1967. First Launch: 1960-10-10. Last Launch: 1967-10-22. Number: 40 . Payload: 900 kg (1,980 lb). Thrust: 3,999.93 kN (899,220 lbf). Gross mass: 303,500 kg (669,100 lb). Height: 40.00 m (131.00 ft). Diameter: 2.99 m (9.80 ft).

On 15 January 1960 Korolev signed the order for development of a four stage rocket based on the R-7. The draft project was completed on 10 May 1960. The original design was intended for launch of unmanned probes toward Mars, but it had universal uses.

The first two stages - the four strap-ons of the first stage and the second core stage - were based on the R-7 ICBM, but reinforced for the heavier upper stages.

On aerodynamic grounds the new third stage had to follow closely the diameter of the Vostok third stage. Therefore it could only be increased from the Vostok's 2.58 m to 2.66 m diameter. The new third stage used engines developed for the R-9 ICBM. Although first developed for the Monlniya four-stage booster, it later would be used with modifications in the three-stage Soyuz launch vehicle.

The fourth stage would have to restart in weightless conditions in an earth parking orbit, presenting a number of problems. It needed to be equipped with an orientation and stabilization system (SOIS) and a jettisonable engine section (BOZ). The BOZ had to start in weightlessness provide a low thrust to settle the propellants in the main stage so that the main engine could ignite. The stage was based on the existing Vostok third stage, with two toroidal tanks of 600 mm cross section, and a single S1-5400 Lox/kerosene engine.

Payload: 900 kg (1,980 lb) to a trans-Mars trajectory. Flyaway Unit Cost 1985$: 39.000 million.

Stage Data - Molniya 8K78


More at: Molniya 8K78.

Family: orbital launch vehicle. Country: Russia. Engines: RD-0108, RD-107-8D74K, RD-108-8D75K. Spacecraft: Vostok, Mars 1M, Venera 1VA, Mars 2MV-1, Mars 2MV-2, Mars 2MV-4, Mars 2MV-3, Luna E-6, Venera 3MV-1A, Venera 3MV-1, Molniya-1, Mars 3MV-4A, Venera 3MV-4, Venera 3MV-3, Molniya-1T. Projects: Luna, Mars, Molniya, Venera. Launch Sites: Baikonur, Baikonur LC1, Baikonur LC31. Stages: Molniya 8K78-2, R-7A 8K74-1, Vostok 8A92-0, Molniya 8K78M-3. Agency: Korolev bureau.
Photo Gallery

Molniya LVMolniya LV
Credit: © Mark Wade


R-7 aft endR-7 aft end
Credit: © Mark Wade


R-7 vs ProtonR-7 vs Proton
R-7 / Proton LVs Cutaway
Credit: © Mark Wade


R-7 CutawaysR-7 Cutaways
Credit: © Mark Wade



1960 January 15 - . LV Family: R-7. Launch Vehicle: Molniya 8K78.
1960 May 10 - . LV Family: R-7. Launch Vehicle: Molniya 8K78.
1960 June 4 - . LV Family: R-7. Launch Vehicle: Molniya 8K78.
1960 October 10 - . 14:27 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: At T+300.9 sec, the launcher went out of control and the destruct command was given at T+324.2 sec - the engine of Stage 3 cut off after 13.32 s of burning.. Failed Stage: U.
1960 October 14 - . 13:51 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: At T+290 sec Stage 3's engine 8D715K failed to ignite because a LOX leak froze kerosene in the fuel inlet to the pump on the launch pad due to a faulty LOX valve seal.. Failed Stage: U.
1961 January 18 - . LV Family: R-7. Launch Vehicle: Molniya 8K78.
1961 February 1 - . LV Family: R-7. Launch Vehicle: Molniya 8K78.
1961 February 4 - . 01:18 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: At T+531 sec, the fourth vernier chamber of Stage 3's 8D715K engine exploded because the LOX cut-off valve had not closed as scheduled and LOX flowed into the hot chamber.. Failed Stage: U.
1961 February 12 - . 00:34 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1962 August 25 - . 02:18 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: At T+60 min 50 sec one of the four solid motors of the escape stage's BOZ unit did not fire. The resulting asymmetric torque caused the stage to lose correct attitude and three seconds after ignition of the main engine S1.5400A1 it began to tumble.. Failed Stage: U.
1962 September 1 - . 02:12 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: At T+ 61 min 30 sec the fuel valve did not open.; the ignition command was blocked from going to the main engine of Stage 4.. Failed Stage: U.
1962 September 12 - . 00:59 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: At T+531 sec, the fourth vernier chamber of Stage 3's 8D715K engine exploded because the LOX cut-off valve had not closed as scheduled and LOX flowed into the hot chamber.. Failed Stage: U.
1962 October 24 - . 17:55 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: 16 seconds after ignition of Stage 4, Block L's S1.5400A1 engine exploded. A lubricant leak resulted in the jamming of a shaft in the turbopump gearbox and break up of the turbine.. Failed Stage: U.
1962 November 1 - . 16:14 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1962 November 4 - . 15:35 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: After T+260 sec, a malfunction of the pressurization system of the central sustainer led to cavitation in the oxidizer pipeline and LOX pump, followed at T+292s by the fuel pump.. Failed Stage: 1.
1963 January 4 - . 08:49 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: The escape stage's BOZ unit failed to operate due to failure of a DC transformer of the power system. The stage with payload remained in Earth orbit.. Failed Stage: U.
1963 February 3 - . 09:29 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: Upper stage gyro platform failure.. Failed Stage: G.
1963 April 2 - . 08:16 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1963 November 11 - . 06:23 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: During unpowered coast in parking orbit the escape stage Block L lost stable attitude. Engine ignition occurred in an incorrect direction.. Failed Stage: U.
1964 February 19 - . 05:47 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: Second stage failure.. Failed Stage: 2.
1964 March 21 - . 08:15 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: Failure. Failed Stage: U.
1964 March 27 - . 03:24 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: During unpowered coast in parking orbit the escape stage Block L lost stable attitude due to a loss of the power circuit of the pneumatic valves of the attitude control and stabilization system.. Failed Stage: U.
1964 April 2 - . 02:42 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1964 April 20 - . 08:08 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: Power failure caused upper stage shutdown at T+340 seconds.. Failed Stage: U.
1964 June 4 - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: At T+104 sec the tank draining of core Block A failed due to jamming of the servo-motored throttle and break down of the motor's circuit The launcher was destroyed on impact downrange from the pad.. Failed Stage: 0.
1964 August 22 - . 07:12 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1964 November 30 - . 13:12 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1965 March 12 - . 09:30 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: The escape stage Block L's engine failed to ignite due to failure of a transformer in the power supply of the control system.. Failed Stage: U.
1965 April 10 - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: Stage 3's engine 8D715K failed due to depressurization of the nitrogen pipeline of the LOX tank pressurization system of Block I.. Failed Stage: U.
1965 April 23 - . 01:55 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1965 May 9 - . 07:49 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1965 June 8 - . 07:40 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1965 July 18 - . 14:38 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1965 September 4 - . Launch Site: Baikonur. Launch Complex: Baikonur. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1965 October 14 - . 19:40 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1965 November 12 - . 05:02 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC31. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1965 November 16 - . 04:19 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC31. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1965 November 23 - . 03:21 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC31. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: At T+528 sec, during the final thrust phase of the Block I's 8D715K engine, one of the combustion chambers blew up due to a tear in the fuel pipeline. This resulted in an abnormal separation of the upper stages.. Failed Stage: U.
1965 December 3 - . 10:46 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC31. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1966 March 27 - . Launch Site: Baikonur. Launch Complex: Baikonur LC31. LV Family: R-7. Launch Vehicle: Molniya 8K78. FAILURE: The booster failed during ascent. The launcher and payload broke up on impact with the ground.. Failed Stage: 1.
1966 April 25 - . 07:12 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC31. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1966 October 20 - . 07:55 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1967 May 24 - . 22:50 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1967 August 31 - . 08:00 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. Launch Pad: LC1/LC31?. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1967 October 3 - . 05:00 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. Launch Pad: LC1 or LC31. LV Family: R-7. Launch Vehicle: Molniya 8K78.
1967 October 22 - . 08:40 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC1. Launch Pad: LC1 or LC31. LV Family: R-7. Launch Vehicle: Molniya 8K78.
