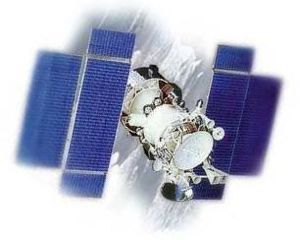

Gorizont Credit: © Mark Wade |
AKA: 11F662. Status: Operational 1978. First Launch: 1978-12-19. Last Launch: 2000-06-06. Number: 35 . Gross mass: 2,110 kg (4,650 lb).
The first was launched in December 1978, followed by two in 1979. The last satellite was launched on 14 June 1980 and entered operation only on 2 July, 13 days before the start of the games. The constellation provided 30 channels of television via 500 Moskva receiving stations equipped with 2.5 m antennae. These broadcast television throughout the Soviet Union. Trials of the system were completed in 1981.
The geostationary Gorizont satellite was later part of the Russian YeSSS Unified Satellite Communication System. These satellites provided civilian and military telephone, telegraph, and facsimile communications services, in addition to relaying TV and radio broadcasts. Gorizont also supported maritime and international communications from 1988 as an element of the Okean system operating at 1.5 to 1.6 GHz. The KAUR-3 spacecraft bus was 3-axis stabilized using liquid propellant micro-engines to within 0.25 degrees of the earth's center. The single-unit body was equipped with solar panels, and active liquid-gas phase-change thermoregulation system, and a corrective engine unit for making orbital adjustments. 25 square meters of solar panels provided 1280 W of power. Gorizont was equipped with seven transponders.260 GHz total bandwidth.195 W total transponder power with EIRP of 28 to 38.5 dBW. Frequency bands: 6/4, 14/11, 1.6/1.5 GHz.
The Gorizont satellites were primarily used for domestic and international communications. The Gorizont constellation in 1993-1994 established a tenth position in the geosynchronous ring for domestic needs and deployed three Gorizonts (one old, two new) to new locations in support of Rimsat, Ltd., the US-based firm leasing orbital slots from Tonga. In all, four Gorizont spacecraft were launched during 1993-1994, but one was lost due to a Proton launch failure. With no resident spacecraft being retired during the period, the number of active Gorizonts increased by the end of 1994 to its peak of 13.
The Gorizont spacecraft possessed an initial mass in excess of 2.1 metric tons and demonstrated a lifetime of nearly 10 years, although a 5-year service life was more common. The 3-axis stabilized satellite was approximately 2 m in diameter and 5 m long with two large solar arrays capable of generating 1.3 kW of electrical power for the first three years. Seven separate transmission antennas permitted a variety of reception patterns for both broad and localized terrestrial regions.
A typical Gorizont communications payload included six general purpose (TV, audio, facsimile) 6/4 GHz transponders (five 12.5 W and one 60 W), one Luch 14/11 GHz transponder (15 W), and one Volna 1.6/1.5 GHz transponder (20 W). The Volna transponders were INMARSAT-compatible and extensively used by the Russian merchant marine fleet via the primary control center in the Tomilino suburb of Moscow and the Odessa and Nakhodka ground stations. Gorizont was the primary geosynchronous television re-broadcasting system, supporting all five Russian Federation time zones: Zone 1 from 140 degrees E, Zone 2 from 90 degrees E, Zone 3 from 80 degrees E, Zone 4 from 53 degrees E, and Zone 5 from 14 degrees W. These transmissions were handled by Orbita (12-m receiving antenna) and Moskva (2.5-m receiving antenna) ground stations in the 6/4 GHz band. The Moskva Globalnaya system was inaugurated in 1989 using 4-m receiving antennas and serviced by Gorizonts at 96.5 degrees E and 11 degrees W.
Gorizont |
Gorizont Credit: NPO PM |
Gorizont Credit: © Mark Wade |
Gorizont Credit: Manufacturer Image |
Did not achieve geostationary orbit due to malfunction of Block D. Operation of telephone and telegraph radiocommunications and transmission of television programmes. Positioned in geosynchronous orbit over the Indian Ocean at 53 deg E in 1979-1980 As of 29 August 2001 located at 75.87 deg E drifting at 0.132 deg E per day. As of 2007 Mar 10 located at 57.49E drifting at 0.119E degrees per day.
Stationed at 14 deg W. Statsionar 4. Positioned in geosynchronous orbit at 14 deg W in 1979-1981; 90 deg E in 1981-1983 As of 26 August 2001 located at 59.72 deg E drifting at 0.012 deg E per day. As of 2007 Mar 8 located at 84.05E drifting at 0.107W degrees per day.
Stationed at 14 deg W. Positioned in geosynchronous orbit at 14 deg W in 1980-1984; 11 deg W in 1984-1985; 14 deg W in 1985; 11 deg W in 1985-1988 As of 3 September 2001 located at 106.01 deg W drifting at 5.930 deg W per day. As of 2007 Mar 9 located at 145.19W drifting at 5.924W degrees per day.
Stationed at 53 deg E. Provision of telephone and telegraph radiocommunications and transmission of television programmes. Positioned in geosynchronous orbit at 53 deg E in 1982-1986; 96 deg E in 1986-1989 As of 28 August 2001 located at 156.27 deg E drifting at 6.267 deg W per day. As of 2007 Mar 10 located at 91.82E drifting at 6.281W degrees per day.
Provision of telephone and telegraph radiocommunications and transmission of television programmes. Positioned in geosynchronous orbit at 90 deg E in 1982-1984; 140 deg E in 1984-1988; 170 deg W in 1988-1989 As of 31 August 2001 located at 45.17 deg W drifting at 0.179 deg E per day. As of 2007 Mar 9 located at 146.19W drifting at 0.287W degrees per day.
Stationed at 14 deg W. Radio telephone and telegraph communications and television broadcasting. Positioned in geosynchronous orbit at 14 deg W in 1983-1986; 16 deg W in 1986-1987; 11 deg W in 1987-1989 As of 3 September 2001 located at 105.97 deg E drifting at 6.939 deg W per day. As of 2007 Mar 10 located at 169.25W drifting at 6.932W degrees per day.
Stationed at 90 deg E. Radio telephone and telegraph communications and television broadcasting. Positioned in geosynchronous orbit at 90 deg E in 1983-1987; 140 deg E in 1987-1988 As of 2 September 2001 located at 3.86 deg W drifting at 7.211 deg W per day. As of 2007 Mar 10 located at 143.68W drifting at 7.218W degrees per day.
Stationed at 53 deg E. Provision of telephone and telegraph radiocommunications and television broadcasting. Positioned in geosynchronous orbit at 53 deg E in 1984-1987 As of 3 September 2001 located at 55.62 deg E drifting at 0.094 deg W per day. As of 2007 Mar 2 located at 96.90E drifting at 0.028E degrees per day.
Stationed at 80 deg E. Provision of telephone and telegraph radiocommunications and television broadcasting. Positioned in geosynchronous orbit at 80 deg E in 1984-1989; 170 deg W in 1989-1990 As of 5 September 2001 located at 157.76 deg W drifting at 0.193 deg E per day. As of 2007 Mar 8 located at 46.55W drifting at 0.187W degrees per day.
Stationed at 140 deg E. Provision of telephone and telegraph radiocommunications and television broadcasting. Positioned in geosynchronous orbit at 140 deg E in 1985-1987; 53 deg E in 1987-1989; 11 deg W in 1989-1991 As of 5 September 2001 located at 22.94 deg W drifting at 0.085 deg E per day. As of 2007 Mar 10 located at 14.60W drifting at 0.040W degrees per day.
Stationed at 345 deg E. Provision of telephone and telegraph radiocommunications and television broadcasting. Positioned in geosynchronous orbit at 14 deg W in 1986-1989; 40 deg E in 1989-1990 As of 28 August 2001 located at 84.75 deg E drifting at 0.265 deg W per day. As of 2007 Mar 10 located at 45.79E drifting at 0.142E degrees per day.
Stationed at 90 deg E. Provision of telephone and telegraph radiocommunications and television broadcasting. Positioned in geosynchronous orbit at 90 deg E in 1986-1991 As of 5 September 2001 located at 132.70 deg W drifting at 12.791 deg W per day. As of 2007 Mar 10 located at 94.81E drifting at 12.778W degrees per day.
Stationed at 140 deg E. Provision of telephone and telegraph radiocommunications and television broadcasting. Positioned in geosynchronous orbit at 140 deg E in 1987-1989; 103 deg E in 1989-1992 As of 28 August 2001 located at 132.07 deg W drifting at 9.420 deg W per day. As of 2007 Mar 9 located at 61.02W drifting at 9.418W degrees per day.
Stationed at 346 deg E. Radio telephone and telegraph communications and television broadcasting. Positioned in geosynchronous orbit at 14 deg W in 1988-1991; 11 deg W in 1991-1992 As of 31 August 2001 located at 29.28 deg W drifting at 8.804 deg W per day. As of 2007 Mar 11 located at 152.02W drifting at 8.807W degrees per day.
Stationed at 80 deg E. Provision of telephone and telegraph radiocommunications and television broadcasting. Positioned in geosynchronous orbit at 80 deg E in 1988-1992 As of 28 August 2001 located at 176.78 deg W drifting at 1.036 deg W per day. As of 2007 Mar 8 located at 169.61W drifting at 1.046W degrees per day.
Stationed at 53 deg E. Provision of telephone and telegraph radiocommunications and television broadcasting. The Rimsat network was initiated when Gorizont 17 was leased to the corporation and transferred from 53 degrees E (where it was then a backup to Gorizont 27) to 134 degrees E during late-June and July, 1993. At the close of 1994, Gorizont 17 was still on station but nearing the end of its operational life after six years. Positioned in geosynchronous orbit at 53 deg E in 1989-1993; 134 deg E in 1993-1995; 34 deg E in 1995-1997 As of 30 August 2001 located at 22.84 deg W drifting at 4.340 deg W per day. As of 2007 Mar 10 located at 147.41W drifting at 4.350W degrees per day.
Stationed at 140 deg E. Provision of telephone and telegraph radiocommunications and television broadcasting. Positioned in geosynchronous orbit at 140 deg E in 1989-1996 As of 5 September 2001 located at 100.49 deg E drifting at 3.169 deg W per day. As of 2007 Mar 9 located at 90.76W drifting at 3.156W degrees per day.
Stationed at 97.5 deg E. Operation of the long-range telephone and telegraph radio-communications system and transmission of television programmes. Positioned in geosynchronous orbit at 97 deg E in 1989-1996; 34 deg E in 1996-1998 As of 4 September 2001 located at 105.39 deg E drifting at 0.168 deg E per day. As of 2007 Feb 28 located at 84.84E drifting at 0.295W degrees per day.
Stationed at 90 deg E. Provision of telephone and telegraph communications and transmission of television programmes, continuation of work in the context of the 'Intercosmos' programme for the development of new frequency ranges and the creation of long-range systems of space c ommunications jointly with the Byelorussian SSR, GDR, Hungary and Czechoslovakia. Positioned in geosynchronous orbit at 90 deg E in 1990; 14 deg W in 1990-1995; 26 deg E in 1995-1998; 96 deg E in 1998-1999 As of 4 September 2001 located at 77.53 deg E drifting at 0.186 deg W per day. As of 2007 Mar 8 located at 83.10E drifting at 0.160E degrees per day.
Stationed at 90 deg E. Operation of the long-range telephone and telegraph radio-communications system and transmission of television programmes. Positioned in geosynchronous orbit at 90 deg E in 1990-1993. Gorizont 28 replaced Gorizont 21 at 90 degrees E in 1993. This allowed Gorizont 21 to be repositioned from mid-November to late-December for the inauguration of a new station at 145 degrees E. 145 deg E in 1993-1999 As of 2 September 2001 located at 4.18 deg E drifting at 0.139 deg W per day. As of 2007 Mar 9 located at 5.59E drifting at 0.135E degrees per day.
Stationed at 40 deg E. Operation of the long-range telephone and telegraph radio-communications system and transmission of television programmes. Positioned in geosynchronous orbit at 40 deg E in 1990-1996; 140 deg E in 1996-1999 As of 31 August 2001 located at 45.22 deg E drifting at 0.368 deg W per day. As of 2007 Mar 10 located at 85.49E drifting at 0.416E degrees per day.
Stationed at 103 deg E. Maintenance of telephone and telegraph radio communications and transmission of television broadcasts. Positioned in geosynchronous orbit at 103 deg E in 1991-1992 As of 5 September 2001 located at 159.68 deg E drifting at 4.917 deg W per day. As of 2007 Mar 10 located at 0.82W drifting at 4.909W degrees per day.
Stationed at 80 deg E. Maintenance of telephone and telegraph radio communications and transmission of television broadcasts. Positioned in geosynchronous orbit at 80 deg E in 1991-1998 As of 28 August 2001 located at 158.79 deg E drifting at 6.583 deg W per day. As of 2007 Mar 9 located at 172.52W drifting at 6.586W degrees per day.
Stationed at 103 deg E. Transmission of Russian radio and television programmes in Siberia and the solution of communications problems in Russia's eastern regions. Positioned in geosynchronous orbit at 103 deg E in 1992-1999 As of 5 September 2001 located at 140.44 deg E drifting at 0.018 deg W per day. As of 2007 Mar 10 located at 44.59W drifting at 1.512W degrees per day.
Stationed at 349 deg E. Development of the communications and television broadcasting system. Launched in the interests of the Ministry of Communications of the Russian Federation. Positioned in geosynchronous orbit at 11 deg W in 1992-1999 As of 5 September 2001 located at 13.53 deg W drifting at 0.004 deg E per day. As of 2007 Feb 21 located at 16.60E drifting at 0.001E degrees per day.
Stationed at 53 deg E. Development of the communications and television broadcasting system. Positioned in geosynchronous orbit at 53 deg E in 1992-1996; 96 deg E in 1996-1998; 50 deg E in 1999. As of 5 September 2001 located at 26.46 deg E drifting at 0.193 deg W per day. As of 2007 Mar 11 located at 26.21E drifting at 0.345W degrees per day.
Gorizont 28 replaced Gorizont 21 at 90 degrees E. This allowed Gorizont 21 to be repositioned from mid-November to late-December for the inauguration of a new station at 145 degrees E. As of 6 September 2001 located at 96.68 deg E drifting at 0.011 deg W per day. As of 2007 Mar 11 located at 116.96E drifting at 0.001E degrees per day.
Gorizont 29 (18 November 1993) and 30 (20 May 1994) were launched for Rimsat, Ltd., to provide communications services in the Pacific region under an agreement signed in 1992 between Rimsat and the Applied Mechanics NPO. Gorizont 29 was located at 130 degrees E in accordance with a lease arrangement with Rimsat Corporation (using slots allocated to Tonga by the International Telecommunications Union). Intended for use under commercial conditions. Positioned in geosynchronous orbit at 130 deg E in 1993-1997; 161 deg E in 1997-1998; 130 deg E in 1999. As of 5 September 2001 located at 130.39 deg E drifting at 0.011 deg W per day. As of 2007 Mar 8 located at 168.05E drifting at 0.374W degrees per day.
Stationed at 142.5 deg E as 'Rimsat-2' - leased to Rimsat Corporation, using an orbital slot allocated to Tonga. Communications satellite intended for use under commercial conditions. Positioned in geosynchronous orbit at 142 deg E in 1994-1997; 122 deg E in 1997-1999; 142 deg E in 1999. As of 5 September 2001 located at 142.86 deg E drifting at 0.016 deg W per day. As of 2007 Mar 9 located at 173.22W drifting at 0.132W degrees per day.
Communications satellite. First successful Proton/Briz-M launch. The Proton placed the Briz-M/Gorizont payload stack into a suborbital trajectory. The stage then performed four maneuvers to put the satellite into geosynchronous orbit:
