Thor Agena D
Part of Thor Family
Thor Agena A
Thor Agena A

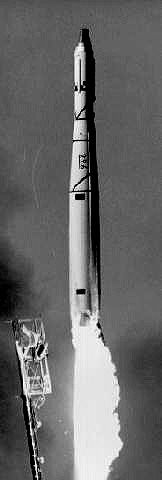

Credit: US Air Force
American orbital launch vehicle. Two stage vehicle consisting of 1 x Thor DM-21 + 1 x Agena D

AKA: DSV-2A;SLV-2. Status: Retired 1963. First Launch: 1962-06-28. Last Launch: 1963-07-19. Number: 13 . Thrust: 667.20 kN (149,993 lbf). Gross mass: 56,507 kg (124,576 lb). Height: 31.00 m (101.00 ft). Diameter: 2.44 m (8.00 ft).

n 1985 dollars. Flyaway Unit Cost 1985$: 19.560 million. Flyaway Unit Cost 1985$: 22.170 million.

Stage Data - Thor Agena D

  • Stage 1. 1 x Thor DM-19. Gross Mass: 49,340 kg (108,770 lb). Empty Mass: 3,125 kg (6,889 lb). Thrust (vac): 758.711 kN (170,565 lbf). Isp: 282 sec. Burn time: 165 sec. Isp(sl): 248 sec. Diameter: 2.44 m (8.00 ft). Span: 2.44 m (8.00 ft). Length: 18.42 m (60.43 ft). Propellants: Lox/Kerosene. No Engines: 1. Engine: LR-79-7. Status: Out of Production.
  • Stage 2. 1 x Agena B. Gross Mass: 7,167 kg (15,800 lb). Empty Mass: 867 kg (1,911 lb). Thrust (vac): 71.166 kN (15,999 lbf). Isp: 285 sec. Burn time: 240 sec. Isp(sl): 0.0000 sec. Diameter: 1.52 m (4.98 ft). Span: 1.52 m (4.98 ft). Length: 7.09 m (23.26 ft). Propellants: Nitric acid/UDMH. No Engines: 1. Engine: Bell 8081. Status: Out of Production.


More at: Thor Agena D.

Family: orbital launch vehicle. Country: USA. Engines: LR79-7, Bell 8081. Spacecraft: GRAB, KH-5, Lofti, Injun, Oscar, SECOR, SURCAL, Ferret, KH-4, Starfish, NRL ELINT, RADOSE, GGSE, AFP-43, Calsphere, DODECAPOLE, Timation. Projects: ELINT. Launch Sites: Vandenberg, Vandenberg SLC2E, Vandenberg SLC1E, Vandenberg SLC2W. Stages: Thor DM-21, Agena D. Agency: Douglas.

1961 August 25 - . LV Family: Thor, Atlas. Launch Vehicle: Atlas Agena D, Thor Agena D.
  • Lockheed was awarded an Air Force letter contract to develop and manufacture the first 12 flight models of the standardized configuration Agena D (Standard Stage OlA, SS-01A). - .

1962 May 29 - . LV Family: Atlas, Thor. Launch Vehicle: Atlas Agena D, Thor Agena D.
  • The Defense Department and NASA signed a joint agreement that authorized the Defense Department to develop a standardized Agena D upper stage for joint use with Atlas and Thor booster stages. - . The Agena would use present flight-proven equipment, stress simplification of vehicle design, permit adaptability to advanced components without any basic changes, and permit production at lower costs..

1962 June 28 - . 01:09 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC2E. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • KH-4 9038 - . Payload: KH-4 s/n 9038 / Agena D 1151. Mass: 1,150 kg (2,530 lb). Nation: USA. Agency: USAF. Class: Surveillance. Type: Military surveillance satellite. Spacecraft Bus: WS-117. Spacecraft: KH-4. Decay Date: 1962-09-14 . USAF Sat Cat: 316 . COSPAR: 1962-A-Gamma-1. Apogee: 698 km (433 mi). Perigee: 205 km (127 mi). Inclination: 76.0000 deg. Period: 93.60 min.

    The first Agena D (#1151) upper stage vehicle was successfully flown on a Thor booster (#340) launched from Vandenberg AFB. The Lockheed Agena D was a redesign of the basic Agena B and was intended to be the standard stage vehicle for most Defense Department and NASA programs. The program was begun in August 1961, revised and accelerated in November, and had its first flight in June 1962. KH-4; film capsule recovered 4.1 days later. Severe corona static.


1962 August 2 - . 00:17 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC2E. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • KH-4 9041 - . Payload: KH-4 s/n 9041 / Agena D 1152. Mass: 1,150 kg (2,530 lb). Nation: USA. Agency: USAF. Class: Surveillance. Type: Military surveillance satellite. Spacecraft Bus: WS-117. Spacecraft: KH-4. Decay Date: 1962-08-22 . USAF Sat Cat: 360 . COSPAR: 1962-A-Kappa-1. Apogee: 423 km (262 mi). Perigee: 212 km (131 mi). Inclination: 83.0000 deg. Period: 90.80 min. KH-4; film capsule recovered 4.1 days later. Severe corona and radiation fog..

1962 August 29 - . 01:00 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC2W. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • KH-4 9044 - . Payload: KH-4 s/n 9044 / Agena D 1153. Mass: 1,150 kg (2,530 lb). Nation: USA. Agency: USAF. Class: Surveillance. Type: Military surveillance satellite. Spacecraft Bus: WS-117. Spacecraft: KH-4. Decay Date: 1962-09-10 . USAF Sat Cat: 377 . COSPAR: 1962-A-Sigma-1. Apogee: 400 km (240 mi). Perigee: 187 km (116 mi). Inclination: 65.2000 deg. Period: 90.40 min. KH-4; film capsule recovered 4.1 days later. Erratic vehicle attitude. Radiation fog minimal..

1962 September 29 - . 23:34 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC2W. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • KH-4 9045 - . Payload: KH-4 s/n 9045 / Agena D 1154. Mass: 1,150 kg (2,530 lb). Nation: USA. Agency: USAF. Class: Surveillance. Type: Military surveillance satellite. Spacecraft Bus: WS-117. Spacecraft: KH-4. Decay Date: 1962-10-08 . USAF Sat Cat: 427 . COSPAR: 1962-B-Beta-1. Apogee: 388 km (241 mi). Perigee: 190 km (110 mi). Inclination: 65.4000 deg. Period: 90.30 min. KH-4. First use of stellar camera, erratic vehicle attitude, numerous light leaks..

1962 October 26 - . 16:14 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC2W. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • Starfish Radiation 1 - . Payload: Star-Rad 1 / Agena D 1401. Mass: 1,100 kg (2,400 lb). Nation: USA. Agency: USAF. Class: Earth. Type: Magnetosphere satellite. Spacecraft: Starfish. Decay Date: 1967-10-05 . USAF Sat Cat: 444 . COSPAR: 1962-B-Kappa-1. Apogee: 5,458 km (3,391 mi). Perigee: 197 km (122 mi). Inclination: 71.4000 deg. Period: 146.50 min. Artificial radiation data..

1962 December 4 - . 21:30 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC2W. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • KH-4 9049 - . Payload: KH-4 s/n 9049 / Agena D 1155. Mass: 1,150 kg (2,530 lb). Nation: USA. Agency: USAF. Class: Surveillance. Type: Military surveillance satellite. Spacecraft Bus: WS-117. Spacecraft: KH-4. Decay Date: 1962-12-08 . USAF Sat Cat: 490 . COSPAR: 1962-B-Sigma-1. Apogee: 273 km (169 mi). Perigee: 194 km (120 mi). Inclination: 65.1000 deg. Period: 89.20 min. KH-4. Mission failed. During air catch chute tore, capsule sank..

1962 December 13 - . 04:07 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC2E. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • Black Sphere - . Payload: NRL PL120 / Poppy 1A (Poppy 20-inch). Mass: 23 kg (50 lb). Nation: USA. Agency: USAF, USN. Class: Surveillance. Type: Naval signals intelligence satellite. Spacecraft: Poppy. Decay Date: 1967-02-09 . USAF Sat Cat: 502 . COSPAR: 1962-B-Tau-1. Apogee: 2,385 km (1,481 mi). Perigee: 230 km (140 mi). Inclination: 70.3000 deg. Period: 111.80 min. First launch of a pair of Poppy naval signals intelligence satellites, which would lead to the NOSS production series..
  • SURCAL 2A - . Payload: NRL PL121 / Poppy 1B (Poppy 20-inch). Mass: 3.00 kg (6.60 lb). Nation: USA. Agency: USAF, USN. Class: Surveillance. Type: Naval signals intelligence satellite. Spacecraft: Poppy. Decay Date: 1963-07-01 . USAF Sat Cat: 507 . COSPAR: 1962-B-Tau-3. Apogee: 2,762 km (1,716 mi). Perigee: 222 km (137 mi). Inclination: 70.2000 deg. Period: 115.80 min. Poppy naval signals intelligence satellite. Officially: Space craft engaged in investigation of spaceflight techniques and technology (US Cat A)..
  • Calsphere 1A - . Mass: 23 kg (50 lb). Nation: USA. Agency: USAF, USN. Class: Surveillance. Type: Naval signals intelligence satellite. Spacecraft: Calsphere. Decay Date: 1967-02-05 . USAF Sat Cat: 513 . COSPAR: 1962-B-Tau-5. Apogee: 2,069 km (1,285 mi). Perigee: 228 km (141 mi). Inclination: 70.3000 deg. Period: 108.40 min. Surveillance calibration..
  • Injun 3 - . Mass: 52 kg (114 lb). Nation: USA. Agency: USAF, USN. Class: Earth. Type: Magnetosphere satellite. Spacecraft: Injun. Decay Date: 1968-08-25 . USAF Sat Cat: 504 . COSPAR: 1962-B-Tau-2. Apogee: 2,406 km (1,495 mi). Perigee: 240 km (140 mi). Inclination: 70.3000 deg. Period: 112.10 min. Radiation decay data. Space craft engaged in investigation of spaceflight techniques and technology (US Cat A). .
  • SURCAL 1A - . Mass: 37 kg (81 lb). Nation: USA. Agency: USAF, USN. Class: Surveillance. Type: Radar calibration target. Spacecraft: SURCAL. Decay Date: 1966-01-18 . USAF Sat Cat: 508 . COSPAR: 1962-B-Tau-4. Apogee: 2,160 km (1,340 mi). Perigee: 227 km (141 mi). Inclination: 70.3000 deg. Period: 109.30 min. Space craft engaged in investigation of spaceflight techniques and technology (US Cat A). .

1962 December 14 - . 21:26 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC1E. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • KH-4 9050 - . Payload: KH-4 s/n 9050 / Agena D 1156. Mass: 1,150 kg (2,530 lb). Nation: USA. Agency: USAF. Class: Surveillance. Type: Military surveillance satellite. Spacecraft Bus: WS-117. Spacecraft: KH-4. Decay Date: 1963-01-08 . USAF Sat Cat: 505 . COSPAR: 1962-B-Phi-1. Apogee: 386 km (239 mi). Perigee: 200 km (120 mi). Inclination: 70.0000 deg. Period: 90.30 min. KH-4; film capsule recovered 4.1 days later. Best mission to date..

1963 January 7 - . 21:09 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC2E. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • KH-4 9051 - . Payload: KH-4 s/n 9051 / Agena D 1157 / OPS 0048. Mass: 1,150 kg (2,530 lb). Nation: USA. Agency: CIA, NRO. Class: Surveillance. Type: Military surveillance satellite. Spacecraft Bus: WS-117. Spacecraft: KH-4. Decay Date: 1963-01-24 . USAF Sat Cat: 525 . COSPAR: 1963-002A. Apogee: 384 km (238 mi). Perigee: 202 km (125 mi). Inclination: 82.0000 deg. Period: 90.30 min. KH-4. Erratic vehicle attitude. Frame ephemeris not created..

1963 April 1 - . 23:01 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC1E. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • KH-4 9053 - . Payload: KH-4 s/n 9053 / Agena D 1160 / OPS 0720. Mass: 1,150 kg (2,530 lb). Nation: USA. Agency: CIA, NRO. Class: Surveillance. Type: Military surveillance satellite. Spacecraft Bus: WS-117. Spacecraft: KH-4. Decay Date: 1963-04-26 . USAF Sat Cat: 562 . COSPAR: 1963-007A. Apogee: 408 km (253 mi). Perigee: 198 km (123 mi). Inclination: 74.9000 deg. Period: 90.50 min. KH-4; film capsule recovered 3.1 days later. Best imagery to date..

1963 April 26 - . 20:13 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC2E. LV Family: Thor. Launch Vehicle: Thor Agena D. FAILURE: Attitude sensors were misaligned. No orbit.. Failed Stage: U.
  • KH-5 9055A - . Payload: KH-5 s/n 9055A. Mass: 1,500 kg (3,300 lb). Nation: USA. Agency: USAF. Class: Surveillance. Type: Military surveillance satellite. Spacecraft Bus: WS-117. Spacecraft: KH-5. Decay Date: 1963-04-26 . Mission failed..

1963 June 15 - . 14:29 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC2E. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • Lofti 2A - . Mass: 26 kg (57 lb). Nation: USA. Agency: USN. Class: Technology. Type: Communications technology satellite. Spacecraft: Lofti. Decay Date: 1963-07-18 . USAF Sat Cat: 601 . COSPAR: 1963-021B. Apogee: 876 km (544 mi). Perigee: 170 km (100 mi). Inclination: 69.9000 deg. Period: 95.10 min. VLF experiments. Space craft engaged in investigation of spaceflight techniques and technology (US Cat A). .
  • RADOSE 112 - . Payload: NRL PL 112 / Poppy 2B (Poppy 20-inch). Mass: 25 kg (55 lb). Nation: USA. Agency: USN. Class: Surveillance. Type: Naval signals intelligence satellite. Spacecraft: Poppy. Decay Date: 1963-07-30 . USAF Sat Cat: 600 . COSPAR: 1963-021D. Apogee: 875 km (543 mi). Perigee: 170 km (100 mi). Inclination: 69.9000 deg. Period: 95.10 min. Poppy naval signals intelligence satellite. Official and secondary mission: Radiation dosimeter measurements. Space craft engaged in investigation of spaceflight techniques and technology (US Cat A)..
  • Solrad 6A - . Payload: NRL PL110 / Poppy 2A (Poppy 24-inch). Mass: 39 kg (85 lb). Nation: USA. Agency: USN. Class: Surveillance. Type: Naval signals intelligence satellite. Spacecraft: Poppy. Decay Date: 1963-08-01 . USAF Sat Cat: 599 . COSPAR: 1963-021C. Apogee: 869 km (539 mi). Perigee: 170 km (100 mi). Inclination: 69.9000 deg. Period: 95.10 min.

    First launch of a triplet of Poppy naval signals intelligence satellites, which would lead to the NOSS production series. Official and secondary mission: Solar radiation data. Space craft engaged in investigation of spaceflight techniques and technology (US Cat A).

  • USN satellite - . Payload: NRL PL130 / Poppy 2C / RADOSE (Poppy 24-inch). Mass: 35 kg (77 lb). Nation: USA. Agency: USN. Class: Surveillance. Type: Naval signals intelligence satellite. Spacecraft: Poppy. Decay Date: 1963-07-27 . USAF Sat Cat: 598 . COSPAR: 1963-021E. Apogee: 859 km (533 mi). Perigee: 170 km (100 mi). Inclination: 69.9000 deg. Period: 94.90 min. Poppy naval signals intelligence satellite..
  • SURCAL 1B - . Mass: 3.00 kg (6.60 lb). Nation: USA. Agency: USN. Class: Surveillance. Type: Radar calibration target. Spacecraft: SURCAL. Decay Date: 1963-07-05 . USAF Sat Cat: 597 . COSPAR: 1963-021F. Apogee: 802 km (498 mi). Perigee: 172 km (106 mi). Inclination: 69.9000 deg. Period: 94.40 min. Surveillance Calibration. Space craft engaged in investigation of spaceflight techniques and technology (US Cat A). .

1963 July 19 - . 00:00 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC2E. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • KH-4 9057 - . Payload: KH-4 s/n 9057 / Agena D 1412 / OPS 1266. Mass: 1,150 kg (2,530 lb). Nation: USA. Agency: CIA, NRO. Class: Surveillance. Type: Military surveillance satellite. Spacecraft Bus: WS-117. Spacecraft: KH-4. Decay Date: 1963-08-13 . USAF Sat Cat: 621 . COSPAR: 1963-029A. Apogee: 382 km (237 mi). Perigee: 197 km (122 mi). Inclination: 82.9000 deg. Period: 90.40 min. KH-4. Best mission to date..

1968 January 17 - . Launch Site: Vandenberg. Launch Complex: Vandenberg. LV Family: Thor. Launch Vehicle: Thor Agena D.
  • Final launch of a Thrust-Augmented-Thor/Agena - . Nation: USA. Final launch of a Thrust-Augmented-Thor/Agena space booster from Vandenberg (first launch on 28 February 1963)..
