Stardust
Stardust
Stardust
American comet probe. Stardust encountered comet Wild-2 on 2 January 2004 and collect samples of cometary dust and volatiles while flying through the coma at a distance of 250 km. The samples were returned to Earth in a separable reentry capsule for analysis on 15 January 2006. Following an encounter with comet Tempel-1 on 15 February 2011, Stardust was decommissioned and put into safe mode.

Status: Operational 1999. First Launch: 1999-02-07. Last Launch: 1999-02-07. Number: 1 . Gross mass: 370 kg (810 lb).

The Stardust spacecraft was derived from the SpaceProbe deep space bus developed by Lockheed Martin Astronautics. This new lightweight spacecraft incorporated components which were either operating in space or flight qualified and manifested to fly.

The total weight of the spacecraft including the propellant needed for deep space maneuvers was 380 kilograms. The overall length of the main bus was 1.7 meters.

Science Payload

  • Aerogel Sample Collectors - Comet and interstellar particles were collected in ultra low density silica aerogel. More than 1,000 square centimeters of collection area was provided for each type of particle (cometary and interstellar).
  • Comet and Interstellar Dust Analyzer (CIDA) - The CIDA instrument was a time-of-flight mass spectrometer that determined the composition of individual dust grains which collided with a silver impact plate.
  • Navigation Camera (NavCam) - The Navigation Camera was used for targeting the flyby of the Wild 2 nucleus, but also provided high-resolution science images of the comet.
  • Dust Flux Monitors (DFM) - The DFM instrument, mounted on the front of the Whipple shield, monitored the flux and size distribution of particles in the environment.
Sample Return Capsule

The Sample Return Capsule (SRC) was a 60-degree blunt body re-entry capsule for landing the returned sample on Earth. The capsule was encased in PICA and SLA-561 ablator materials to protect the samples stowed in its interior from the heat of re-entry. A parachute slowed its descent to the Earth's surface to prevent damage to the cargo of comet samples.

Propulsion - Because it was on a low-energy trajectory for its flyby of comet Wild 2 and return to Earth, aided by a gravity-assisted boost maneuver as it flew by the Earth for the first time, the Stardust spacecraft needed only a relatively modest propulsion system. This was provided by ultra pure hydrazine (N2H4) monopropellant.

Attitude Control - The Stardust spacecraft was 3-axis stabilized in all mission phases, following separation from the launch vehicle. Stabilization was accomplished using eight 0.45 kgf thrusters and eight 0.1 kgf thrusters mounted in four clusters of 4 thrusters each. The primary attitude determination was via the star camera and the inertial measurement unit (IMU), and was backed up by analogue sun sensors. The IMUs were needed only during trajectory correction maneuvers, and during the fly-through of the cometary coma when stars might be difficult to detect. Otherwise, the vehicle could be operated in an all-stellar mode.

The Stardust spacecraft was 3-axis stabilized in all mission phases, following separation from the launch vehicle. The primary attitude determination was via the star camera and the inertial measurement unit (IMU), and was backed up by analogue sun sensors. The IMUs were needed only during trajectory correction maneuvers, and during the fly-through of the cometary coma when stars may be difficult to detect. Otherwise, the vehicle can be operated in an all-stellar mode.

Command & Data Handling - The RAD6000 central processing 32-bit unit embedded in the spacecraft's Command and Data Handling (C&DH) subsystem provided computing capability for all spacecraft subsystems, including the payload elements. Electronic cards were provided to interface instruments and subsystems to the C&DH subsystem. 128 Mbytes of data storage was provided on the processor card, although the spacecraft used approximately 20% of this for its own internal programs. The rest of the space in the memory was used for science programs and data storage for sending back to Earth 600 megabits (Mb) of images taken by the navigation camera, 100 Mb by the Comet Interstellar Dust Analyzer (CIDA) instrument, and 16 Mb by the Dust Flux Monitor (DFM).

Telecommunications - Primary communication between the Earth and the orbiter was by use of the Deep Space Network (DSN) X-band (up/down) link and the orbiter's deep space transponder developed for the Cassini spacecraft, a 15 Watt RF solid state amplifier, and a 0.6 meter (2 ft) diameter fixed high gain parabolic antenna.

Power - Two non-gimbaled solar arrays were deployed immediately after launch. They provided 6.6 square meters of solar energy to power the Stardust spacecraft. One nickel-hydrogen (NiH2) 16 amp-hour battery using common pressure vessel (CPV) cell pairs provided power during eclipses and for peak power operations. The electrical power control electronics were derived primarily from the Small Spacecraft Technology Initiative (SSTI) spacecraft development.

Thermal Control - The thermal control subsystem used passive methods and louvers to control the temperature of the batteries and the solid state power amplifiers. Passive coatings as well as multi-layer insulation blankets were used to control other temperatures. Where needed, radiators were used to take the excess heat out of the spacecraft components to keep them at their proper operating temperature.

Structure - The Stardust spacecraft structure was in the form of a rectangular box, with approximate dimensions of 1.6 meters long by a square cross-section of 0.66 meters on each side. Panels used graphite fibers with polycyanate as face sheets and aluminum honeycomb as the core.

Redundancy - Virtually all spacecraft subsystem components were redundant with critical items cross-strapped. The battery included an extra pair of cells. A software fault protection system was used to protect the spacecraft from reasonable, credible faults but also had resiliency built into it so many faults not anticipated could be accommodated without taking the spacecraft down.

Whipple Shield - The Whipple shield shadowed the spacecraft to protect it during the high speed encounter with particles in the cometary coma. Bumper shields were composite panels which disrupt particles as they impact. Nextel blankets of ceramic cloth further dissipated and spread the particle debris. Three blankets were used in the main body shield, and two were used in the solar array shields. The composite Catcher absorbed all of the debris for primary particles up to 1 cm in diameter for the shield protecting the spacecraft main body.

NASA NSSDC Master Catalog Description

The primary objective of the Discovery class Stardust mission is to fly by the comet P/Wild 2 and collect samples (at least 1000 analyzable particles of diameter >15 microns) of dust and volatiles from the coma of the comet. It will then return these samples to Earth for detailed study. The secondary objectives are to collect and return to Earth at least 100 interstellar particles of diameter >0.1 micron, to obtain 65 images of the Wild 2 nucleus at resolutions of at least 67 microradians/pixel as well as images of the Wild 2 coma, and to perform in situ compositional analysis of cometary particles within the coma. The tertiary objectives are to perform in situ compositional analysis of interstellar grains, interplanetary dust and other cosmic particles, to collect Wild 2 coma volatiles, to determine Wild 2 coma dust flux and size distribution, to measure integrated dust fluence, large particle momentum and opportunistic estimate of the upper limit of the comet's mass, and to obtain dust flux profiles through Wild 2's coma. On Earth the cometary samples, representing primitive substances from the formation of the solar system, will undergo detailed analyses of the elemental, isotopic, mineralogical, chemical, and biogenic properties. The samples of interstellar dust, material from outside our solar system, will be carefully examined on Earth in regards to composition and size and velocity distribution. Stardust also flew by and imaged asteroid 5535 Annefrank.

Spacecraft and Subsystems

The Stardust spacecraft consists of a box-shaped main bus 1.6 m long, 0.66 m wide and 0.66 m deep with a high gain dish antenna attached to one face of the bus. The total mass of the spacecraft including the return capsule and 85 kg of propellant is 385 kg. The bus is made of flat panels fabricated with thin sheets of graphite fibers in polycyanate resin covering a lightweight aluminum honeycomb core. Two long (4.8 m tip-to-tip) rectangular solar arrays are connected by struts extending to the opposite sides of the spacecraft extending along the long axis of the spacecraft with their surfaces in the same plane as this face, extending parallel to each other in their long directions. The short cone-shaped 0.8 m diameter, 0.5 m high, 46 kg sample reentry capsule is attached at its narrow end to the back face of the bus. A paddle shaped sample collection disc can be extended from the capsule during periods of sampling, and stored inside the capsule enclosed by a cover when not in use. The propulsion units are on the rear face of the craft. A Whipple dust shield on the front of the craft protects the main core bus and is equipped with dust flux monitors, vibro-acoustic sensors which will be able to detect particle impacts on the shield. Two smaller shields protect the solar arrays.

The spacecraft is also equipped with an optical navigation camera, a dust flux monitor, and a dust spectrometer/particle impact analyzer. There are no scan platforms, all science instruments are body-mounted. Propulsion is provided by a monopropellant hydrazine system. Attitude control is maintained by eight 4.4 N thrusters and eight 0.9 N thrusters, all mounted on the bottom of the spacecraft away from the sample collector to avoid contamination. Three axis attitude knowledge is given by a star camera and gyroscopic inertial measurement unit. Power is supplied to the craft by the silicon solar arrays which provide from 170 to 800 W depending on distance from the Sun. At the Wild-2 encounter about 330 W will be generated. Telecommunications are via X-band through a low gain antenna, medium gain horn, and 0.6 m diameter high gain dish. The system power is 15 W, the expected data rate at time of encounter is 7.9 kbits/sec using the 70 m Deep Space Network antennas on Earth.

Sample Collection

Sample collection was achieved with the use of aerogel, a low-density (0.02 gm/cc) inert microporous silica-based substance which will allow capture of high-relative-speed particles with minimal physical and chemical alteration. The aerogel is in the form of a single disc-shaped sheet held by modular aluminum cells and deployed on a paddle. The aerogel is simply exposed to space during sample collection periods and stowed in the sample vault at other times. One side of the aerogel (the A side, 3 cm thick) will be used for collection of cometary samples and the other (B, 1 cm thick) side for interstellar dust. The appropriate side will be oriented toward the expected particle flux and particles striking the aerogel will be slowed down and trapped within. The number of particles should be small and the impacts will leave tracks in the aerogel. After all collections were completed, the aerogel was sealed in the sample vault of the sample reentry capsule, and the samples were recovered on Earth for study. The sample reentry capsule also contains an aeroshield/basecover, navigation recovery aids (GPS translator and emergency S-band beacon), an event sequencer, and a parachute system.

Mission Profile

After a one day delay Stardust was launched on 7 February at 21:04:15.238 (4:04 p.m. EST). The launch took place from Pad A, Launch Complex 17 at Cape Canaveral Air Station aboard a Delta 7426 (a Delta II Lite launch vehicle with four strap-on solid-rocket boosters and a Star 37FM third stage). The four boosters fell away one minute and 6 seconds after liftoff (1:06 MET, mission elapsed time), the first stage shut down and was ejected at 4:30 MET. The second stage ignited a few seconds later, burned until 9:55 MET, followed by an ~11 minute coast and a reignition of the 2nd stage for 2 minutes. The 2nd stage separated at 24:27 MET and at 25:04 MET the 3rd stage ignited and burned for about 2 minutes. Stardust separated from the 3rd stage at 27:19 MET and opened its solar arrays 4 minutes later. The spacecraft is now coasting in an elliptical heliocentric orbit.

The first interstellar dust collection took place from 22 February to 1 May 2000. After one solar orbit, an Earth flyby on 15 January 2001 at 6008 km altitude was used to boost the spacecraft aphelion to 2.7 AU and the inclination to 3.6 degrees. Another period of interstellar dust collection opened July to December 2002. On 2 November 2002 at 04:50 UT (1 Nov at 11:50 p.m. EST) Stardust flew within 3300 km of asteroid 5535 Annefrank. The relative velocity was 7 km/s. The dust collectors remained open throughout the flyby and images of the asteroid were taken. A second orbit of the sun was completed in mid-2003.

The spacecraft entered the coma of comet P/Wild 2 on 31 December 2003. Close encounter took place on 2 January 2004. The fly-by had a closest approach within 250 km at roughly 19:45 UT (2:45 p.m. EST) at a relative velocity of about 6.1 km/s and took place 1.85 AU from the Sun and 2.6 AU from Earth. The sample collector was deployed on 24 December 2003 and was retracted, stowed, and sealed in the sample vault of the sample reentry capsule 6 hours after the fly-by. 72 images of the comet nucleus were also obtained, with predicted coverage of the entire sunlit side at a resolution of 30 m or better. The first (bumper) layer of the Whipple shield was breached by particle impacts at least ten times during the flyby.

On 15 January 2006 the capsule separated from the main craft (with a stabilizing spin of 1.5 rpm) at 5:57 UT (12:57 a.m. EST) and entered the atmosphere four hours later at 9:57 UT (4:57 a.m. EST). An aeroshell slowed the capsule down initially for about ten minutes, the drogue parachute was deployed at 10:00 UT and the main parachute 5 minutes later at an altitude of roughly 3 km. The capsule landed at 10:10 UT (5:10 a.m. EST, 3:10 a.m. local Mountain Standard Time) within a 30 x 84 km landing ellipse at the U.S. Air Force Test and Training Range in the Utah desert. High winds caused the capsule to drift about 5 miles north of its entry ground track, but with the aid of a locator beacon the capsule was found at 10:54 UT and was later transported by helicopter to a clean room, arriving at about 13:00 UT. The main spacecraft was diverted so as not to reenter Earth's atmosphere and is now in orbit around the Sun. It was put into hibernation on 29 January with only its solar panels and receiver active to save it for possible future missions. The spacecraft flew by Earth again for a gravity assist on 14 January 2009.

New Exploration of Tempel 1 (NExT)

Stardust was funded for an extended mission to fly by Comet Tempel 1 on 14 February 2011, the New Exploration of Tempel 1 (NExT) mission, the spacecraft itself is now generally referred to as Stardust/NExT. Tempel 1 was the target of the Deep Impact mission, which delivered an impactor into the surface of Tempel 1 on 4 July of 2005. Stardust revisited the comet to look for signs of modification of the crater and extend the mapping of Tempel 1. The spacecraft flew by Tempel 1 at a distance of 181 km on 15 February at 4:39 UT (14 February, 11:39 p.m. EST) following an encounter targeting period that started 18 October 2010. The images returned showed the impact crater caused by the Deep Impact mission. Stardust/NExT underwent a decommissioning burn and was commanded into safe mode with its transmitter off on 25 March 2011 at 00:30 UT (24 March 8:30 p.m. EDT).

Comet P/Wild 2

Comet P/Wild 2 is a newcomer to the inner solar system and therefore represents a relatively 'fresh' comet which has not been overly heated and degassed by the Sun. Originally in an orbit in the region between Jupiter and Uranus (4.9 to 25 AU), its orbit was altered by a close pass by Jupiter on 10 September 1974. It now orbits between Mars and Jupiter (1.58 to 5.2 AU). The comet is approximately 5.4 km across. Comets were formed at the same time as the solar system and are made up of primitive condensates and grains incorporated into them at this time. The samples from the coma are expected to provide insights into the composition and dynamics of the early solar system.The interstellar dust grains represent a flux of fresh material entering the solar system from the direction of the constellation Scorpio. These particles are smaller and will impact at a higher velocity than the cometary particles. The size distribution, velocity profile, and compositional make-up of these particles are important to the study of processes taking place outside our solar system.

The total mission cost of Stardust was approximately $199.6 million, of which roughly $128.4 million was the cost of development and construction of the spacecraft and $40 million was for mission operations.

Family: Comet. Country: USA. Launch Vehicles: Thor, Delta, Delta 2 7000, Delta 7426-9.5. Projects: Discovery series. Launch Sites: Cape Canaveral, Cape Canaveral LC17A. Agency: NASA, Astro Space. More at: 6941, 13216. Bibliography: 2, 408, 4088, 4089, 4090, 4091, 4092, 4093, 4094, 4095.


Photo Gallery

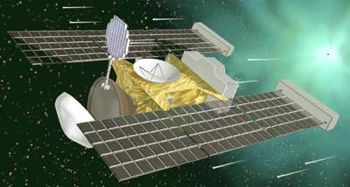

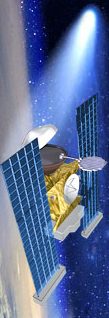

StardustStardust
Credit: Manufacturer Image



1999 February 7 - . 21:04 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC17A. Launch Pad: SLC17A. LV Family: Thor. Launch Vehicle: Delta 7426-9.5.
  • Stardust - . Payload: Discovery 4. Mass: 370 kg (810 lb). Nation: USA. Agency: JPL. Manufacturer: Martin. Program: Discovery series. Class: Comet. Type: Comet probe. Spacecraft Bus: Stardust. Spacecraft: Stardust. USAF Sat Cat: 25618 . COSPAR: 1999-003A.

    Stardust was to fly within 100 km of comet 81P/Wild-2 in January 2004 and recover cometary material using an aerogel substance. A return capsule would land on a lake bed in Utah in January 2006, returning the material to earth. The launch went as planned. The second stage ignited at 21:08 GMT and its first burn put the vehicle into a 185 km x 185 km x 28 degree parking orbit at 21:14 GMT. The second stage second burn at 21:25 changed the orbit to planned values of 178 km x 7184 km x 28.5 degrees. The Star 37FM solid third stage ignited at 21:29 GMT and placed the spacecraft into a 2 year period solar orbit. The spacecraft separated at 21:31 GMT. Meanwhile, the Delta 266 second stage burned a third time on its own, until its propellants were depleted, entering a final orbit of 294 km x 6818 km x 22.5 degrees. The Stardust probe flew past Earth at a distance of 3706 km at 1115 GMT on January 15, 2001, and flew near the Moon at a distance of 98000 km at around 0200 GMT on January 16. The gravity assist flyby changed Stardust's heliocentric orbit from 0.956 x 2.216 AU x 0.0 deg to 0.983 x 2.285 AU x 3.7 deg.


2001 January 15 - .
2002 April 18 - .
  • Stardust At Aphelion (2.72 AU) - . Nation: USA. Spacecraft Bus: Stardust. Spacecraft: Stardust.

2002 August 5 - .
  • Stardust, Begin of second Interstellar Dust Collection - . Nation: USA. Spacecraft Bus: Stardust. Spacecraft: Stardust.

2002 November 2 - .
  • Stardust, Asteroid 5535 Annefrank Flyby, Successful - . Nation: USA. Spacecraft Bus: Stardust. Spacecraft: Stardust.

2002 December 9 - .
  • Stardust, End of second Interstellar Dust Collection - . Nation: USA. Spacecraft Bus: Stardust. Spacecraft: Stardust.

2003 April 3 - .
  • Stardust Enters Solar Conjuction - . Nation: USA. Spacecraft Bus: Stardust. Spacecraft: Stardust.

2003 April 18 - .
  • Stardust Exits Solar Conjunction - . Nation: USA. Spacecraft Bus: Stardust. Spacecraft: Stardust.

2003 December 24 - .
  • Stardust, Aerogel Grid Deployed, Successful - . Nation: USA. Spacecraft Bus: Stardust. Spacecraft: Stardust.

2004 January 2 - .
  • Stardust, Comet Wild 2 Encounter, Successful - . Nation: USA. Spacecraft Bus: Stardust. Spacecraft: Stardust.

2004 October 18 - .
2005 January 22 - .
  • Stardust Enters Solar Conjunction - . Nation: USA. Spacecraft Bus: Stardust. Spacecraft: Stardust.

2005 February 8 - .
  • Stardust Exits Solar Conjunction - . Nation: USA. Spacecraft Bus: Stardust. Spacecraft: Stardust.

2006 January 15 - .
  • Stardust, Capsule Return To Earth - . Nation: USA. Spacecraft Bus: Stardust. Spacecraft: Stardust.
