BOR-5
Part of Buran Family
BOR-5 after flight
BOR-5 after flight

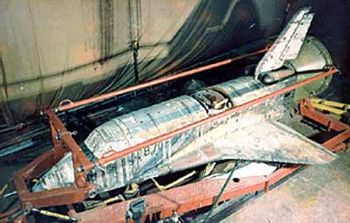

BOR-5 in handling rig after flight
Credit: from Semenov, et. al., Buran, 1995.
Russian spaceplane. The aerodynamic characteristics of Buran at hypersonic speeds were validated by the BOR-5 1:8 sub-scale model of Buran.

Status: Operational 1984. First Launch: 1984-07-05. Last Launch: 1988-06-21. Number: 5 . Gross mass: 1,400 kg (3,000 lb).

The BOR-5 was boosted on sub-orbital trajectories to altitudes of 100 km and velocities of from 4,000 to 7,300 m/s. These proved the handling characteristics, aerodynamic moment, and control effectiveness from Mach 1.5 to Mach 17.5, at Reynolds numbers of from 1.05 to 2.1 and angles of attack from 15 to 40 degrees. They also allowed study of flow separation at the fuselage surface and thermodynamic characteristics of the design. Final results indicated a lift-to-drag ratio of 1.3 at hypersonic speed, 5.0 at Mach 2, and 5.6 at subsonic speed. Typical trajectory: ascent to 120 km; pitch down to drive model in atmosphere at 45 degree at Mach 18.5. None were reflown but at least 4 were recovered.

Family: Spaceplane, Suborbital. Country: Russia. Spacecraft: Buran. Launch Vehicles: R-14, Kosmos 3, K65M-RB. Launch Sites: Kapustin Yar, Kapustin Yar LC107/1. Agency: Molniya bureau. More at: 6397. Bibliography: 189, 81.


Photo Gallery

BOR-5BOR-5
Credit: Manufacturer Image



1984 July 5 - . Launch Site: Kapustin Yar. Launch Complex: Kapustin Yar LC107/1. Launch Pad: LC107/pad?. LV Family: R-14. Launch Vehicle: K65M-RB.
  • BOR-5 sn 501 subscale 1:8 Buran reentry test - . Mass: 1,450 kg (3,190 lb). Nation: Russia. Agency: UNKS. Program: Buran. Spacecraft Bus: Buran. Spacecraft: BOR-5. Apogee: 210 km (130 mi). Range: 2,000 km (1,200 mi). Suborbital test of 1/8 scale model of Buran. Typical trajectory: ascent to 210 km; pitch down to drive model in atmosphere at 45 degree at Mach 18.5. None were reflown but at least 4 were recovered..

1985 April 17 - . Launch Site: Kapustin Yar. Launch Complex: Kapustin Yar LC107/1. Launch Pad: LC107/pad?. LV Family: R-14. Launch Vehicle: K65M-RB.
  • BOR-5 sn 502 subscale 1:8 Buran reentry test - . Mass: 1,450 kg (3,190 lb). Nation: Russia. Agency: UNKS. Program: Buran. Spacecraft Bus: Buran. Spacecraft: BOR-5. Apogee: 210 km (130 mi). Range: 2,000 km (1,200 mi). Suborbital test of 1/8 scale model of Buran. Typical trajectory: ascent to 210 km; pitch down to drive model in atmosphere at 45 degree at Mach 18.5. None were reflown but at least 4 were recovered..

1986 December 26 - . Launch Site: Kapustin Yar. Launch Complex: Kapustin Yar LC107/1. Launch Pad: LC107/pad?. LV Family: R-14. Launch Vehicle: K65M-RB.
  • BOR-5 sn 503 subscale 1:8 Buran reentry test - . Mass: 1,450 kg (3,190 lb). Nation: Russia. Agency: UNKS. Program: Buran. Spacecraft Bus: Buran. Spacecraft: BOR-5. Apogee: 210 km (130 mi). Range: 2,000 km (1,200 mi). Suborbital test of 1/8 scale model of Buran. Typical trajectory: ascent to 210 km; pitch down to drive model in atmosphere at 45 degree at Mach 18.5. None were reflown but at least 4 were recovered..

1987 August 27 - . Launch Site: Kapustin Yar. Launch Complex: Kapustin Yar LC107/1. Launch Pad: LC107/pad?. LV Family: R-14. Launch Vehicle: K65M-RB.
  • BOR-5 sn 504 subscale 1:8 Buran reentry test - . Mass: 1,450 kg (3,190 lb). Nation: Russia. Agency: UNKS. Program: Buran. Spacecraft Bus: Buran. Spacecraft: BOR-5. Apogee: 210 km (130 mi). Range: 2,000 km (1,200 mi). Suborbital test of 1/8 scale model of Buran. Typical trajectory: ascent to 210 km; pitch down to drive model in atmosphere at 45 degree at Mach 18.5. None were reflown but at least 4 were recovered..

1988 June 21 - . Launch Site: Kapustin Yar. Launch Complex: Kapustin Yar LC107/1. Launch Pad: LC107/pad?. LV Family: R-14. Launch Vehicle: K65M-RB.
  • BOR-5 sn 505 subscale 1:8 Buran reentry test - . Mass: 1,450 kg (3,190 lb). Nation: Russia. Agency: UNKS. Program: Buran. Spacecraft Bus: Buran. Spacecraft: BOR-5. Apogee: 210 km (130 mi). Range: 2,000 km (1,200 mi). Suborbital test of 1/8 scale model of Buran. Typical trajectory: ascent to 210 km; pitch down to drive model in atmosphere at 45 degree at Mach 18.5. None were reflown but at least 4 were recovered..
