Saturn C-4B
Part of Saturn V Family

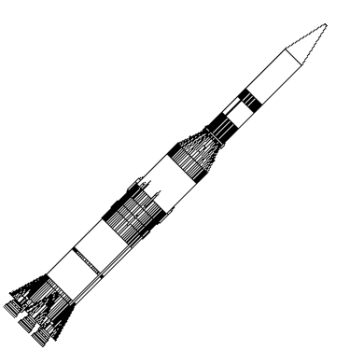

Saturn C-4B 3 Stage
Saturn C-4B 3 Stage
Saturn C-4B 3 Stage version Nov 1961
Credit: © Mark Wade
American orbital launch vehicle. Final configuration of the Saturn C-4 at the time of selection of the Saturn C-5 configuration for the Apollo program in December 1961. Only Saturn configuration with common bulkhead propellant tanks in first stage, resulting in shorter vehicle than less powerful Saturn C-3.

Status: Study 1961. Payload: 95,000 kg (209,000 lb). Thrust: 26,679.90 kN (5,997,880 lbf). Gross mass: 2,051,290 kg (4,522,320 lb). Height: 89.00 m (291.00 ft). Diameter: 10.06 m (33.00 ft). Apogee: 185 km (114 mi).

LEO Payload: 95,000 kg (209,000 lb) to a 185 km orbit at 28.00 degrees. Payload: 31,000 kg (68,000 lb) to a translunar trajectory.

Stage Data - Saturn C-4B

  • Stage 1. 1 x Saturn IC C-4B. Gross Mass: 1,450,984 kg (3,198,872 lb). Empty Mass: 90,686 kg (199,928 lb). Thrust (vac): 30,606.397 kN (6,880,592 lbf). Isp: 304 sec. Burn time: 130 sec. Isp(sl): 265 sec. Diameter: 10.06 m (33.00 ft). Span: 19.00 m (62.00 ft). Length: 33.46 m (109.77 ft). Propellants: Lox/Kerosene. No Engines: 5. Engine: F-1. Status: Study 1961. Comments: Final first stage design of Saturn C-3 (November 1961). Unique S-IC design in that fuel and propellant tank shared common bulkhead; stage was actually shorter than C-3B S-IC.
  • Stage 2. 1 x Saturn II C-5A. Gross Mass: 384,057 kg (846,700 lb). Empty Mass: 31,740 kg (69,970 lb). Thrust (vac): 4,446.648 kN (999,646 lbf). Isp: 420 sec. Burn time: 320 sec. Isp(sl): 200 sec. Diameter: 10.06 m (33.00 ft). Span: 10.06 m (33.00 ft). Length: 21.39 m (70.17 ft). Propellants: Lox/LH2. No Engines: 5. Engine: J-2. Status: Study 1961. Comments: Final common second stage design for Saturn C-3, C-4 and C-5 (November 1961). Developed into Saturn V second stage.
  • Stage 3. 1 x Saturn IVB C-5A. Gross Mass: 102,249 kg (225,420 lb). Empty Mass: 11,563 kg (25,492 lb). Thrust (vac): 889.325 kN (199,928 lbf). Isp: 420 sec. Burn time: 415 sec. Isp(sl): 200 sec. Diameter: 5.59 m (18.33 ft). Span: 5.59 m (18.33 ft). Length: 19.00 m (62.00 ft). Propellants: Lox/LH2. No Engines: 1. Engine: J-2. Status: Study 1961. Comments: Final common third stage design for Saturn C-4 and C-5 (November 1961). Developed into Saturn V second stage. After development started, decision taken to boost performance by increasing diameter to 6.61 m and increasing propellant load.



Family: orbital launch vehicle. People: von Braun. Country: USA. Engines: F-1, J-2. Stages: Saturn IC C-4B, Saturn II C-5A, Saturn IVB C-5A.
Photo Gallery

Saturn C-4B 2 Stage Saturn C-4B 2 Stage
Saturn C-4B 2 Stage version Nov 1961
Credit: © Mark Wade


Saturn A-1 to C-5Saturn A-1 to C-5
Credit: © Mark Wade


Saturn C-4B finalSaturn C-4B final
Saturn C-4B final configuration Nov 1961
Credit: © Mark Wade
