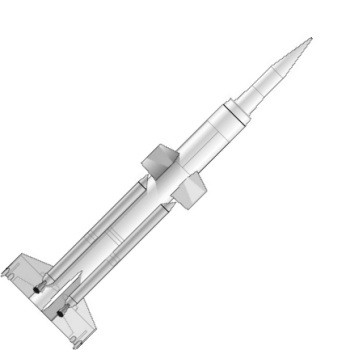

Krug
Krug
Krug
Credit: © Mark Wade
Russian surface-to-air missile. Ramjet-powered long-range surface-to-air missile, deployed by the Soviet Union and its allies.

AKA: 2K11;9M8;Ganef;SA-4. Status: Active. Payload: 150 kg (330 lb). Gross mass: 2,450 kg (5,400 lb). Height: 8.80 m (28.80 ft). Diameter: 0.86 m (2.82 ft). Span: 2.56 m (8.39 ft). Location: Moscow. Apogee: 24 km (15 mi).

Preliminary work on the concept used the artillery-launched KRI flying shell (a flying laboratory used to develop ramjets and surface-to-air missiles by Bondaryuk in the mid-1950's). This eventually evolved into the 2K11 Krug surface-to-air missile. Development into an operational system was authorized by decree 188-88 of 13 February 1958. NII-20 GKRE (later NIEMI, later Antey) was prime contractor, under the management of Chief Designer V P Efremov. The 1S12 observation and targeting system was developed by V V Raizberg at NII-208 GKRE (later NIIIP); the 1S32 guidance system by I M Drize at NII-20 GKRE; the 2P24 launcher and 3M8 surface-to-air missile by L V Lyulev at OKB-8 GKAT (later EMKB Novator named for L V Lyulev); the self-propelled launcher was developed by General Designer A I Autonomov at the Kharkov Machine Works named for V A Malyshev. OKB-8 GKAT occupied a single industrial area within the OAO M I Kalinin Machine Works.

The missile had a two-stage aerodynamic layout with the cruciform wings of each stage at 45 degrees to each other. The wings and stabilizers were lightweight and easily removable for transport of the missile. The rocket was accelerated to ramjet ignition speed by four solid booster rockets. There were two surface-to-air missiles per launcher. The launcher itself was in contact with the guidance station by a radio data link; the missiles talked back over the link, indicating their readiness for launch.

The missile took six years to develop, including development of the 3Ts4 Bondaryuk ramjet, which operated on kerosene. The chief difficulty was that the ramjet only operated well at low angles of attack. Any abrupt maneuver would cause a reduction in thrust or even flameout. Solving this was an enormous challenge. In early tests the missile would become uncontrollable as soon as the first guidance command was received. The electronics aboard the missile were also not adequately shock- and vibration- resistant at first. There were also problems with arrangement of the guidance antennae, which would become masked as the missile maneuvered, also causing it to go out of control.

All of these problems were eventually overcome, and the Krug was accepted for PVO service in 1964.

Maximum target speed 2880 kph. 5 minutes from arrival at a new location to launch readiness; 5 minutes required to depart in 'shoot and scoot' mode. Two missiles per launcher.

Radars: P-40 Long Track target acquisition radar, E band, range 175 km. 1S32 Pat Hand target tracking radar, H band, range 130 km. Thin Skin height finding radar, H band, range 240 km.

Maximum range: 45 km (27 mi). Maximum speed: 3,060 kph (1,900 mph). Minimum range: 11 km (6 mi). Initial Operational Capability: 1965. Floor: 3,000 m (9,800 ft). Surveillance Radar: Long Track/E. Tracking Radar: Pat Hand/H.



Subtopics

17D Russian surface-to-air missile. Prototype air-breathing surface-to-air missile, using air-augmented solid propellant.

18D Russian surface-to-air missile. Variant of the 18D air-breathing surface-to-air missile using a magnesium alloy in the fuel to double the initial launch thrust.

22D Russian surface-to-air missile. Prototype surface-to-air missile, using liquid-propellant ramjets in place of the air-augmented solid propellant of the 17D.

Krug 2K11A Russian surface-to-air missile. The Krug-A 2K11A version of the missile was accepted in 1967. This reduced the minimum altitude capability of the system to targets flying as low as 250 m.

Krug 2K11M Russian surface-to-air missile. The Krug-M 2K11M version appeared in 1971, with an increase in the maximum range to 50 km, and a maximum range against low-altitude targets of 24.5 km.

Krug 2K11M1 Russian surface-to-air missile. A further modernised version, the Krug-M1 2K11M1 began deployment in 1974. This could use an overtaking course to hit fleeing targets up to 20 km away, and reduced the minimum range to 6 to 7 km and reduced the maximum target altitude to 150 m.

Krug 9M316 Russian surface-to-air drone. OAM MZIK developed the aerial targets Virazh and Virazh-M from the 3M8 and 3M8M missiles.

Family: surface-to-air, vehicle-launched. Country: Russia. Agency: Efremov, Lyulev. Bibliography: 563, 571.
