ISS Japanese Experiment Module
Part of ISS Family
NASDA JEM 1999
NASDA JEM 1999
Credit: NASDA via Marcus Lindroos
Japanese manned space station module. Launched to ISS in three sections, 2008-2009. The Japanese Experiment Module (JEM) has been a rare island of stability in the often tumultuous Space Station program.

AKA: Japanese Experiment Module;JEM;Kibo;JEM-PM;JPM. Status: Operational 2008.

Conceived in 1985, JEM consists of a pressurized laboratory mainly dedicated to advanced technology experiments, a logistics module, an unpressurized pallet for vacuum experiments in space plus a small robotic arm. The Japanese National Space Development Agency (NASDA) formally submitted the JEM proposal to NASA in March 1986. The Japanese Space Activities Commission recommended formal participation in the Space Station project five months later and the JEM design changed little since the mid-1980s.

In 1986 the Japanese contribution was estimated to be worth $1.9-3.2 billion for a JEM launch in 1995. By 1990, the schedule had slipped by three years due to NASA budget cuts and Space Station cost overruns. The delays increased the JEM's total cost slightly, from $2.3 billion in 1986 to $2.63 billion in 1993, when the launch was postponed to 1999. Final hardware production began in the mid-1990s and the Japanese robotic arm was tested on a NASA Space Shuttle flight in August 1997. According to plans prior to the Columbia disaster, the JEM would be launched in 2002-03. As of 2007 it appeared the facility would be orbited in 2008.

Like the other International Space Station modules, the interior of the Japanese Experiment Module (JEM) consisted of modular refrigerator-sized 'payload racks.' JEM had twelve such racks but some were required for the module's internal functions. Five racks were available for experiments.


More at: ISS Japanese Experiment Module.

Family: Space station module, USA - Space Stations. Country: Japan. Spacecraft: ISS, Cubesat. Launch Vehicles: Space Shuttle, Soyuz-2-1A, Falcon 9 v1.1. Agency: NASDA.
Photo Gallery

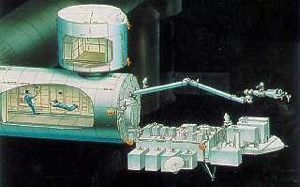

NASDA JEM 1999NASDA JEM 1999
Credit: NASDA via Marcus Lindroos


NASDA JEMNASDA JEM
NASDA Japanese Experiment Module. Japanese Experiment Module (JEM).
Credit: NASDA via Marcus Lindroos

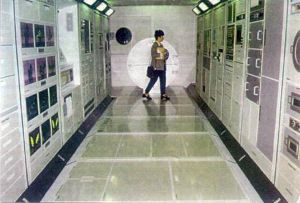

Inside NASDA JEMInside NASDA JEM
Inside Japanese Experiment Module. Like the other International Space Station modules, the interior of the Japanese Experiment Module (JEM) consists of modular refrigerator-sized "payload racks." JEM has twelve such racks but some are required for the module's internal functions. Five racks are available for experiments.
Credit: NASDA via Marcus Lindroos



2015 February 5 - . 12:50 GMT - . Launch Site: ISS. Launch Complex: ISS Japanese Experiment Module. Launch Pad: ISS Kibo RMS.
  • AESP-14 - . Mass: 1.00 kg (2.20 lb). Nation: Brazil. Class: Technology. Type: Technology satellite. Spacecraft: Cubesat. Decay Date: 2015-05-11 . USAF Sat Cat: 40389 . COSPAR: 1998-067FM. Apogee: 405 km (251 mi). Perigee: 397 km (246 mi). Inclination: 51.6000 deg. ISS cubesat deploys resumed after a five-month hiatus following deployer problems. Brazil's AESP-14 cubesat was ejected but appeared not to be transmitting..
  • Flock 1b-27 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-10-14 . USAF Sat Cat: 40422 . COSPAR: 1998-067FN. Apogee: 404 km (251 mi). Perigee: 396 km (246 mi). Inclination: 51.7000 deg. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
  • Flock 1b-28 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-08-07 . USAF Sat Cat: 40423 . COSPAR: 1998-067FP. Apogee: 404 km (251 mi). Perigee: 396 km (246 mi). Inclination: 51.7000 deg. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
  • Flock 1b-21 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-10-12 . USAF Sat Cat: 40427 . COSPAR: 1998-067FQ. Apogee: 402 km (249 mi). Perigee: 395 km (245 mi). Inclination: 51.7000 deg. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
  • Flock 1b-22 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-10-03 . USAF Sat Cat: 40428 . COSPAR: 1998-067FR. Apogee: 402 km (249 mi). Perigee: 395 km (245 mi). Inclination: 51.7000 deg. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
  • Flock 1b-9 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-08-23 . USAF Sat Cat: 40429 . COSPAR: 1998-067FS. Apogee: 407 km (252 mi). Perigee: 392 km (243 mi). Inclination: 51.6000 deg. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
  • Flock 1b-10 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-06-28 . USAF Sat Cat: 40430 . COSPAR: 1998-067FT. Apogee: 413 km (256 mi). Perigee: 398 km (247 mi). Inclination: 51.6000 deg. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
  • Flock 1d'-1 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-10-13 . USAF Sat Cat: 40451 . COSPAR: 1998-067FU. Apogee: 405 km (251 mi). Perigee: 393 km (244 mi). Inclination: 51.6000 deg. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
  • Flock 1d'-2 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-12-27 . USAF Sat Cat: 40452 . COSPAR: 1998-067FV. Apogee: 313 km (194 mi). Perigee: 301 km (187 mi). Inclination: 51.6300 deg. Period: 90.67 min. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
  • Flock 1b-5 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-08-17 . USAF Sat Cat: 40453 . COSPAR: 1998-067FW. Apogee: 407 km (252 mi). Perigee: 394 km (244 mi). Inclination: 51.6000 deg. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
  • Flock 1b-6 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-10-16 . USAF Sat Cat: 40454 . COSPAR: 1998-067FX. Apogee: 407 km (252 mi). Perigee: 392 km (243 mi). Inclination: 51.6000 deg. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
  • TechEdSat-4 - . Mass: 4.00 kg (8.80 lb). Nation: USA. Class: Technology. Type: Technology satellite. Spacecraft: Cubesat. Decay Date: 2015-04-03 . USAF Sat Cat: 40455 . COSPAR: 1998-067FY. Apogee: 402 km (249 mi). Perigee: 393 km (244 mi). Inclination: 51.6000 deg. 3U cubesat of San Jose State University, the University of Idaho, and NASA Ames. Tested Exo-Brake passive de-orbit system..
  • GEARRSat - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Communications. Type: Communications satellite. Spacecraft: Cubesat. Decay Date: 2015-11-08 . USAF Sat Cat: 40456 . COSPAR: 1998-067FZ. Apogee: 404 km (251 mi). Perigee: 395 km (245 mi). Inclination: 51.6000 deg. First 3U Globalstar Risk Reduction satellite from startup Near Space Launch (a Taylor University spinoff), with AFRL, to demo cubesat data relay via the Globalstar system..
  • MicroMAS - . Mass: 6.00 kg (13.20 lb). Nation: USA. Class: Science. Type: Science satellite. Spacecraft: Cubesat. Decay Date: 2015-08-01 . USAF Sat Cat: 40457 . COSPAR: 1998-067GA. Apogee: 406 km (252 mi). Perigee: 393 km (244 mi). Inclination: 51.6000 deg. Three-axis stabilized 3U cubesat by the Space Systems Laboratory. Carried an MIT Lincoln Laboratory microwave radiometer payload..
  • LambdaSat - . Mass: 1.00 kg (2.20 lb). Nation: USA. Class: Technology. Type: Communications technology satellite. Spacecraft: Cubesat. Decay Date: 2015-05-16 . USAF Sat Cat: 40458 . COSPAR: 1998-067GB. Apogee: 405 km (251 mi). Perigee: 393 km (244 mi). Inclination: 51.6000 deg. 1U cubesat built by the Lambda Team of San Jose, California..
  • Flock 1b-11 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-09-07 . USAF Sat Cat: 40459 . COSPAR: 1998-067GC. Apogee: 405 km (251 mi). Perigee: 395 km (245 mi). Inclination: 51.6000 deg. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
  • Flock 1b-12 - . Mass: 5.00 kg (11.00 lb). Nation: USA. Class: Surveillance. Type: Surveillance satellite. Spacecraft: Cubesat. Decay Date: 2015-09-29 . USAF Sat Cat: 40460 . COSPAR: 1998-067GD. Apogee: 405 km (251 mi). Perigee: 395 km (245 mi). Inclination: 51.6000 deg. Part of a Planetary Labs constellation of over 100 3U cubesats to provide continuous optical surveillance of the earth..
