Shuttle FR-3

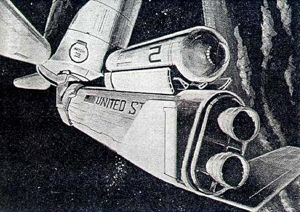

Shuttle FR-3
Credit: NASA
American winged orbital launch vehicle. General Dynamics shuttle proposal phase A of October 1969. Unwinged flat-bottom configuration booster and orbiter with V butterfly-tails.

General Dynamics received a $0.15-million Phase-A extension from NASA/Marshall to further study its shuttle concepts. The Triamese design was abandoned in September 1969 after more detailed analysis indicated that the development cost showed no considerable advantages vs. traditional two-stage systems. It had proven difficult to have one aerodynamic shape serve both as booster and orbiter; too many compromises had to be made. The designers then tried to "stretch" the Triamese orbiter but this, in turn, reduced the design commonality and hence cost savings. The company finally settled for a similar "FR-3A" two-stage design with V-tails to provide hypersonic roll control and aerodynamic stability. The booster/orbiter staging point was at 56.7km altitude and 193 seconds after launch when the vehicles were flying at 3325 meters/second. The straight-sided bodies were designed to accommodate cylindrical propellant tanks efficiently. Variable geometry switch-blade wings would still be used for subsonic flight and landing. This would have reduced the thermal protection system requirement (GD was the only company that still proposed a "hot structure" metallic TPS at the end of Phase A) . But the General Dynamics concept also had the same problem as MSC's/North American's DC-3 design since it had comparatively poor re-entry cross range capabilities

Stage Data - Shuttle FR-3

  • Stage 1. 1 x Shuttle FR-3-1. Gross Mass: 2,169,691 kg (4,783,349 lb). Empty Mass: 234,467 kg (516,911 lb). Thrust (vac): 30,088.430 kN (6,764,148 lbf). Isp: 442 sec. Burn time: 275 sec. Isp(sl): 392 sec. Diameter: 11.19 m (36.71 ft). Span: 25.70 m (84.30 ft). Length: 71.80 m (235.50 ft). Propellants: Lox/LH2. No Engines: 15. Engine: SSME Study. Status: Study 1969 October. Comments: Trapezoidal lifting body configuration.
  • Stage 2. 1 x Shuttle FR-3-2. Gross Mass: 388,189 kg (855,810 lb). Empty Mass: 130,159 kg (286,951 lb). Thrust (vac): 4,549.049 kN (1,022,667 lbf). Isp: 459 sec. Burn time: 251 sec. Isp(sl): 359 sec. Diameter: 7.46 m (24.47 ft). Span: 21.75 m (71.35 ft). Length: 54.57 m (179.03 ft). Propellants: Lox/LH2. No Engines: 2. Engine: SSME Study. Status: Study 1969 October. Comments: Trapezoidal lifting body configuration. Cross range 2419 km.

Status: Study 1969.
Gross mass: 2,557,880 kg (5,639,160 lb).
Height: 86.00 m (282.00 ft).
Diameter: 11.19 m (36.71 ft).
Thrust: 30,243.00 kN (6,798,896 lbf).

More... - Chronology...


Associated Countries
Associated Engines
See also
  • Shuttle The manned reusable space system which was designed to slash the cost of space transport and replace all expendable launch vehicles. It did neither, but did keep NASA in the manned space flight business for 30 years. More...
  • Winged In the beginning, nobody (except Jules Verne) thought anybody would be travelling to space and back in ballistic cannon balls. The only proper way for a space voyager to return to earth was at the controls of a real winged airplane. More...

Associated Manufacturers and Agencies
  • Convair American manufacturer of rockets, spacecraft, and rocket engines. Convair, USA. More...

Associated Stages
  • Shuttle FR-3-1 Lox/LH2 propellant rocket stage. Loaded/empty mass 2,169,691/234,467 kg. Thrust 30,088.43 kN. Vacuum specific impulse 442 seconds. Trapezoidal lifting body configuration. More...
  • Shuttle FR-3-2 Lox/LH2 propellant rocket stage. Loaded/empty mass 388,189/130,159 kg. Thrust 4,549.05 kN. Vacuum specific impulse 459 seconds. Trapezoidal lifting body configuration. Cross range 2419 km. More...
