Saturn INT-21

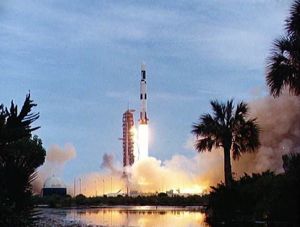

Saturn V Skylab
Credit: NASA
Saturn II stage
Credit: © Mark Wade
S-1C details
Credit: © Mark Wade
American orbital launch vehicle. Saturn variant consisting of S-IC first stage and S-II second stage. This essentially flew once to launch Skylab in 1972, although the IU was located atop the Skylab space station (converted S-IVB stage) rather than atop the S-II as in the INT-21 design.

Liftoff Mass - kgS-IC - No. F-1 MotorsS-II - No. J-2 MotorsPayload - kg - 4.68 G limit
2,209,0004376,000
2,209,0004484,000
2,209,0004589,000
2,762,00053101,000
2,762,00054112,000
2,762,00055116,000

LEO Payload: 115,900 kg (255,500 lb) to a 185 km orbit at 28.00 degrees in 1985 dollars. Flyaway Unit Cost $: 681.500 million.

Stage Data - Saturn INT-21

  • Stage 1. 1 x Saturn IC. Gross Mass: 2,286,217 kg (5,040,245 lb). Empty Mass: 135,218 kg (298,104 lb). Thrust (vac): 38,703.160 kN (8,700,816 lbf). Isp: 304 sec. Burn time: 161 sec. Isp(sl): 265 sec. Diameter: 10.06 m (33.00 ft). Span: 19.00 m (62.00 ft). Length: 42.06 m (137.99 ft). Propellants: Lox/Kerosene. No Engines: 5. Engine: F-1. Status: Out of Production.
  • Stage 2. 1 x Saturn II. Gross Mass: 490,778 kg (1,081,980 lb). Empty Mass: 39,048 kg (86,086 lb). Thrust (vac): 5,165.790 kN (1,161,316 lbf). Isp: 421 sec. Burn time: 390 sec. Isp(sl): 200 sec. Diameter: 10.06 m (33.00 ft). Span: 10.06 m (33.00 ft). Length: 24.84 m (81.49 ft). Propellants: Lox/LH2. No Engines: 5. Engine: J-2. Status: Out of Production.

Status: Study 1967.
Gross mass: 2,916,080 kg (6,428,850 lb).
Payload: 115,900 kg (255,500 lb).
Height: 80.00 m (262.00 ft).
Diameter: 10.06 m (33.00 ft).
Thrust: 33,737.90 kN (7,584,582 lbf).
Apogee: 185 km (114 mi).

More... - Chronology...


Associated Countries
Associated Spacecraft
Associated Engines
  • F-1 Rocketdyne Lox/Kerosene rocket engine. 7740.5 kN. Isp=304s. Largest liquid rocket engine ever developed and flown. Severe combustion stability problems were solved during development and it never failed in flight. First flight 1967. More...

See also
  • Saturn The Saturn launch vehicle was the penultimate expression of the Peenemuende Rocket Team's designs for manned exploration of the moon and Mars. Numerous designs and variants were studied, but in the end only three models - the Saturn I, IB, and V - were built in the 1960's, and then only used to support NASA's Apollo moon landing program. More...
  • Saturn V America's booster for the Apollo manned lunar landing. The design was frozen before a landing mode was selected; the Saturn V could be used for either Earth-Orbit-Rendezvous or Lunar-Orbit-Rendezvous methods. The vehicle ended up with the same payload capability as the 'too large' Nova. The basic diameter was dictated by the ceiling height at the Michoud factory selected for first stage manufacture. Despite the study of innumerable variants, production was ended after only 12 were built and America spent the next fifty years in a pointless slow-motion withdrawal from manned space exploration. More...

Associated Manufacturers and Agencies
  • Von Braun American manufacturer of rockets and spacecraft. Von Braun, USA. More...

Associated Stages
  • Saturn IC Lox/Kerosene propellant rocket stage. Loaded/empty mass 2,286,217/135,218 kg. Thrust 38,703.16 kN. Vacuum specific impulse 304 seconds. Configuration as flown. More...
  • Saturn II Lox/LH2 propellant rocket stage. Loaded/empty mass 490,778/39,048 kg. Thrust 5,165.79 kN. Vacuum specific impulse 421 seconds. Configuration as flown. More...
