16 July 1969 09:32 GMT. Landing Date: 1969-07-24 12:50:35. Flight Time: 8.14 days. Flight Up: Apollo 11. Flight Back: Apollo 11. Call Sign: Columbia/Eagle. Crew: Aldrin, Armstrong, Collins. Backup Crew: Anders, Haise, Lovell. Location of Capsule: National Air and Space Museum (Smithsonian Institution), Washington, DC. Program: Apollo. Of note: First manned lunar landing. On the lighter side: In college, a friend asked Armstrong if he wanted to be the first man on the moon - "No," he answered, "I want to be the first man to come back from the moon"... Collins was asked at a news conference what the most dangerous part of the mission would be. "The part which we have overlooked in our preparations", he replied. It was quite a comedown for the heroes to return to earth and then be put in quarantine in a sealed trailer due to worries about lunar germs. The feeling was accentuated when entered the trailer and were greeted with the sign: PLEASE DON'T FEED THE ANIMALS.First landing on moon. Apollo 11 (AS-506) - with astronauts Neil A. Armstrong,

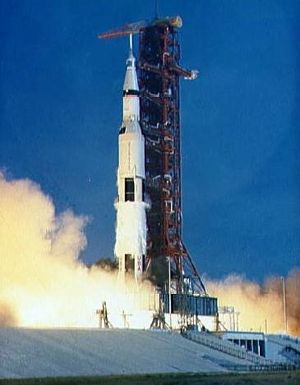

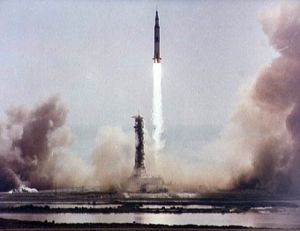

Michael Collins, and Edwin E. Aldrin, Jr., aboard - was launched from
Pad A, Launch Complex 39, KSC, at 9:32 a.m. EDT July 16. The activities
during earth-orbit checkout, translunar injection, CSM transposition
and docking, spacecraft ejection, and translunar coast were similar to
those of Apollo 10.
At 4:40 p.m. EDT July 18, the crew began a 96-minute color television
transmission of the CSM and LM interiors, CSM exterior, the earth, probe
and drogue removal, spacecraft tunnel hatch opening, food preparation,
and LM housekeeping. One scheduled and two unscheduled television
broadcasts had been made previously by the Apollo 11 crew.
The spacecraft entered lunar orbit at 1:28 p.m. EDT on July 19. During
the second lunar orbit a live color telecast of the lunar surface was
made. A second service-propulsion-system burn placed the spacecraft in a
circularized orbit, after which astronaut Aldrin entered the LM for two
hours of housekeeping including a voice and telemetry test and an
oxygen-purge-system check.

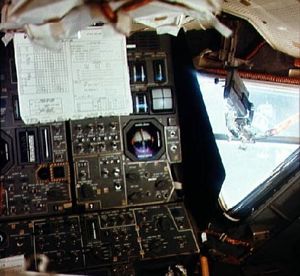

At 8:50 a.m. July 20, Armstrong and Aldrin reentered the LM and checked

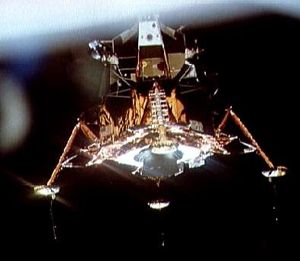

out all systems. They performed a maneuver at 1:11 p.m. to separate the
LM from the CSM and began the descent to the moon. The LM touched down
on the moon at 4:18 p.m. EDT July 20. Armstrong reported to mission
control at MSC, "Houston, Tranquillity Base here - the
Eagle has landed." (Eagle was the name
given to the Apollo 11 LM; the CSM was named
Columbia.) Man's first step on the moon was taken by
Armstrong at 10:56 p.m. EDT. As he stepped onto the surface of the
moon, Armstrong described the feat as "one small step for a man -
one giant leap for mankind."

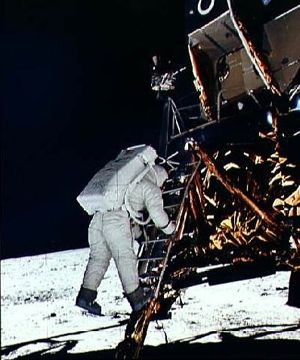

Aldrin joined Armstrong on the surface of the moon at 11:15 p.m. July
20. The astronauts unveiled a plaque mounted on a strut of the LM and
read to a worldwide TV audience, "Here men from the planet earth
first set foot on the moon July 1969, A.D. We came in peace for all

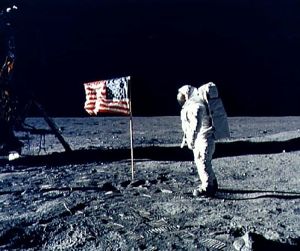

mankind." After raising the American flag and talking to President

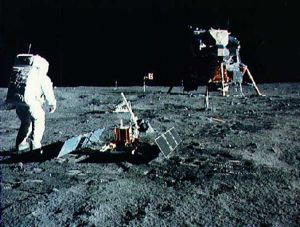

Nixon by radiotelephone, the two astronauts deployed the lunar surface
experiments assigned to the mission and gathered 22 kilograms of
samples of lunar soil and rocks. They then reentered the LM and closed
the hatch at 1:11 a.m. July 21. All lunar extravehicular activities
were televised in black-and-white. Meanwhile, Collins continued
orbiting moon alone in CSM Columbia.
The Eagle lifted off from the moon at 1:54 p.m. EDT July
21, having spent 21 hours 36 minutes on the lunar surface. It docked
with the CSM at 5:35 p.m. and the crew, with the lunar samples and
film, transferred to the CSM. The LM ascent stage was jettisoned into
lunar orbit. The crew then rested and prepared for the return trip to
the earth.
The CSM was injected into a trajectory toward the earth at 12:55 a.m.
EDT July 22. Following a midcourse correction at 4:01 p.m., an 18-minute
color television transmission was made, in which the astronauts
demonstrated the weightlessness of food and water and showed shots of
the earth and the moon.
At 12:15 p.m. EDT July 24 the Apollo 11's command module
Columbia splashed down in the mid-Pacific, about 24
kilometers from the recovery ship U.S.S. Hornet. Following
decontamination procedures at the point of splashdown, the astronauts
were carried by helicopter to the Hornet where they
entered a mobile quarantine facility to begin a period of observation
under strict quarantine conditions. The CM was recovered and removed to
the quarantine facility. Sample containers and film were flown to
Houston.
All primary mission objectives and all detailed test objectives of
Apollo 11 were met, and all crew members remained in good
health. Official NASA Account of the Mission from Where No Man Has Gone Before: A History of Apollo Lunar Exploration Missions, by W. David Compton, published as NASA SP-4214 in the NASA History Series, 1989.
At 9:32 a.m. Eastern daylight time on July 16, 1969, Apollo 11 left Launch Complex 39A at Kennedy Space Center, bound for the moon. Four days later, at 4:18 p.m. EDT on July 20, Neil Armstrong skilfully set the lunar module Eagle down in the Sea of Tranquility and reported, "Houston, Tranquility Base here. The Eagle has landed." For the next 10 minutes Armstrong and Aldrin were occupied with several post-landing procedures, reconfiguring switches and systems. Armstrong found time to report to Mission Control what he had been too busy to tell them during the landing: that he had manually flown the lunar module over the rockstrewn crater where the automatic landing system was taking it. Then he made his first quick-look science report:
"We'll get to the details of what's around here, but it looks like a collection of just about every variety of shape, angularity, granularity, about every variety of rock you could find. . . . There doesn't appear to be too much of a general color at all. However, it looks as though some of the rocks and boulders, of which there are quite a few in the near area, it looks as though they're going to have some interesting colors to them. . . . "
After giving Houston as many clues as he could to the location of their module, he added some more description:
"The area out the left-hand window is a relatively level plain cratered with a fairly large number of craters of the 5- to 50-foot variety, and some ridges - small, 20, 30 feet high, I would guess, and literally thousands of little 1- and 2-foot craters around the area. We see some angular blocks out several hundred feet in front of us that are probably 2 feet in size and have angular edges. There is a hill in view, just about on the ground track ahead of us. Difficult to estimate, but might be half a mile or a mile. "
Armstrong and Aldrin then started preparing their spacecraft for takeoff, setting up critical systems to be ready in case something happened and they had to leave the lunar surface quickly. A short break in this activity gave Armstrong a chance to pass along more information about the landing site:
". . . The local surface is very comparable to that we observed from orbit at this sun angle, about 10 degrees sun angle, or that nature. It's pretty much without color. It's . . . a very white, chalky gray, as you look into the zero-phase line [directly toward the sun]; and it's considerably darker gray, more like . . . ashen gray as you look out 90 degrees to the sun. Some of the surface rocks in close here that have been fractured or disturbed by the rocket engine plume are coated with this light gray on the outside; but where they've been broken, they display a dark, very dark gray interior; and it looks like it could be country basalt. "
Setting up the spacecraft systems took another hour and a half to complete; then they were ready to get out and explore. The flight plan called for them to eat and then rest for four hours, but Aldrin called Mission Control to recommend starting their surface exploration in about three hours' time. Houston concurred. Although they had been awake almost 11 hours and had gone through some stressful moments during the landing, it seemed too much to expect the first men on the moon to take a nap before they made history.
While Armstrong and Aldrin tended to their postlanding chores, Mike Collins, orbiting 60 nautical miles (112 kilometers) overhead in the command module Columbia, had little to do. Houston enlisted his aid in an attempt to locate Eagle, giving him the best map coordinates they could derive from the sketchy information available. With his navigational sextant Collins scanned several spots, without success; Columbia passed over the landing site too rapidly to allow him to search the area thoroughly and he never found the lunar module. Determination of its exact location had to wait for postmission analysis of Armstrong's descriptions of the area and examination of the spacecraft's landing trajectory.
Getting ready to leave the lunar module took longer than the crew had anticipated. It was after 9:30 p.m. in Houston, an hour and a half later than they had hoped, when they opened the hatch. Armstrong carefully worked his way out onto the "porch," then climbed down the ladder, pausing on the lowest rung to comment on the texture of the surface and the depth to which the footpads had penetrated. At 9:56 p.m. he stepped onto the moon's surface, proclaiming, "That's one small step for man, one giant leap for mankind" - inadvertently omitting an "a" before "man" and slightly changing the meaning he intended to convey.
Armstrong made a cursory inspection of the lunar module and reported his reactions to the new environment. Aldrin then lowered a camera on the lunar equipment carrier - a clothesline and pulley arrangement that seemed out of place in the high-technology environment of Apollo - which Armstrong immediately began using. Mission Control reminded him to scoop up the contingency sample, which he did. "I'll try to get a rock in here. Just a couple." He noted that the collecting tool met resistance after penetrating a short distance into the surface material. He then stowed the sample in a bag that he tucked into a pocket of his suit. To the scientists on earth he remarked, "Be advised that a lot of the rock samples out here, the hard rock samples, have what appear to be vesicles in the surface. Also, I am looking at one now that appears to have some sort of phenocryst."
Aldrin then joined Armstrong on the surface, and they spent the next several minutes inspecting the landing craft and reporting on its condition, adjusting to the low lunar gravity and trying various ways of getting around on the surface. After a brief commemorative ceremony (reading the plaque attached to the lunar module) and a short conversation with President Richard Nixon, they began unloading and emplacing the scientific instruments and collecting samples. They supplemented earth's limited television view of their activities with descriptions of what they were seeing and doing. On a couple of occasions they acted like field geologists. Aldrin reported that he saw a rock that sparkled "like some kind of biotite," but he "would leave that to further analysis." After closely examining some rounded boulders near the spacecraft, Armstrong said they looked "like basalt, and they have probably two percent white minerals in them. . . . And the thing that I reported as vesicular before, I don't believe that any more. . . . they look like little impact craters where BB shot has hit the surface."
The geologists in Houston watching this surface activity on television were quite pleased with the astronauts' performance. At one point Armstrong disappeared from the field of view of the TV camera, causing some momentary anxiety at his apparent departure from the plan. It turned out that some unusual rocks had attracted his attention and he had gone off a few meters to collect them. That was exactly the kind of thing the geologists had hoped people on the moon would do. By the time the crew had taken two core samples, again experiencing difficulty in driving a sampling tool into the surface, and filled their sample return containers, Houston notified them that it was time to wind up their activity. Just before midnight CapCom Bruce McCandless told Aldrin to "head on up the ladder," and at 12:11 a.m. Houston time both men and their samples were back in the lunar module and the hatch was sealed. Humanity's first excursion on the surface of another celestial body had lasted 2 hours, 31 minutes, and 40 seconds.
Back inside the lunar module, Armstrong and Aldrin removed their lunar surface suits and portable life-support systems and used up their remaining film. Houston passed up some more instructions in preparation for liftoff and tentatively signed off for the night, but before long CapCom Owen Garriott, who had relieved McCandless, came on the line with some questions from the scientists about the nature of the surface and the problems in driving sampling tools into the surface. Three hours after they returned to the lunar module, the lunar explorers finally were able to turn in for a few hours of fitful sleep.
Next morning Armstrong, Aldrin, and Collins spent most of their time setting up Eagle and Columbia for liftoff and rendezvous. Before the lunar module left the moon, however, Armstrong gave Mission Control a detailed description of the landing approach path and landing area, in the hope of helping scientists locate their exact landing spot, and summarized the characteristics of the soil and rocks around the area.
Liftoff and rendezvous went smoothly. When the two spacecraft were locked together Collins cracked Columbia's oxygen supply valve and Aldrin opened the lunar module's vent valve, to create a gas flow into the LM when the hatches were opened - part of the procedure to minimize back-contamination-while Aldrin and Armstrong vacuumed the lunar dust from their suits as best they could. Their vacuum cleaner, a brush attached to the exhaust hose of the LM suit system, was not very powerful and the tenacious dust came off only with difficulty. There was not nearly as much loose dust in the lunar module as they had expected when they returned from the surface; evidently it stuck tightly to whatever it touched. They passed the rock boxes and other items over to Collins and then clambered into the command module, where they removed their suits and stowed them in the bags provided. After jettisoning the lunar module and straightening up the command module, the three astronauts settled in for an uneventful trip back to earth.
In the early morning hours of July 24, 8 days, 3 hours, 18 minutes, and 18 seconds after leaving Kennedy Space Center, Columbia plopped down into the Pacific Ocean about 200 nautical miles (370 kilometers) south of Johnston Island. Recovery crews from the U.S.S. Hornet arrived quickly and tossed the biological isolation garments into the spacecraft. After the cocooned astronauts emerged from the spacecraft the swimmers swabbed the hatch down with Betadine (an organic iodine solution); then astronauts and recovery personnel decontaminated each other's protective garments with sodium hypochlorite solution. The biological isolation garments were not uncomfortable in the recovery raft, but aboard the helicopter they began accumulating heat. Both Collins and Armstrong felt that they were approaching the limit of their tolerance by the time they reached the ship. An hour after splashdown they were inside the mobile quarantine facility. As soon as they had changed into clean flight suits, the astronauts went to the large window at the rear end of the mobile quarantine facility to accept the nation's congratulations from President Nixon, who had flown out to the Hornet to meet them.
Meanwhile, recovery crews brought Columbia on board and connected it to the astronauts' temporary home by means of a plastic tunnel. Through this, the film magazines and sample return containers were taken into the quarantine trailer, then passed out through a decontamination lock. Sample return container no. 2, holding the documented sample, was packed in a shipping container along with film magazines and tape recorders and flown to Johnston Island, where it was immediately loaded aboard a C-141 aircraft and dispatched to Ellington Air Force Base near MSC. Six and a half hours later the other sample return container was flown to Hickam Air Force Base, Hawaii, and thence to Houston.
Apollo 11 Chronology - - 1965 May 16-June 15 - Preliminary Apollo Reliability Report Spacecraft: Apollo CSM.
North American released a preliminary report, "Apollo Reliability Modeling Documentation," in response to an action item assigned to MSC by the President's Scientific Advisory Committee (PSAC) Space Technology Panel at an Apollo program reliability briefing for the panel in January. The expected crew safety reliability was assessed at 0.973 with a confidence level ...more...
- 1967 Oct 20 - Grumman organizational changes to meet delivery date for Apollo LM-3 Spacecraft: Apollo LM.
In an effort to meet a mid-April 1968 delivery date for LM-3, Grumman made a number of organizational changes. Top level direction was strengthened by adding experienced managers in strategic positions and by reinforcing the Grumman LM organization with more management talent and additional test personnel. A spacecraft director for each vehicle was brought into the program for LM-2, -3, -4, and -5, with responsibility for overall Grumman support of individual vehicles from cradle to grave.
- 1967 Nov 2 - Apollo LM insulation susceptible to degradation from cabin leakage during pressurized conditions Spacecraft: Apollo LM.
Maxime A. Faget, MSC Director of Engineering and Development, told the ASPO Manager that he had reviewed the LM insulation status and concluded that "the present design is susceptible to degradation from cabin leakage during pressurized conditions. The present insulation design is unacceptable for the lunar landing mission." ...more...
- 1967 Dec 17 - Apollo LM-5 window shattered during initial pressurization test Spacecraft: Apollo LM.
A LM test failed in the Grumman ascent stage manufacturing plant December 17. A window in LM-5 shattered during its initial cabin pressurization test, designed to pressurize the cabin to 3.9 newtons per square centimeter (5.65 pounds per square inch). Both inner and outer windows and the plexiglass cover of the right-hand window shattered when the pressure reached 3.5 newtons per sq cm (5.1 psi). An MSC LM engineer and Corning Glass Co. engineers were investigating the damage and cause of failure.
- 1968 Mar 18 - Relaxed review procedures on Apollo LM-4 and LM-5 Spacecraft: Apollo LM.
Samuel C. Phillips, NASA Apollo Program Director, expressed concern to ASPO Manager George Low that relaxed review procedures on LM-4 and LM-5 might tend to delay identification and resolution of problems. Phillips had understood that the LM-4 Phase II Customer Acceptance Readiness Review ...more...
- 1968 Jun 7 - Apollo LM descent stage heatshield and thermal blanket problems Spacecraft: Apollo LM.
ASPO Manager George M. Low and others from MSC met with Grumman's LM engineering staff, headed by Thomas J. Kelly, to discuss the descent stage heatshield and thermal blanket problems associated with reduced thrust decay of the descent engine at lunar touchdown. Several significant decisions were reached: - The touchdown probe was lengthened ...more...
- 1968 Aug 28 - Detailed study of Apollo LM-4 for lunar orbit mission Spacecraft: Apollo LM.
NASA asked Grumman to make a detailed study of LM-4 to determine any constraints that might prevent accomplishment of a lunar orbit mission. All such constraints were to be defined in sufficient detail to facilitate a NASA ...more...
- 1968 Dec 14 - Functional check of Apollo ALSEP lunar handtools Spacecraft: Apollo LM.
The ASPO Manager asked Wilmot N. Hess, MSC Director of Science and Applications, to devise a crew fit and functional check of lunar handtools before the LM-5 crew training tests. Functional check of the handtools, as well as the Early Apollo Science Experiments ...more...
- 1969 Jan 24 - Apollo experiments on visual perception on the moon
In an exchange of letters, the feasibility and compatibility of experiments covering contrast perception, color perception, and distance estimation on the moon were discussed. Incorporation of the three experiments in the lunar landing mission's detailed test objective "Lunar Environment Visibility" for Apollo 11 was recommended.
- - 1969 April 25-26 - Aseptic sampler and a closeup stereo camera for the Apollo 11 flight Spacecraft: Apollo ALSEP.
In an exchange of correspondence, Samuel C. Phillips, NASA OMSF, and ASPO Manager George Low, MSC, discussed the possibility of carrying an aseptic sampler and a closeup stereo camera on the Apollo 11 flight. They decided the flight would carry the camera as an additional source of data; ...more...
- 1969 Apr 29 - Recommendation to carry an erectable antenna on the Apollo 11 mission
The NASA Associate Administrator for Manned Space Flight concurred in a recommendation to carry an erectable antenna on the Apollo 11 mission. However, it would be deployed only if required to obtain satisfactory television, voice, telemetry, and biomedical data simultaneously from the lunar surface.
- 1969 May 8 - Russian only hope is major Apollo failure Launch Vehicle: N1.
Mishin, Keldysh, Pashkov, Smirnov, and Serbin meet. Some of them are still expecting a big failure in the Apollo programme that will set the Americans back and still make it possible for Russia to be first on the moon. These are black days in the Soviet programme - it is clear to Kamanin that the Americans will successfully land on the moon in July, and the Russians are 2 to 3 years behind.
- 1969 May 16 - Myth 'we were never in the moon race' disseminated by the Soviet Union Spacecraft: Luna Ye-8-5.
Keldysh first revealed the new 'party line' at a press conference on the semi-successful Venera 5 landing on Venus. When asked about Soviet lunar plans, he revealed that Russia would only use robot probes, that it wouldn't risk men's lives in such an endeavour. At the same time Babakin was hard at work finishing the first Ye-8-5 robot lunar soil return spacecraft, to be launched before Apollo 11.
- 1969 May 19 - Postlanding ventilation filter eliminated for Apollo 12 Spacecraft: Apollo CSM.
In a telephone conference, MSC personnel and members of the Interagency Committee on Back Contamination agreed to eliminate the requirement for a postlanding ventilation filter for Apollo 12, approve a plan for sterilization of the CM in the Lunar Receiving Laboratory (LRL), release the spacecraft at the same time as the crew release, and approve the LRL Bioprotocol Summary. The ICBC planned to meet on June 5 to complete planning and documentation for Apollo 11.
- 1969 May 27 - Manual guidance for TLI on Apollo missions Spacecraft: Apollo LM.
Apollo Program Director Sam C. Phillips wrote to MSC regarding a Flight Readiness Review action item on translunar injection (TLI: insertion into a trajectory toward the moon) dispersions after manual guidance for TLI on Apollo missions. He enclosed a memorandum prepared by W. G. Heffron of Bellcomm, Inc., on the subject. ...more...
- 1969 Jun 3 - Proposed landing sites for Apollo 12 Spacecraft: Surveyor.
In a report to the ASPO Manager, the Chief of MSC's Systems Engineering Division described Apollo Site Selection Board (ASSB) action on proposed landing sites for the Apollo 12 mission. The MSC recommendation was to land at either the Surveyor III or Surveyor I site ...more...
- 1969 Jun 9 - Apollo 11 CSM Flight Readiness Review Spacecraft: Apollo LM.
The CSM 107 (Apollo 11) Flight Readiness Review Board met at MSC. The board heard reviews of government-furnished equipment problems, a special report ...more...
- 1969 Jun 9 - Apollo 11 on schedule
Preparation of Apollo 11 was on schedule for a July 16 launch date. Lunar landmark and landing site mosaics were delivered for flight crew training. A flight readiness test, begun on June 4, had been completed June 6 despite an MSC Mission Control Center power outage that delayed the test for several hours.
- - 1969 June 9-13 - Studies of impact of empty Apollo stages on the lunar surface Spacecraft: Apollo LM. Launch Vehicle: Saturn V.
Studies were being conducted to determine the feasibility of intentionally impacting an S-IVB stage and an empty LM stage on the lunar surface after jettison, to gather geological data and enhance the scientific return of the seismology experiment. Data would be obtained with the ALSEP seismographic equipment placed on the lunar surface during the Apollo 11 or Apollo 12 flight. MSFC and Bellcomm were examining the possibility of the S-IVB jettison; MSC, the LM ascent stage jettison. Intentional impacting of the ascent stage for Apollo 11 was later determined not to be desirable.
- 1969 Jun 13 - Modifications made to Apollo LLTV Spacecraft: Apollo LLRV.
The NASA Associate Administrator for Manned Space Flight, in a message to MSC, said he understood that, subsequent to the MSC Flight Readiness Review (FRR) and the NASA Headquarters Readiness Review of the LLTV, additional modifications had been made to that training vehicle. He requested a return wire indicating the date of the delta Flight Readiness Review ...more...
- 1969 Jun 20 - List of records for Apollo 11
Sigurd A. Sjoberg, MSC Deputy Director of Flight Operations, informed MSC management of a list of records that could be set in the Apollo 11 flight. Plans were made to file claims with the Fdration Aronautique Internationale for: ...more...
- 1969 Jun 23 - Preparations for the Apollo 11 on schedule Spacecraft: Apollo LM.
Preparations for the first manned lunar landing continued on schedule for a July 16 launch of Apollo 11. Dress rehearsal of the countdown was scheduled to begin on Friday, June 27, and ...more...
- 1969 Jul 1 - Preparations continued on schedule for a July 16 launch of Apollo 11
Preparations continued on schedule for a July 16 launch of Apollo 11. Edwin Aldrin, Neil Armstrong, and Michael Collins were in good physical condition ...more...
- 1969 Jul 2 - Quarantine applicable to Apollo crew, spacecraft, and returned lunar soil
The Interagency Committee on Back Contamination agreed to the designation of the MSC Director of Medical Research and Operations as the agent to impose a quarantine applicable to the crew, the spacecraft, and the returned lunar materials during any phase of the Apollo 11 mission. He was authorized to appoint persons at each location and phase of the mission who would have the responsibility of exercising the quarantine authority if necessary.
- 1969 Jul 3 - N1 5L launch Spacecraft: Soyuz 7K-L1A. Payload: Soyuz 7K-L1S s/n 5 / Dummy LK. Launch Site: Baikonur. Launch Vehicle: N1.
N-1 serial number 5L began to fail at 0.25 second after liftoff when the oxidizer pump of engine number 8 ingested a slag fragment and exploded. A fire ensued as the vehicle climbed past the top of the tower. Engines were shutdown until the acceleration dropped below 1 G; then the vehicle began to fall back to the pad at a 45 degree angle. The escape tower fired at the top of the brief trajectory, taking the L1S dummy descent module away from the pad. Upon impact of the base of the N1 with the pad, the vehicle exploded, destroying launch pad 110 east, which would take over 18 months to repair. This was the end of a slight Soviet hope of upstaging the US Apollo 11. N1 5L had barely lifted off when peripheral engine number 8 shut down at 0.25 seconds ...more...
- 1969 Jul 16 - Apollo 11 Crew: Aldrin, Armstrong, Collins. Spacecraft: Apollo CSM. Payload: Apollo CSM 107 / Apollo LM 5 / EASEP / S-IVB-506. Mass: 28,800 kg (63,400 lb). Launch Site: Cape Canaveral. Launch Vehicle: Saturn V. Duration: 8.14 days. Perigee: 183 km (113 mi). Apogee: 186 km (115 mi). Inclination: 32.50 deg. Period: 88.19 min.
First landing on moon. Apollo 11 (AS-506) - with astronauts Neil A. Armstrong,
Michael Collins, and Edwin E. Aldrin, Jr., aboard - was launched from
Pad A, Launch Complex 39, KSC, at 9:32 a.m. EDT July 16. The activities
during earth-orbit checkout, translunar injection, CSM transposition
and docking, spacecraft ejection, and translunar coast were similar to
those of Apollo 10.
At 4:40 p.m. EDT July 18, the crew began a 96-minute color television
transmission of the CSM and LM interiors, CSM exterior, the earth, probe
and drogue removal, spacecraft tunnel hatch opening, food preparation,
and LM housekeeping. One scheduled and two unscheduled television
broadcasts had been made previously by the Apollo 11 crew.
The spacecraft entered lunar orbit at 1:28 p.m. EDT on July 19. During
the second lunar orbit a live color telecast of the lunar surface was
made. A second service-propulsion-system burn placed the spacecraft in a
circularized orbit, after which astronaut Aldrin entered the LM for two
hours of housekeeping including a voice and telemetry test and an
oxygen-purge-system check.
At 8:50 a.m. July 20, Armstrong and Aldrin reentered the LM and checked
out all systems. They performed a maneuver at 1:11 p.m. to separate the
LM from the CSM and began the descent to the moon. The LM touched down
on the moon at 4:18 p.m. EDT July 20. Armstrong reported to mission
control at MSC, "Houston, Tranquillity Base here - the
Eagle has landed." (Eagle was the name
given to the Apollo 11 LM; the CSM was named
Columbia.) Man's first step on the moon was taken by
Armstrong at 10:56 p.m. EDT. As he stepped onto the surface of the
moon, Armstrong described the feat as "one small step for man -
one giant leap for mankind."
Aldrin joined Armstrong on the surface of the moon at 11:15 p.m. July
20. The astronauts unveiled a plaque mounted on a strut of the LM and
read to a worldwide TV audience, "Here men from the planet earth
first set foot on the moon July 1969, A.D. We came in peace for all
mankind." After raising the American flag and talking to President
Nixon by radiotelephone, the two astronauts deployed the lunar surface
experiments assigned to the mission and gathered 22 kilograms of
samples of lunar soil and rocks. They then reentered the LM and closed
the hatch at 1:11 a.m. July 21. All lunar extravehicular activities
were televised in black-and-white. Meanwhile, Collins continued
orbiting moon alone in CSM Columbia.
The Eagle lifted off from the moon at 1:54 p.m. EDT July
21, having spent 21 hours 36 minutes on the lunar surface. It docked
with the CSM at 5:35 p.m. and the crew, with the lunar samples and
film, transferred to the CSM. The LM ascent stage was jettisoned into
lunar orbit. The crew then rested and prepared for the return trip to
the earth.
The CSM was injected into a trajectory toward the earth at 12:55 a.m.
EDT July 22. Following a midcourse correction at 4:01 p.m., an 18-minute
color television transmission was made, in which the astronauts
demonstrated the weightlessness of food and water and showed shots of
the earth and the moon.
- 1969 Jul 16 - Apollo 11 LM Spacecraft: Apollo LM. Payload: Apollo LM 5. Mass: 15,095 kg (33,278 lb). Launch Site: Cape Canaveral. Launch Vehicle: Saturn V. Duration: 8.14 days. Perigee: 183 km (113 mi). Apogee: 186 km (115 mi). Inclination: 32.50 deg. Period: 88.19 min.
- 1969 Jul 19 - Apollo 11 crew observes illumination event in crater Aristarchus.
During the Apollo 11 mission, members of the Lunar International Observer Network (LION) made continuous observations of a lunar area where illuminations had been noted. At 18:45 GMT (2:45 p.m. EDT), the astronauts sighted an illumination in the Aristarchus region, the first time that a lunar transient event was sighted by an observer in space. The sighting was confirmed by a LION observer in West Germany.

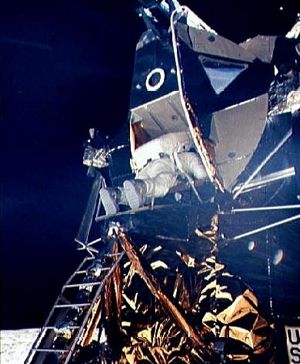

- 1969 Jul 20 - Apollo 11 achieves first landing of humans on the moon
At 8:50 a.m. July 20, Armstrong and Aldrin reentered the LM and checked
out all systems. They performed a maneuver at 1:11 p.m. to separate the
LM from the CSM and began the descent to the moon. The LM touched down
on the moon at 4:18 p.m. EDT July 20. Armstrong reported to mission
control at MSC, "Houston, Tranquillity Base here - the
Eagle has landed." For the next 10 minutes Armstrong and Aldrin were occupied with several post-landing ...more...
- 1969 Jul 21 - Soviet engineers view moonwalk Launch Vehicle: N1.
At the same time the reconstruction schedule for the destroyed N1 launch complex was being laid out, Apollo 11 landed on the moon and the Americans won the moon race. Mishin's engineers watched the live television at TsNIIMASH. Afterwards Tyulin declared, "this is all Chertok's fault. In 1945 he should have thought of stealing Von Braun from the Americans - but he never considered that solution". "True", Chertok replied, "my adventure with Vasiliy Kharchev didn't turn out too well".
- 1969 Jul 22 - Apollo 11 heads back to earth.
The CSM was injected into a trajectory toward the earth at 12:55 a.m.
EDT July 22. Following a midcourse correction at 4:01 p.m., an 18-minute
color television transmission was made, in which the astronauts
demonstrated the weightlessness of food and water and showed shots of
the earth and the moon.
- 1969 Jul 24 - Landing of Apollo 11
At 16:50 GMT Apollo 11's command module Columbia splashed down in the mid-Pacific, about 24 kilometers from the recovery ship U.S.S. Hornet. Following
decontamination procedures at the point of splashdown, the astronauts were carried by helicopter to the Hornet where they entered a mobile quarantine facility to begin a period of observation
under strict quarantine conditions. The CM was recovered and removed to the quarantine facility. Sample containers and film were flown to Houston.
All primary mission objectives and all detailed test objectives of Apollo 11 were met, and all crew members remained in good health.
- 1969 Jul 24 - Return to earth of Apollo 11 - Kennedy's objective is met.
Apollo 11 splashed down at 12:50 GMT in the mid-Pacific, about 24
kilometers from the recovery ship U.S.S. Hornet. Following
decontamination procedures at the point of splashdown, the astronauts
were carried by helicopter to the Hornet where they
entered a mobile quarantine facility to begin a period of observation
under strict quarantine conditions. The CM was recovered and removed to
the quarantine facility. Sample containers and film were flown to
Houston. In the early morning hours of July 24, 8 days, 3 hours, 18 minutes, and 18 seconds ...more...
- - 1969 July 27-August 1 - Scientific experiments planned for the Apollo 11 mission accomplished
The scientific experiments planned for the Apollo 11 mission were reported successfully accomplished. The passive seismometry had recorded a series of minor events and withstood temperatures ...more...
- 1969 Jul 28 - Apollo 11 mission anti-souvenier measures
To guard against cannibalization, misuse, or destruction of any part of the lunar mission support equipment, spacecraft, and recovered equipment (however insignificant it might seem) from the Apollo 11 mission, NASA Hq. specified that certain steps be taken. These were as follows: All recovered items would be identified, recorded, and inventoried ...more...
- 1969 Aug 1 - Apollo 11 debriefing indicates a number of items requiring investigation Spacecraft: Apollo LM. Launch Vehicle: Saturn V.
During the Apollo 11 management debriefing, the ASPO Manager noted a number of items requiring investigation. During separation from the S-IVB stage, the CSM autopilot apparently had difficulty ...more...
- 1969 Aug 10 - Apollo Interagency Committee on Back Contamination met in Atlanta. Spacecraft: Apollo CSM.
The Interagency Committee on Back Contamination met in Atlanta, Ga. Basing its decision on medical and biological data obtained during a 21-day observation ...more...
- 1969 Aug 19 - The Apollo 11 seismic experiment package on the moon was reactivated
The Apollo 11 seismic experiment package on the moon was reactivated. Indications were that the unit was fully functional. The laser reflector was also operating well. Scientists at the McDonald Observatory, Fort Davis, Tex., conducted ranging operations that established the distance between the earth and the moon, to within an accuracy of 4 meters as 373,794.3333 kilometers.
- 1969 Sep 16 - First reported weights of Apollo 11 lunar samples said to be inaccurate
The first reported weights of Apollo 11 lunar samples were inaccurate because of a number of variables that could not be eliminated until after quarantine was lifted, MSC told NASA Hq. Because of the concern this inaccuracy had generated, procedures were being developed for future missions to permit more accurate determination of sample weights early in the Lunar Receiving Laboratory processing cycle.
- 1969 Sep 19 - MSC reports that 136 flags of other nations were flown on Apollo 11 Spacecraft: Apollo CSM.
MSC replied to a query that 136 flags of other nations, the U.N. flag, and flags from each state and territory of the United States had been flown on Apollo 11. The flags, measuring 10.16 cm x 15.24 cm and made of silkscreened rayon, were procured ...more...
- 1969 Sep 23 - Guinness records for Apollo 8 and Apollo 11
In response to a query from Guinness Superlatives, London, as to the maximum distance from the earth reached by Apollo 8 and Apollo 11, MSC said the maximum distance for Apollo 8 was 377,348.704 kilometers, during the 10th lunar revolution. The maximum distance from the earth for Apollo 11 was 389,921.3764 kilometers, during ...more...
- - 1969 September 25-26 - Apollo Manned Space Flight Awareness seminar
A Manned Space Flight Awareness seminar was held at MSC. The seminar, attended by some 500 industry and government representatives, emphasized the need for maintaining the dedication and motivation that led to the success of Apollo 11.
- 1969 Oct 22 - Opposition to a major effort to develop a lunar flyer until after the Apollo 16 mission Spacecraft: LFV North American.
The Flight Crew Operations Directorate expressed opposition to a major effort to develop a lunar flyer until after the Apollo 16 mission. Plans for Apollo flights 12 through 16 required that the LM be maneuvered to landings at various points of scientific interest on the lunar surface, and experience from Apollo 11 and partial gravity simulators indicated the crews would be able to accomplish their surface EVA tasks for these missions without the aid of a mobility device.
- 1969 Nov 17 - Changed nomenclature for the lunar exploration phase of the Apollo program
NASA discontinued the use of names such "LEO," "ALEM," and "Apollo Lunar Exploration Program" that had been used since Apollo 11 to identify the lunar exploration phase of the Apollo program. Henceforth, the single word title "Apollo" would be used when referring to the program. However, additional descriptive language, such as "lunar exploration phase ...more...
- 1969 Dec 22 - Apollo 12 indicated that lunar dust completely obscured landing point
Correlation of the Apollo 12 descent film with the crew's comments during landing indicated that lunar dust first became apparent at about 30 meters from the surface and that from about 12 meters above to the actual touchdown the ground was almost completely obscured by the dust. Because of both Apollo 11 and Apollo 12 landing experiences, studies were begun ...more...
- - 1970 January 5-8 - Detailed reports on the Apollo 11 sample analyses were presented at the Lunar Science Conference
Detailed reports on the Apollo 11 sample analyses were presented at the Lunar Science Conference at MSC. Principal investigators covered the fields of geology, mineralogy, petrology, radiogenic ...more...
- 1970 Jul 17 - Anniversary of Apollo 11
During the anniversary of Apollo 11, NASA Administrator Thomas O. Paine said: "The success of Apollo 11 marked the beginning of a new and important phase of mankind - not just the triumphant end of a mission. The mission was a voyage of discovery, and an important part of the discovery was ...more...
- 1973 Nov 2 - Space Window with a two-centimeter Apollo 11 lunar sample commissioned for the National Cathedral
With the support of the trustees of the Washington Cathedral, Francis B. Sayre and Thomas O. Paine commissioned a large stained glass Space Window to be installed in the south wall of the nave, the main auditorium of the Cathedral. The window would be 5.4 meters high by 2.7 meters wide. The center of the window would contain an Apollo 11 lunar sample 2 centimeters in diameter.
- 1974 Jul 13 - Nixon proclaimed July 16-24 United States Space Week on the fifth anniversary of Apollo 11
In recognition of the fifth anniversary of the Apollo 11 flight, which landed the first men on the moon, President Nixon proclaimed the period July 16 through July 24 as United States Space Week, stating: "The knowledge to be gained from space will lead to scientific, technological, medical and industrial advances which cannot be fully perceived today. In time man may take for granted in the heavens such wonders as we cannot imagine ...more...
- 1998 Apr 5 - From the Earth to the Moon is released.
Based on the success of the film Apollo 13, Tom Hanks was able to raise $ 68 million to film a television mini-series covering the entire Apollo program. The Apollo 13 episode marked the third fictionalised telling of the tale, this time concentrating on the media handling of the flight and the changing nature of television news. The twelve episodes covered different aspects of the Apollo program:
...more...
Bibliography and Further Reading
- Kamanin, N P, Skritiy kosmos, Infortext, Moscow, 1995. The diary of the Commander of the Soviet Cosmonaut Team in the 1960's - a source of great insights into the space program. Four volumes issued to date.
- Wilson, Keith T., Spaceflight, "EVA Log 1965-1997", 1998, Volume 40, page 85.
- Baker, David, The History of Manned Spaceflight, Crown, New York, 1981. The best overview of America's manned space programs up to Skylab. Information and details not available anywhere else. Unfortunately out of print and difficult to locate.
- Turnill, Reginald,, The Observer's Spaceflight Directory, Frederick Warne, London, 1978. ISBN: 0723220514. Good miniature encyclopaedia of space programs just before the shuttle started flying. More at amazon.com...
- Furniss, Tim, Manned Spaceflight Log, Jane's, London, 1986. ISBN: 0710604025. Summary of all manned spaceflights up to 1986. Pre-Glasnost, so many 'war stories' of Soviet manned spaceflight are not included. More at amazon.com...
- McDowell, Jonathan, Jonathan's Space Home Page, Harvard University, 1997-present. Jonathan McDowell's complete on-line listing of all objects orbited and over 20,000 rocket launches Accessed at: http://www.planet4589.org/jsr.html.
|
