Apollo 10



LM Ascent Stage
Credit: NASA
Apollo 10
Credit: www.spacefacts.de - www.spacefacts.de
Apollo 10
Members of Apollo 10 crew participate in simulation activity at KSC
Credit: NASA
Apollo 10

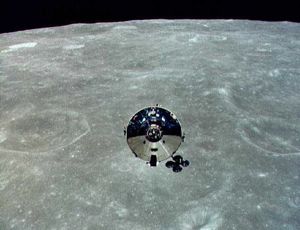

Apollo 10 Command/Service Modules seen from Lunar Module after separation
Credit: NASA
Apollo 10

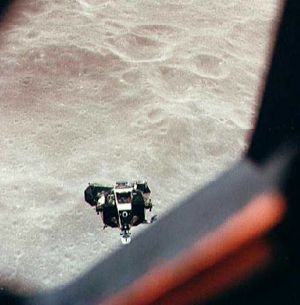

Ascent stage of Apollo 10 Lunar Module seen from Command module
Credit: NASA
Crew: Cernan, Stafford, Young. Speed record (11,107 m/s). Final dress rehearsal in lunar orbit for landing on moon. LM separated and descended to 10 km from surface of moon but did not land. Backup crew: Cooper, Eisele, Mitchell.

Final dress rehearsal in lunar orbit for landing on moon. LM separated and descended to 10 km from surface of moon but did not land. Apollo 10 (AS-505) - with crew members Thomas P. Stafford, Eugene A. Cernan, and John W. Young aboard - lifted off from Pad B, Launch Complex 39, KSC, at 12:49 p.m. EDT on the first lunar orbital mission with complete spacecraft. The Saturn V's S-IVB stage and the spacecraft were inserted into an earth parking orbit of 189.9 by 184.4 kilometers while the onboard systems were checked. The S-IVB engine was then ignited at 3:19 p.m. EDT to place the spacecraft in a trajectory toward the moon. One-half hour later the CSM separated from the S-IVB, transposed, and docked with the lunar module. At 4:29 p.m. the docked spacecraft were ejected, a separation maneuver was performed, and the S-IVB was placed in a solar orbit by venting residual propellants. TV coverage of docking procedures was transmitted to the Goldstone, Calif., tracking station for worldwide, commercial viewing.

On May 19 the crew elected not to make the first of a series of midcourse maneuvers. A second preplanned midcourse correction that adjusted the trajectory to coincide with a July lunar landing trajectory was executed at 3:19 p.m. The maneuver was so accurate that preplanned third and fourth midcourse corrections were canceled. During the translunar coast, five color TV transmissions totaling 72 minutes were made of the spacecraft and the earth.

At 4:49 p.m. EDT on May 21 the spacecraft was inserted into a lunar orbit of 110.4 by 315.5 kilometers. After two revolutions of tracking and ground updates, a maneuver circularized the orbit at 109.1 by 113.9 kilometers. Astronaut Cernan then entered the LM, checked all systems, and returned to the CM for the scheduled sleep period.

On May 22 activation of the lunar module systems began at 11:49 a.m. EDT. At 2:04 p.m. the spacecraft were undocked and at 4:34 p.m. the LM was inserted into a descent orbit. One hour later the LM made a low-level pass at an altitude of 15.4 kilometers over the planned site for the first lunar landing. The test included a test of the landing radar, visual observation of lunar lighting, stereo photography of the moon, and execution of a phasing maneuver using the descent engine. The lunar module returned to dock successfully with the CSM following the eight-hour separation, and the LM crew returned to the CSM.

The LM ascent stage was jettisoned, its batteries were burned to depletion, and it was placed in a solar orbit on May 23. The crew then prepared for the return trip to earth and after 61.5 hours in lunar orbit a service propulsion system TEI burn injected the CSM into a trajectory toward the earth. During the return trip the astronauts made star-lunar landmark sightings, star-earth horizon navigation sightings, and live television transmissions.

Apollo 10 splashed down in the Pacific at 12:52 p.m. EDT on May 26, 5.4 kilometers from the recovery ship. The crew was picked up and reached the recovery ship U.S.S. Princeton at 1:31 p.m. All primary mission objectives of evaluating performance and support and the detailed test objectives were achieved.

Official NASA Account of the Mission from Chariots for Apollo: A History of Manned Lunar Spacecraft, by Courtney G Brooks, James M. Grimwood, Loyd S. Swenson, published as NASA SP-4205 in the NASA History Series, 1979.

On 18 May 1969, a king, some congressmen, other distinguished guests, and a hundred thousand other watchers waited at scattered vantage points around the Cape area. At 49 minutes past noon, Rocco Petrone's launch team sent Apollo 10 on its way to America's second manned rendezvous with the moon. Humming along at first like a Titan II, or so its Gemini-experienced crewmen felt, the gigantic Saturn V first stage suddenly slammed Stafford, Cernan, and Young forward and backward, until the cabin dials blurred before their eyes. Stafford tried to tell chief Flight Director Glynn Lunney's mission control team when the first stage of the vehicle dropped off but he could not squeeze the words out. When the remainder of the stack steadied, the S-II second stage (already firing) had the same pogo tendencies. The three astronauts had begun to wonder if the vehicles would hold together, especially the lunar module below them, when the S-IVB third stage fired, growling, rumbling, and vibrating as it shot into earth orbit.

During the systems review period, the ride smoothed. Lunney checked the men at the monitors in the control room and they all voted to fire for translunar injection. Stafford's crewmen considered not wearing their helmets and gloves but "chickened out," as Young phrased it, and put them on. They probably found the extra garb comforting when the S-IVB fired, because the third stage again groaned and shook. None of the three were confident of being able to continue the trip much longer, and Cernan wondered how the mission could be safely aborted at this point in space. The guidance system kept Apollo 10 on a steady course, however, and they were on their way.

When Young pulled the command module away from the S-IVB, the crew saw the panels that had housed the lunar module drift away. After the command module was flipped around, it was 45 meters away from the third stage, about three times farther than intended, but it would take only a little extra gas to get back for docking. As the CM moved around, the mission controllers on the ground watched the maneuvers, in "living color."

Television had worked so well on other Apollo flights that NASA had decided to put a color system on Stafford's command module. Weighing only 5.5 kilograms, the Westinghouse camera included a 7.5-centimeter monitor to show the astronauts what they were transmitting. Now flight controllers watched along with the crew as Charlie Brown, perfectly aligned with his target, pulled up to Snoopy, latched onto him, and drew him out of his doghouse. Shortly thereafter, with signals to Houston through the big antenna dish at Goldstone, California, a vast populace saw a color view of a large portion of their western hemisphere from thousands of kilometers in space.

After checking tunnel, latches, and docking probe, the crewmen had a light workload as they coasted toward the moon. They were grateful for even such small jobs as firing the thrusters to make slight corrections in spacecraft attitude, but this was so seldom necessary they began to wonder if the jets were working. On occasion, however, when nothing was firing, the whole stack shimmied. They later speculated that this may have been caused by fuel sloshing. When making optical navigational sightings, the crew had trouble acquiring enough stars for an accurate reading. Without the optics, the men could see no stars at all for a long time. Finally, Stafford spotted a few dim orbs after he had traveled 190,000 kilometers into space. But not much navigating was needed; the course was so true that the service module propulsion system was used only once, to add 15 meters per second to their speed, at 26 hours into the voyage. This firing put the spacecraft on a lunar path that would lead the crew over the exact spot where the first landing might be made. The rest of the time the astronauts studied the flight plan, slept, ate, and beamed five excellent television transmissions back to the earth.

Stafford, Cernan, and Young were the first Apollo pilots to be free from illness during the mission, although Cernan experienced a slight vestibular disturbance. Like all their colleagues who had flown before, once they unbuckled from the couches they had a stuffy feeling in their heads. This lasted for 8 to 10 hours for Stafford and Young; Cernan gradually lost the sensation over the next two days. He practiced "cardinal head movements" that the medics thought might help overcome his slight feeling of nausea. Although he was able to do the exercise for more than four minutes at a session by the seventh day of flight, when he returned to earth he lambasted the procedure, saying it must have been designed to bring on illness rather than to alleviate it.

The crew slept well, although thruster firing bothered Cernan the first night. Later, when they were circling the moon, the men were glad that McDivitt's crew had suggested they carry a sleeping bag apiece. The spacecraft grew cold once the windows had been covered to darken the cabin for sleeping.

One major complaint the astronauts registered was about their water supply. They were supposed to chlorinate it at night; because of an error in procedures passed to them by flight control, Stafford had a double dose of chlorine when he took a drink during the first breakfast of the trip. This was unpleasant, but it posed no major problem. Something else in the water supply did. When earlier crews had complained about gas in the water system, a new water bag was designed, with a handle the crew could use to whirl the bag around to separate the gas from the water. It did not work. The gas settled to the bottom of the bag and then remixed with the water when the crew members tried to drink. The gas worried them; they could envision getting diarrhea, which would have been difficult to cope with during flight. They did have gas pains and cramps but, fortunately, nothing more.

Poor water quality may have affected their appetites, for the astronauts on this flight were not big eaters. On occasion, they skipped meals. Stafford estimated they had enough food to last for 30 days. Not all the blame could be laid on the water, however; the food was still no epicurean delight. Back on earth in early May, Donald D. Arabian, chief of the Apollo Test Division, had tried a four-day supply of their rations. Arabian claimed to be "somewhat of a human garbage can," but even he lost his desire for food on this diet. The sausage patties, for example, tasted like granulated rubber and left an unpleasant taste. With all the difficulties of preparation, Arabian added, by the third day continuing the test was a chore. He did like the items that were closest to normal table foods. Stafford's crew also found some of the newer dishes that could be eaten with a spoon quite palatable. But the men dreaded reconstituting the dehydrated meals, knowing that the water contained so much gas.

Unlike Borman's crew, which could not see the moon with the unaided eye until the spacecraft was almost upon it, Stafford's group spotted it on the second day of flight. On the earth, it looked like a waxing crescent, but Stafford and Young, with the help of earthshine, could see almost a full moon. Although the moon was much bigger at 200,000 kilometers above the earth, landmarks on the lunar surface still could not be picked out. Cernan also asked flight controllers if they thought he could really recognize the S-IVB stage 5,600 kilometers away, because that was what he thought he was seeing. The CapCom told him that the men in the control room were nodding their heads yes and that the distance between the two vehicles actually measured 7,400 kilometers.

When Apollo 10 reached the lunar vicinity on 21 May, the controllers informed the crewmen that at one time or another more than a billion persons had watched their televised activities. But interest now focused on the exact moment when their craft would shoot around the moon and lose communications with the earth. At 74 hours 45 minutes into the mission, flight control predicted that loss of signal would come at 75 hours, 48 minutes, 24 seconds. The controllers had already determined that the ship would reach the moon 11 minutes later than scheduled, since there had been only one midcourse correction, rather than two. Its trajectory would be 110 kilometers above the lunar surface.

The crew was impressed by the lunar landscape, although Stafford insisted it looked like a big plaster of Paris cast. The three found it almost incredible that someone back on earth had been smart enough to place them within 110 kilometers of the moon - but there they were. They caught just a glimpse of the surface a minute before they fired the service module engine to go into lunar orbit, an activity that required all their attention. The six-minute retrograde maneuver seemed interminable, just as it had to Borman's group, but the engine kept firing and their confidence in it kept growing. When the engine finally shut down and they were sure that it had done its job, Stafford and Cernan had time to look at the lunar surface. They likened one area to a volcanic site in Arizona. Finally Stafford forced his attention back inside the cabin and told his crewmates that he thought the best thing to say when they got back in radio contact was, "Houston, tell the earth we have arrived."

Stafford, Young, and Cernan were fascinated by how much more slowly they seemed to travel around the moon than they had around the earth. They liked the slower pace, because on the first circuit they would pass directly over the area where Apollo 11 was due to land two months later. They had barely rounded the corner before Stafford and Cernan began describing the physical features down the highway they called "U.S. 1," leading to the landing site. By the third circuit, the world was sharing the view on color television. Watchers could see the gray, white, black, and brownish tints of the landing site, which seemed to be free from boulders, providing a smooth landing field.

Six hours after reaching the moon, Cernan and Stafford began getting the lander ready. The hatches, probe, and drogue were easily removed. As he entered the lunar module, Cernan was greeted by a snowstorm of mylar insulation, apparently sucked into the vehicle through a vent from the tunnel. The insulating material had come loose in the tunnel, and the crewmen had spent some time capturing and cleaning it up in the command module. Now they had the same job to do in the lunar module.

Cernan had floated head down through the tunnel into the lunar module. Because the two spacecraft were locked together from top to top, his own private world had a new orientation. He later commented that the best way to handle this psychologically was to slide through the hatch, look around, and then mentally assign an arbitrary up and down. Once he had accepted the new environment, he had no problems in checking, hauling in equipment, and getting things in order. The crew had intended to leave the passageway to the lander open after returning to the command ship, but the hardware was too bulky. It was simpler, and quite easy, to put the probe and drogue back into place.

Flight control had planned to let the crew sleep until the last moment on 22 May, when Stafford and Cernan would leave Young and fly the lander down near the lunar surface. But, after playing "The Best Is Yet to Come" and sounding reveille, ground control found that the astronauts had stealthily risen, eaten breakfast, and quietly begun work on the flight plan checklist. Cernan removed the encumbrances from the tunnel and zipped over into the lunar module to get everything ready, while Young helped Stafford with his suit (a five-minute job even with assistance). Cernan then came floating back into the command module and jumped into his suit. When flight control heard from them at the start of the tenth circuit, the two pilots were in the lander and closing off the tunnel.

When Stafford and Cernan were ready for undocking, however, they found that the lunar module had slipped three and a half degrees out of line with the command module at the latching point, possibly because of loose mylar collecting on the docking ring. It might also have happened when Young, during docking, had forgotten to turn off the service module roll thrusters and flight control had been tardy in reminding him of the task. Whatever caused the problem, the crew feared separating the two craft might shear off some of the latching pins, possibly preventing redocking. Stafford and Cernan would be stranded in lunar orbit with no way back except by going out the lander hatch and making their way to the command module hatch - a dangerous undertaking. But Low, who was in the control room at the time, told Flight Director Lunney that as long as the misalignment was less than six degrees they could go ahead and undock.

Just before Apollo 10 rounded the corner to the back of the moon, flight control passed the good news to Stafford. The two crewmen in LM Snoopy heard a "pow" as they broke free. Young, all alone in what now seemed to be an unusually large command module, turned on the television camera so the flight controllers back on the earth could help him inspect the lander. Meanwhile the lunar module landing gear had deployed and was in place. The lander's systems checked out well, especially the radar, the abort guidance system, the antennas, and the pressurization of the descent propulsion system. Everything looked good, and everybody was ready to go. Telling Young not to get too lonesome and not to go off and leave them, Stafford and Cernan announced that they were ready to go down and snoop around the moon.

Young had used his service module thrusters to pull Charlie Brown nine meters away from the lunar module for the inspection. He then gave the same jets a spurt to thrust downward toward the moon until the two vehicles were three and a half kilometers apart. Stafford and Cernan were ready to try, for the first time, another of the operations with a significant Apollo abbreviation so cherished by the engineers - descent orbit insertion, or DOI. At nearly 100 hours into the mission, Stafford started the descent engine at minimum thrust - which slowly built up past 10 percent - and then 15 seconds later he increased it to 40 percent for 12 more seconds. The engine ran smoothly, with none of the chugging experienced on McDivitt's ride. Young tracked the burn optically and told the lunar module crewmen that they were moving away from him at more than 20 meters a second. Cernan did not think they were going that fast. "It's a very nice pleasant pace," he said. Now they could get a close look at a proposed landing site in the Sea of Tranquility, where Apollo 11 might set down in July. Stafford and Cernan had studied hard for what they were going to do. In a T-38 aircraft, they had simulated this trajectory above the earth. They had pored over charts and maps of the site, and they had scrutinized the area during their hours in lunar orbit. So the astronauts traveled easily down the approach path, calling out the names of craters, rilles, and ridges as they went along. They appeared to be traveling exactly over the track they wanted, reaching a low point of 14,447 meters above the surface. They took many pictures; then Stafford's camera failed as the film started to bind. He described the landing site as much like "the desert in California around Blythe." If a lander touched down on the near end, it would have a smooth landing, he said; but, if it wound up at the far end of the zone, extra fuel would be needed for maneuvering to a clear spot. Their landing radar worked perfectly when they tested it, and the pilots remarked that they had no visibility problems with lighting and sun angles.

Young caught sight of the lunar module at a distance of 120 kilometers; Snoopy appeared to be running across the lunar surface like a spider. At other times, using a sextant, he spotted the craft as far away as 550 kilometers. An hour after the first descent burn, Stafford and Cernan fired the engine again, to shape the trajectory for their return to the command module. Shoving the throttle forward for 40 seconds and 100 percent thrust, Stafford was happy to note that there was still no chugging. Young tried to see the flames from the engine but could not. Although the lander's speed had increased by 54 meters per second, the crew again had the impression that acceleration was slow. During these activities, the lunar module had a "hot [open] mike," which was fine with Young, since it kept him informed of what was happening in the lander. But whenever he talked, he had a feedback of his own voice. Somebody would have to fix that before the next mission, he said.

After Stafford's camera failed, he and Cernan had little to do except look at the scenery until time to dump the descent stage. Stafford had the vehicle in the right attitude 10 minutes early. Cernan asked, "You ready?" Then he suddenly exclaimed, "Son of a bitch!" Snoopy seemed to be throwing a fit, lurching wildly about. He later said it was like flying an Immelmann turn in an aircraft, a combination of pitch and yaw. Stafford yelled that they were in gimbal lock - that the engine had swiveled over to a stop and stuck - and they almost were. He called out for Cernan to thrust forward. Stafford then hit the switch to get rid of the descent stage and realized they were 30 degrees off from their previous attitude. The lunar module continued its crazy gyrations across the lunar sky, and a warning light indicated that the inertial measuring unit really was about to reach its limits and go into gimbal lock. Stafford then took over in manual control, made a big pitch maneuver, and started working the attitude control switches. Snoopy finally calmed down.

For this first lunar module flight to the vicinity of the moon, the pilots were supposed to use the abort guidance system instead of the primary guidance system, to test performance in the lunar environment. The abort system had two basic control modes, "attitude hold" and "automatic." In automatic, the computer would take over the guidance and start looking for the command module, which was certainly not what the crew wanted to do just then. In correcting for a minor yaw-rate-gyro disturbance, the pilots had accidentally switched the spacecraft to the automatic mode, and the frantic gyrations resulted. From Cernan's startled ejaculation to Stafford's report that everything was under control took only three minutes. Flight control told the crewmen they had made an error in switching, but the system was fine. They could fire the ascent engine. After the firing, the lander flew what Stafford called a "Dutch roll," yawing and pitching and snaking along. When the engine shut down, however, to the crew's surprise the attitude and flight path to the command module were correct. From a maximum distance of 630 kilometers, the thrust from the ascent engine moved the lunar module to within 78 kilometers of the mother ship.

As the lunar module approached, Young saw it through his sextant at a distance of 259 kilometers. Stafford and Cernan got a radar lock on the command module shortly after the insertion burn and watched with interest as the instrument measured the dwindling gap between the vehicles and demonstrated the theories of orbital mechanics in actual practice. Cernan especially liked the steady communications that kept both crews aware of what was happening. After watching the command module from as far away as 167 kilometers and then losing sight of it at sunset, the lunar module pilots saw Charlie Brown's flashing light with their unaided eyes at 78 kilometers. At last, the two craft were only eight meters apart, and the relative speed between them was zero. Stafford did find the ascent stage a little difficult to hold steady, just as Conrad had suspected, but Young slid the probe smoothly into the dead center of the drogue. Stafford rammed the lunar module forward, and the capture latches closed with a loud bang.

Stafford and Cernan had been gone for more than eight hours, and they were ready to get back into the command module and rest. Transfer ring equipment and closing the tunnel were easy. When all three were settled in, they cut the lander loose. Flight control then fired the ascent engine to fuel depletion (249 seconds) and sent the lunar module into solar orbit. The crew watched it move away; Snoopy was soon out of sight. Stafford and his crew went back to tracking landmarks on the surface below for the upcoming lunar landing mission.

After 31 circuits, the crew fired the service module engine to begin the return to the earth. On 26 May 1969, Apollo 10 streaked through the early morning darkness like a shooting star, to splash down in the Pacific 690 kilometers from Samoa and only 6 kilometers from the prime recovery ship. The journey had taken 192 hours, 3 minutes, 23 seconds. A helicopter picked the crew up and carried them to the U.S.S. Princeton within the hour. This fantastic voyage was over and had revealed absolutely no reason why Apollo 11 could not negotiate the final few kilometers to the lunar surface. The trail had been blazed.

AKA: Charlie Brown/Snoopy.
Location: Science Museum, London, U.K..
First Launch: 1969.05.18.
Last Launch: 1969.05.26.
Duration: 8.00 days.

More... - Chronology...


Associated People
  • Cooper Cooper, Leroy Gordon Jr 'Gordo' (1927-2004) American test pilot astronaut. Flew on Mercury MA-9, Gemini 5. First American to spend over a day in space. High spirited, and reportedly denied an Apollo assignment. More...
  • Eisele Eisele, Donn Fulton (1930-1987) American test pilot astronaut. Flew on Apollo 7. Died of a heart attack. More...
  • Stafford Stafford, Thomas Patten 'Tom' (1930-) American test pilot astronaut. Flew on Gemini 6, Gemini 9, Apollo 10, Apollo (ASTP). Member of first crew to rendezvous in space. Space speed record (11,107 m/s). More...
  • Mitchell Mitchell, Edgar Dean 'Ed' (1930-) American pilot astronaut. Flew on Apollo 14. Sixth person to walk on the moon. More...
  • Young Young, John Watts (1930-) American test pilot astronaut. Flew on Gemini 3, Gemini 10, Apollo 10, Apollo 16, STS-1, STS-9. Only astronaut to fly Gemini, Apollo, and Shuttle. Ninth person to walk on the moon. Space speed record (11,107 m/s). More...
  • Cernan Cernan, Eugene Andrew 'Gene' (1934-) American test pilot astronaut. Flew on Gemini 9, Apollo 10, Apollo 17. Eleventh person to walk on the moon and last person to step off of the moon. Space speed record (11,107 m/s). More...

Associated Countries
Associated Spacecraft
  • Apollo CSM American manned lunar orbiter. 22 launches, 1964.05.28 (Saturn 6) to 1975.07.15 (Apollo (ASTP)). The Apollo Command Service Module was the spacecraft developed by NASA in the 1960's as a standard spacecraft for earth and lunar orbit missions. More...

See also
Associated Manufacturers and Agencies
  • NASA Houston American agency overseeing development of rockets and spacecraft. Houston, Houston, USA. More...

Associated Programs
  • Apollo The successful US project to land a man on the moon. More...

Associated Launch Sites
  • Cape Canaveral America's largest launch center, used for all manned launches. Today only six of the 40 launch complexes built here remain in use. Located at or near Cape Canaveral are the Kennedy Space Center on Merritt Island, used by NASA for Saturn V and Space Shuttle launches; Patrick AFB on Cape Canaveral itself, operated the US Department of Defense and handling most other launches; the commercial Spaceport Florida; the air-launched launch vehicle and missile Drop Zone off Mayport, Florida, located at 29.00 N 79.00 W, and an offshore submarine-launched ballistic missile launch area. All of these take advantage of the extensive down-range tracking facilities that once extended from the Cape, through the Caribbean, South Atlantic, and to South Africa and the Indian Ocean. More...

Apollo 10 Chronology


1965 May 10 - .
  • Proposal to modify Apollo LEM radar programs - . Nation: USA. Program: Apollo. Flight: Apollo 10. Spacecraft: Apollo LM; LM Guidance. Summary: ASPO Assistant Manager William A. Lee heard a proposal to modify the LEM radar programs to reduce FY 1966 costs by $7 million. . Additional Details: here....

1965 July 15 - .
  • Request to relax Apollo LEM qualification requirements rejected - . Nation: USA. Related Persons: Shea. Program: Apollo. Flight: Apollo 10. Spacecraft: Apollo LM. ASPO Manager Joseph F. Shea informed Grumman that a proposal they had made during the LEM Program Review on July 6 regarding broader qualification scheduling and parts deviations had been reviewed by NASA and it was considered "not in the best interests of the program to relax the requirements to the extent proposed by GAEC. Additional Details: here....

1967 October 30 - .
  • Apollo LM delivery schedule revisions - . Nation: USA. Related Persons: Low, George. Program: Apollo. Flight: Apollo 10. Spacecraft: Apollo LM. Confirming an October 27 telephone conversation, ASPO Manager George M. Low recommended to Apollo Program Director Samuel C. Phillips that the following LM delivery schedule be incorporated into official documentation: LM-2, February 5, 1968; LM-3, April 6, 1968; LM-4, June 6, 1968. Subsequent vehicles would be delivered on two-month centers. The dates had been provided by Grumman during the last Program Management Review.

1967 November 4 - . LV Family: Saturn I; Saturn V.
  • Apollo mission schedule for six flights in 1968 and five in 1969 - . Nation: USA. Related Persons: Mueller. Program: Apollo. Flight: Apollo 10; Apollo 14. Spacecraft: Apollo LM; CSM Recovery. NASA announced an Apollo mission schedule calling for six flights in 1968 and five in 1969. NASA Associate Administrator for Manned Space Flight George E. Mueller said the schedule and alternative plans provided a schedule under which a limited number of Apollo command and service modules and lunar landing modules, configured for lunar landing might be launched on test flights toward the moon by the end of the decade. Apollo/uprated Saturn I flights were identified with a 200 series number; Saturn V flights were identified with a 500 series number. Additional Details: here....

1967 December 20 - .
  • Coax cable problems in Apollo CSM 103 - . Nation: USA. Related Persons: Faget. Program: Apollo. Flight: Apollo 10. Spacecraft: Apollo CSM; CSM Block II. Summary: As a part of the managers' technical status review, Dale Myers of North American Rockwell presented his analysis of fixes for the coax cable in spacecraft 103 and subsequent spacecraft. . Additional Details: here....

1968 October 26 - .
  • Results of the inspection performed on Apollo LM-4 - . Nation: USA. Program: Apollo. Flight: Apollo 10. Spacecraft: Apollo LM. Summary: In a memorandum for the record, MSC's Apollo LM Program Manager C. H. Bolender reviewed results of the receiving inspection performed on LM-4 at KSC on October 21. . Additional Details: here....

1968 October 31 - .
  • AS-504 and AS-505 missions officially designated as Apollo 9 and Apollo 10 - . Nation: USA. Related Persons: Phillips, Samuel. Program: Apollo. Flight: Apollo 9; Apollo 10. Summary: NASA Apollo Program Director Samuel C. Phillips officially designated the AS-504 and AS-505 missions as Apollo 9 and Apollo 10..

1969 January 17-20 - .
  • Checkout on schedule for an Apollo 10 - . Nation: USA. Program: Apollo. Flight: Apollo 10. Checkout was on schedule for an Apollo 10 launch readiness date of May 17. On January 17 the backup crew participated in an altitude test run. The spacecraft docking test, using a simulated adapter, was completed January 20. All three fuel cells were being replaced because of suspected contamination in fuel cell No. 1 and the failure of fuel cell No. 2 to take any voltage load during the power-up for the manned altitude run.

1969 January 31 - .
  • Aluminum fittings replaced in Apollo lunar modules - . Nation: USA. Program: Apollo. Flight: Apollo 10; Apollo 9. Spacecraft: Apollo LM; LM Landing Gear. Summary: About 30 small aluminum brackets and fittings were replaced or reinforced in Apollo lunar modules to rule out the possibility of cracking from stress corrosion. . Additional Details: here....

1969 February 3 - .
  • 12-month plan for Apollo missions - . Nation: USA. Program: Apollo. Flight: Apollo 10; Apollo 11; Apollo 12; Apollo 13; Apollo 9. Spacecraft: Apollo LM; CSM Recovery. NASA Hq. released a 12-month forecast of manned space flight missions, reflecting an assessment of launch schedules for planning purposes. Five flights were scheduled for the remainder of 1969:

    • Apollo 9 - February 28, SA-504, CSM 104, LM-3; manned orbital; up to 10 days' duration; Atlantic recovery.
    • Apollo 10 - May 17, SA-505, CSM 106, LM-4; manned lunar mission, Pacific recovery.
    • Apollo 11 - SA-506, CSM 107, LM-5; manned lunar mission; up to 11 days' duration; Pacific recovery.
    • Apollo 12 - SA-507, CSM 108, LM-6; manned lunar mission; up to 11 days; Pacific recovery.
    • Apollo 13 - SA-508, CSM 109, LM-7; manned lunar mission; up to 11 days' duration; Pacific recovery.

1969 March 11 - .
  • Apollo 10 transferred to Pad B, Launch Complex 39 - . Nation: USA. Program: Apollo. Flight: Apollo 10. Summary: Apollo 10 was transferred to Pad B, Launch Complex 39, at KSC - for first operational use of Pad B. Meanwhile, a revised work schedule providing for a Flight Readiness Test on April 9 and launch readiness on May 18 was being prepared for Apollo 10..

1969 March 24 - .
  • Apollo 10 would be a lunar orbit mission - . Nation: USA. Program: Apollo. Flight: Apollo 10; Apollo 9. Spacecraft: Apollo LM; CSM Recovery. Summary: NASA announced that Apollo 10, scheduled for launch May 18, would be a lunar orbit mission during which two astronauts would descend to within 15,240 meters of the moon's surface. . Additional Details: here....

1969 April 7-11 - .
  • Work on Apollo 10 continued on schedule - . Nation: USA. Program: Apollo. Flight: Apollo 10. Spacecraft: Apollo LM. Work on Apollo 10 continued on schedule for a May 18 launch readiness date. The flight readiness test began on April 7 and was completed on April 10. A lunar module mission-simulation run was completed on April 10, and a crew compartment fit and function test on April 11. Mission control simulations were proceeding on schedule without major problems. The Apollo 10 preflight readiness review was held at MSC on April 11.

1969 April 28 - . LV Family: Saturn V. Launch Vehicle: Saturn V.
  • Apollo 10 launch vehicle damage - . Nation: USA. Program: Apollo. Flight: Apollo 10. A power outage, required to permit maintenance work at the KSC Launch Control Center, was relayed to the pneumatic controls of the S-IC stage of the Apollo 10 launch vehicle, causing the prevalves to open and allowing 5,280 liters of RP-1 fuel to drain from the vehicle. Additional Details: here....

1969 May 2 - . LV Family: Saturn V. Launch Vehicle: Saturn V.
  • Temporary fix for Apollo S-II-stage early center engine cutoff - . Nation: USA. Program: Apollo. Flight: Apollo 10; Apollo 12. A temporary fix to provide for an S-II-stage early center engine cutoff was made for Apollo 10 and 11. Purpose was to eliminate oscillations of the center engine and sympathetic structures. Meanwhile, plans were being made to incorporate a permanent fix into Apollo 12 and subsequent vehicles to eliminate the oscillations.

1969 May 8 - .
  • Status of Apollo experiment support facilities - . Nation: USA. Program: Apollo. Flight: Apollo 10. Spacecraft: Apollo ALSEP. Apollo Program Director Samuel C. Phillips suggested to MSC Director Robert R. Gilruth that a meeting be held at MSC during the period of the Apollo 10 return flight to earth to review the status of experiment support facilities and the overall plans for science support operations during lunar missions and over an extended period of time. Additional Details: here....

1969 May 17 - .
  • Venera 6 lands on Venus - . Nation: USSR. Flight: Apollo 10. Spacecraft: Venera 2V (V-69). Summary: Kamanin notes in his diary that the twin Venus missions mark a new triumph of the USSR in space, but pale in comparison with the American launch of Apollo 10. Kamanin notes there is not one word about the Apollo 10 mission in Pravda..

1969 May 18 - . 16:49 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC39B. LV Family: Saturn V. Launch Vehicle: Saturn V. LV Configuration: Saturn V SA-505.
  • Apollo 10 - . Call Sign: Charlie Brown. Crew: Cernan; Stafford; Young. Backup Crew: Cooper; Eisele; Mitchell. Payload: Apollo CSM 106 / Apollo LM 4 / Saturn S-IVB-505N. Mass: 28,870 kg (63,640 lb). Nation: USA. Related Persons: Cernan; Stafford; Young; Cooper; Eisele; Mitchell. Agency: NASA Houston. Program: Apollo. Class: Moon. Type: Manned lunar spacecraft. Flight: Apollo 10. Spacecraft: Apollo CSM. Duration: 8.00 days. Decay Date: 1969-05-26 . USAF Sat Cat: 3941 . COSPAR: 1969-043A. Apogee: 186 km (115 mi). Perigee: 185 km (114 mi). Inclination: 32.5000 deg. Period: 88.19 min. Final dress rehearsal in lunar orbit for landing on moon. LM separated and descended to 10 km from surface of moon but did not land. Apollo 10 (AS-505) - with crew members Thomas P. Stafford, Eugene A. Cernan, and John W. Young aboard - lifted off from Pad B, Launch Complex 39, KSC, at 12:49 p.m. EDT on the first lunar orbital mission with complete spacecraft. The Saturn V's S-IVB stage and the spacecraft were inserted into an earth parking orbit of 189.9 by 184.4 kilometers while the onboard systems were checked. The S-IVB engine was then ignited at 3:19 p.m. EDT to place the spacecraft in a trajectory toward the moon. One-half hour later the CSM separated from the S-IVB, transposed, and docked with the lunar module. At 4:29 p.m. the docked spacecraft were ejected, a separation maneuver was performed, and the S-IVB was placed in a solar orbit by venting residual propellants. TV coverage of docking procedures was transmitted to the Goldstone, Calif., tracking station for worldwide, commercial viewing.

    On May 19 the crew elected not to make the first of a series of midcourse maneuvers. A second preplanned midcourse correction that adjusted the trajectory to coincide with a July lunar landing trajectory was executed at 3:19 p.m. The maneuver was so accurate that preplanned third and fourth midcourse corrections were canceled. During the translunar coast, five color TV transmissions totaling 72 minutes were made of the spacecraft and the earth.

    At 4:49 p.m. EDT on May 21 the spacecraft was inserted into a lunar orbit of 110.4 by 315.5 kilometers. After two revolutions of tracking and ground updates, a maneuver circularized the orbit at 109.1 by 113.9 kilometers. Astronaut Cernan then entered the LM, checked all systems, and returned to the CM for the scheduled sleep period.

    On May 22 activation of the lunar module systems began at 11:49 a.m. EDT. At 2:04 p.m. the spacecraft were undocked and at 4:34 p.m. the LM was inserted into a descent orbit. One hour later the LM made a low-level pass at an altitude of 15.4 kilometers over the planned site for the first lunar landing. The test included a test of the landing radar, visual observation of lunar lighting, stereo photography of the moon, and execution of a phasing maneuver using the descent engine. The lunar module returned to dock successfully with the CSM following the eight-hour separation, and the LM crew returned to the CSM.

    The LM ascent stage was jettisoned, its batteries were burned to depletion, and it was placed in a solar orbit on May 23. The crew then prepared for the return trip to earth and after 61.5 hours in lunar orbit a service propulsion system TEI burn injected the CSM into a trajectory toward the earth. During the return trip the astronauts made star-lunar landmark sightings, star-earth horizon navigation sightings, and live television transmissions.

  • Apollo 10 LM - . Call Sign: Snoopy. Payload: Apollo LM 4. Mass: 13,941 kg (30,734 lb). Nation: USA. Agency: NASA Houston. Program: Apollo. Class: Moon. Type: Manned lunar spacecraft. Flight: Apollo 10. Spacecraft: Apollo LM. Duration: 8.00 days. Decay Date: 1969-05-26 . USAF Sat Cat: 3941 . COSPAR: 1969-043x. Apogee: 186 km (115 mi). Perigee: 185 km (114 mi). Inclination: 32.5000 deg. Period: 88.19 min.

1969 May 19 - .
  • Apollo 10 trans-lunar coast - . Nation: USA. Flight: Apollo 10. On May 19 the crew elected not to make the first of a series of midcourse maneuvers. A second preplanned midcourse correction that adjusted the trajectory to coincide with a July lunar landing trajectory was executed at 3:19 p.m. The maneuver was so accurate that preplanned third and fourth midcourse corrections were canceled. During the translunar coast, five color TV transmissions totaling 72 minutes were made of the spacecraft and the earth. Additional Details: here....

1969 May 20 - .
  • Apollo 10 trumps Venera missions - . Nation: USSR. Flight: Apollo 10. Summary: Kamanin notes that the Apollo 10 mission is a ten-times greater achievement that the Venera missions being trumpeted by the Soviet media..

1969 May 21 - .
  • Apollo 10 lunar orbit insertion - . Nation: USA. Flight: Apollo 10. At 4:49 p.m. EDT on May 21 the spacecraft was inserted into a lunar orbit of 110.4 by 315.5 kilometers. After two revolutions of tracking and ground updates, a maneuver circularized the orbit at 109.1 by 113.9 kilometers. Astronaut Cernan then entered the LM, checked all systems, and returned to the CM for the scheduled sleep period. Additional Details: here....

1969 May 22 - .
  • Apollo 10 LM descends to within 15.4 km of the lunar surface - . Nation: USA. Flight: Apollo 10. On May 22 activation of the lunar module systems began at 11:49 a.m. EDT. At 2:04 p.m. the spacecraft were undocked and at 4:34 p.m. the LM was inserted into a descent orbit. One hour later the LM made a low-level pass at an altitude of 15.4 kilometers over the planned site for the first lunar landing. The test included a test of the landing radar, visual observation of lunar lighting, stereo photography of the moon, and execution of a phasing maneuver using the descent engine. An error in switch postion brought a heart-stopping moment when the LM ascent stage went into wild gyrations after separation from the descent stage - possible a fatal error if it had occurred during take off from the surface on a landing mission. The ascent stage returned to dock successfully with the CSM following the eight-hour separation, and the LM crew returned to the CSM. Additional Details: here....

1969 May 24 - .
  • Way clear for Apollo 11 - . Nation: USSR. Program: Lunar L3; Lunar L1. Flight: Apollo 10; Apollo 11. Summary: Kamanin writes that Apollo 10 has completed its lunar mission successfully. The way is clear for the final step in American winning the moon race..

1969 May 26 - .
  • Landing of Apollo 10 - . Return Crew: Cernan; Stafford; Young. Nation: USA. Related Persons: Cernan; Stafford; Young. Program: Apollo. Flight: Apollo 10. Apollo 10 splashed down in the Pacific at 12:52 p.m. EDT on May 26, 5.4 kilometers from the recovery ship. The crew was picked up and reached the recovery ship U.S.S. Princeton at 16:52 GMT. All primary mission objectives of evaluating performance and support and the detailed test objectives were achieved.

1969 May 26 - .
  • Return of Apollo 10 to earth. - . Nation: USA. Flight: Apollo 10. Apollo 10 splash down in the Pacific 690 kilometers from Samoa and only 6 kilometers from the prime recovery ship U.S.S. Princeton at 00:52 GMT. A helicopter picked the crew up and carried them to the ship within an hour. The flight proved the Apollo mission profile and hardware for all mission phases except the final descent to the lunar surface. The way was cleared for Apollo 11 to attempt the first landing on the moon.

1969 May 27 - .
  • Manual guidance for TLI on Apollo missions - . Nation: USA. Program: Apollo. Flight: Apollo 10; Apollo 11. Spacecraft: Apollo LM; LM Guidance. Summary: Apollo Program Director Sam C. Phillips wrote to MSC regarding a Flight Readiness Review action item on translunar injection (TLI: insertion into a trajectory toward the moon) dispersions after manual guidance for TLI on Apollo missions. . Additional Details: here....

1969 June 3 - . LV Family: Saturn V. Launch Vehicle: Saturn V.
  • Engineering evaluation of Apollo 10 launch vehicle - . Nation: USA. Program: Apollo. Flight: Apollo 10. Summary: The early engineering evaluation of the Apollo 10 launch vehicle, Saturn V AS-505, indicated that the major flight objectives were accomplished. . Additional Details: here....

1969 June 13 - .
  • Color TV coverage for Apollo 11 approved - . Nation: USA. Program: Apollo. Flight: Apollo 10; Apollo 11. Spacecraft: Apollo CSM; CSM Television. Apollo Program Director Phillips wrote MSC ASPO Manager George Low, that "based on the excellent results of the color TV coverage on the Apollo 10 mission . . . I concur with your plan to carry and utilize a color TV camera in the Command Module for Apollo 11 and subsequent missions. . . ."

1969 June 20 - .
  • List of records for Apollo 11 - . Nation: USA. Program: Apollo. Flight: Apollo 10; Apollo 11. Summary: Sigurd A. Sjoberg, MSC Deputy Director of Flight Operations, informed MSC management of a list of records that could be set in the Apollo 11 flight. . Additional Details: here....

1969 July 9 - .
  • Apollo astronaut itching due to insulation in the command module - . Nation: USA. Program: Apollo. Flight: Apollo 10. Spacecraft: Apollo LM; CSM Hatch; LM Hatch. Microscopic examination of dust particles collected from the spacecraft after the Apollo 10 mission and of samples collected from the inside of nine garments worn by the Apollo 10 astronauts confirmed preliminary findings that the itching experienced by the astronauts was due to the insulation in the tunnel hatch of the command module. Additional Details: here....
