CZ-NGLV

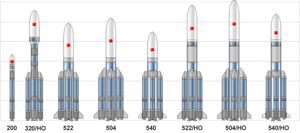

CZ NGLV
Credit: (c) Mark Wade
China's family of new generation expendable launch vehicles began development in 2000. Boosters of various capabilities would be assembled from three modular stages of 2.25 m, 3.35 m and 5.0 m diameter. These would be powered by new variable-thrust 120 tonne thrust Lox/Kerosene engines or 50 tonne thrust Lox/LH2 engines.

China's family of new generation expendable launch vehicles were announced in February 2001, and modified descriptions were provided at the Wuzhai Air Show and IAC in late 2002. Propulsion system details and masses were released at the FAI in Bremen in September 2003. These modular stages were as follows:

  • 2.25 m diameter module powered by one 120 tonne thrust Lox/Kerosene engine
  • 3.35 m diameter module powered by two 120 tonne thrust Lox/Kerosene engines
  • 5.0 m diameter module powered by two 50 tonne thrust Lox/LH2 engines
  • 5.0 m diameter upper stage powered by two 8 tonne thrust Lox/LH2 engines (a derivative of the CZ-3B upper stage)
  • 3.35 m diameter upper stage powered by four 15 tonne thrust Lox/Kerosene engines, evidently an indigenous Chinese development
  • 2.25 m diameter upper stage for the light launch vehicle (probably the CZ-4A third stage)
  • Common large payload fairing, 5.2 m in diameter and coming in three standard lengths.

The new launch vehicles were said to be designed for a 98% reliability as compared to 91% for existing Chinese designs. They were also said to be expected to be 20% cheaper than existing designs. Chief Designer for the new series was Long Lehao.

The new family would use a unique 'direct-to-pad' integration concept using highly automated systems with a total cycle time of only 20 days. The launch vehicle was to be assembled vertically on the launch pad as soon as the stages arrived at the site. It would be checked out in a mobile service tower (MST). In parallel to this the payload would be integrated and encapsulated in a separate encapsulation facility. The encapsulated payload was to be transferred and mated to the launch vehicle only three days before launch.

More... - Chronology...


Associated Launch Vehicles
  • CZ-NGLV-320 Chinese orbital launch vehicle. The Long March New Generation Launch Vehicle series medium launcher would use the 3.35 m diameter module and a new 3.35 m diameter second stage as the core vehicle. Either two or four 2.25 m diameter modules would be used as strap-ons. Payload to low earth orbit would be three tonnes with two strap-ons and 10 tonnes with four strap-ons. More...
  • CZ-NGLV-540 Chinese orbital launch vehicle. The 540 configuration for the Long March New Generation Launch Vehicle series would use the 5.0 m diameter core stage with four 2.25 m diameter stages as strap-ons. Payload was given as 10 tonnes to low earth orbit. A standard short 5.2 m diameter fairing tops the vehicle. More...
  • CZ-NGLV Chinese orbital launch vehicle. China's family of new generation expendable launch vehicles began development in 2000. Boosters of various capabilities would be assembled from three modular stages of 2.25 m, 3.35 m and 5.0 m diameter. These would be powered by new variable-thrust 120 tonne thrust Lox/Kerosene engines or 50 tonne thrust Lox/LH2 engines. More...
  • CZ-NGLV-522 Chinese orbital launch vehicle. The 522 configuration for the Long March New Generation Launch Vehicle series would use the 5.0 m diameter core stage with 2 x 2.25 m plus 2 x 3.35 m strap-on stages. Payload is estimated as 18-20 tonnes to low earth orbit. More...
  • CZ-NGLV-522/HO Chinese orbital launch vehicle. The 522/HO was the 'all up' baseline configuration for the Long March New Generation Launch Vehicle series. It would use the 5.0 m core stage, topped by the 5.0 m upper stage, together with 2 x 2.25 m plus 2 x 3.35 m strap-on stages. It was announced in 2003 that it would be first to fly, with a launch before the Beijing Olympics in 2008. It would be used for launch of large communications satellites. Payload is estimated as 10-12 tonnes to geosynchronous transfer orbit. More...
  • CZ-NGLV-200 Chinese orbital launch vehicle. The Long March New Generation Launch Vehicle series small launcher would use the 2.25 m diameter module as the first stage and a single upper stage of the same diameter (probably the existing YF-73 stage of the CZ-3). Payload was given as 1.5 tonnes into low earth orbit. First launch was expected after 2008. Although the configuration was not shown at the Wuzhai Air Show in 2002 it re-emerged at the FAI in 2003. It seemed to be in competition with the all-solid-propellant KT-1, KT-2, and KT-2A series. More...
  • CZ-NGLV-504 The 504 configuration for the Long March New Generation Launch Vehicle series would use the 5.0 m diameter core stage with four 3.35 m diameter stages as strap-ons. Payload was given as 25 tonnes to low earth orbit. A standard large 5.2 m diameter fairing tops the vehicle. It would be used to launch the Chinese Space Laboratory in 2010. More...
  • CZ-NGLV-540/HO Chinese orbital launch vehicle. The 540/HO configuration for the Long March New Generation Launch Vehicle series would use the 5.0 m core stage, topped by the 5.0 m upper stage, together with 4 x 2.25 m strap-on stages. First flight of this version was expected after 2010. Payload was given as 6 tonnes to geosynchronous transfer orbit. More...
  • CZ-NGLV-504/HO Chinese orbital launch vehicle. The 504/HO configuration for the Long March New Generation Launch Vehicle series would use the 5.0 m core stage, topped by the 5.0 m upper stage, together with 4 x 3.35 m strap-on stages. First flight of this version was expected after 2010. Payload was given as 14 tonnes to geosynchronous transfer orbit. More...

CZ-NGLV Chronology


2000 September 21 - . LV Family: CZ-NGLV. Launch Vehicle: CZ-NGLV-320.
  • Chinese Rocket Plans - . Nation: China. Chief Designer of Chinese rockets Long Lehao described China's three-phase future space launcher plan. Phase 1, 2001-2003: Modify existing launchers to increase their reliability and payload capacity. Phase 2, by 2005: Develop non-toxic, non-polluting launchers, and increase low-Earth-orbit launch capacity to over 20 tonnes and geosynchronous transfer orbit capacity from the current 5.5 tonnes to about 14 tonnes. Phase 3: Develop a recoverable launch vehicle with lower launch costs.

2000 October 14 - . LV Family: CZ; CZ-1; CZ-NGLV.
  • China Reveals New Launcher Detail - . Nation: China. During the International Astronautical Federation (IAF) annual congress in Rio de Janeiro, China unveiled deatils of its new CZ-5 heavy launch vehicle family. Powered by kerosene/LOX/LH2 engines and four strap-on boosters, the new 800-ton, 50-55-meter high launcher would be capable of lifting 23 tonnes into LEO and 11 tonnes into geostationary transfer orbit. The CZ-2E(A), equipped with new avionics from the man-rated CZ-2F, was to be tested by 2003. The CZ-1D small launcher was slated to make its first flight in 2001, while yet another small launcher, a 4 stage solid rocket, was under design.
