Delta 0100
Part of Thor Family

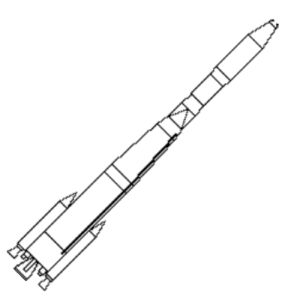

Delta 100
Delta 100
Credit: © Mark Wade
American orbital launch vehicle. The military Thor-Delta vehicles were developed into the first of a series of commercial satellite launch vehicles. The Delta 0100 series featured Castor 2 solid propellant strap-ons and a Long Tank Thor core with MB-3 engine.

AKA: Long Tank Thor. Status: Out of production. Payload: 635 kg (1,399 lb). Thrust: 2,140.70 kN (481,249 lbf). Gross mass: 116,573 kg (256,999 lb). Height: 34.00 m (111.00 ft). Diameter: 2.44 m (8.00 ft).

Payload: 635 kg (1,399 lb) to a GTO. Flyaway Unit Cost 1985$: 25.330 million.

Stage Data - Delta 0100

  • Stage 0. 9 x Castor 2. Gross Mass: 4,424 kg (9,753 lb). Empty Mass: 695 kg (1,532 lb). Thrust (vac): 258.915 kN (58,206 lbf). Isp: 262 sec. Burn time: 37 sec. Isp(sl): 232 sec. Diameter: 0.79 m (2.59 ft). Span: 0.79 m (2.59 ft). Length: 6.04 m (19.81 ft). Propellants: Solid. No Engines: 1. Engine: TX-354-3. Status: In Production.
  • Stage 1. 1 x Delta Thor LT. Gross Mass: 70,354 kg (155,104 lb). Empty Mass: 3,715 kg (8,190 lb). Thrust (vac): 866.710 kN (194,844 lbf). Isp: 290 sec. Burn time: 215 sec. Isp(sl): 256 sec. Diameter: 2.44 m (8.00 ft). Span: 2.44 m (8.00 ft). Length: 21.43 m (70.30 ft). Propellants: Lox/Kerosene. No Engines: 1. Engine: MB-3-3. Other designations: Long Tank Thor. Status: Out of Production.
  • Stage 2. 1 x Delta F. Gross Mass: 5,629 kg (12,409 lb). Empty Mass: 784 kg (1,728 lb). Thrust (vac): 41.364 kN (9,299 lbf). Isp: 280 sec. Burn time: 335 sec. Isp(sl): 0.0000 sec. Diameter: 1.40 m (4.50 ft). Span: 1.40 m (4.50 ft). Length: 6.28 m (20.60 ft). Propellants: Nitric acid/UDMH. No Engines: 1. Engine: AJ10-118F. Status: Out of Production.
  • Stage 3. 1 x Burner 2. Gross Mass: 774 kg (1,706 lb). Empty Mass: 116 kg (255 lb). Thrust (vac): 43.551 kN (9,791 lbf). Isp: 285 sec. Burn time: 42 sec. Isp(sl): 220 sec. Diameter: 0.66 m (2.16 ft). Span: 0.66 m (2.16 ft). Length: 0.84 m (2.75 ft). Propellants: Solid. No Engines: 1. Engine: Star 37. Status: Out of Production. Burner II was a launch vehicle upper stage developed by Boeing for the Air Force Space Systems Division. It was the first solid-fuel upper stage with full control and guidance capability developed for general space applications. Burner II was designed for use with the Thor booster, but was readily adapted for use on the complete range of standard launch vehicles. Its general assignment was to place small- and medium size payloads into orbit. The Burner II motor, guidance system and reaction control system were integrated to provide attitude stability and precise control of flight rate and burnout velocity for orbital injection and earth-escape missions. Boeing had delivered 8 flight vehicles under its original contract. Under terms of a follow-on contract, it built 6 additional flight models. Four Thor-Burner II combinations were launched successfully from Vandenberg Air Force Base, California. The third launch placed 2 unclassified satellites in Earth orbit. A SECOR satellite, built for the U.S. Army Corps of Engineers by the Cubic Corporation, and an Aurora satellite, developed by Rice University for the Office of Naval Research, were placed in circular orbits 3,300 km above the Earth. As integration contractor for the Air Force Space Experiment Support Program (SESP) Office, Boeing designed, built and tested the injection stage, or "payload dispenser," which carried the 2 satellites on top of a standard Burner II stage and placed them in precise orbits. The satellites were mounted on opposite sides of the injection stage, which housed a640 kgf thrust, solid-propellant rocket motor. The Burner II was used as an upper stage by NASA for deep space probes. Prime Contractor: The Boeing Company. Major Subcontractors Thiokol Chemical Corporation (solid rocket motor); Honeywell Inc. (pre-programmed inertial guidance system); Walter Kidde Co. (reaction control system).



Family: orbital launch vehicle. Country: USA. Engines: AJ10-118F, MB-3-3. Spacecraft: Oscar, Nimbus, ITOS, Landsat 1-2-3. Stages: Castor 2, Star 37. Agency: Douglas.
