Stuhlinger Mars 1962

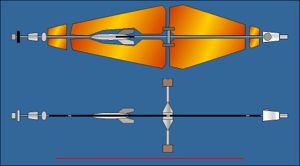

Stuhlinger 1962
Credit: © Mark Wade
American manned Mars expedition. By 1962 Ernst Stuhlinger's ion-drive Mars expedition had evolved within the Research Projects Division into five 150 m long spacecraft, housing a total crew of 15. A much shorter 475 day mission time was planned.

There were two advanced planning groups at the Army Ballistic Missile Agency: the Research Projects Division, headed by Ernst Stuhlinger, and the Future Projects Office, headed by Hans Koelle (which developed the Project Horizon Army Moon Base and the EMPIRE Mars expeditions).

By 1962 Ernst Stuhlinger's ion-drive Mars expedition had evolved within the Research Projects Division into five 150 m long spacecraft, housing a total crew of 15. The engines accelerated ionized cesium propellant and were powered by a 115 MWT nuclear reactor, which produced 40 MWE and required 4300 sq m of radiators to dissipate waste hear. The triangular radiators gave the spacecraft a flat diamond-shape, with a total mass of 360 metric tons. Three 'A' ships would each be equipped with a 70 metric ton lander, have 120 metric tons of propellant, and remain in Mars orbit. Two 'B' ships would make the round trip, have 190 metric tons of propellant, and no lander.

The mission profile for the low-acceleration vessels involved a 56 day spiraling orbit away from the earth before escape velocity was reached, 146 days transit to Mars, and 21 days to decelerate after Mars capture into a low orbit around Mars. The crew would ride the lander for a 29 day surface stay, before returning to the orbiting B ships for the return to earth. The return trip would mirror the outgoing voyage. During the long trip to Mars and back, the ships would rotate at 1.3 revolutions per minute in order to put the crew under 1/10 G. To protect the crew against radiation, a 50 metric ton graphite shelter was provided aboard each ship. This was 2.8 m in diameter and 1.9 m long, providing tight quarters for three crew. They would have to spend 20 days in this shelter during transit of the Van Allen radiation belts.

Stuhlinger Mars 1962 Mission Summary:

  • Summary: Update of 1957 nuclear electric Mars expedition design
  • Propulsion: Nuclear electric
  • Braking at Mars: propulsive
  • Mission Type: low acceleration
  • Split or All-Up: all up
  • ISRU: no ISRU
  • Launch Year: 1975
  • Crew: 15
  • Outbound time-days: 223
  • Mars Stay Time-days: 29
  • Return Time-days: 223
  • Total Mission Time-days: 475
  • Total Payload Required in Low Earth Orbit-metric tons: 1800
  • Total Propellant Required-metric tons: 740
  • Propellant Fraction: 0.41
  • Mass per crew-metric tons: 120
  • Launch Vehicle Payload to LEO-metric tons: 454
  • Number of Launches Required to Assemble Payload in Low Earth Orbit: 4
  • Launch Vehicle: Nova GD-H

Crew Size: 15. Electric System: 40,000.00 average kW.

Gross mass: 360,000 kg (790,000 lb).
Payload: 70,000 kg (154,000 lb).
Height: 150.00 m (490.00 ft).

More... - Chronology...


Associated Countries
See also
  • Mars Expeditions Since Wernher von Braun first sketched out his Marsprojekt in 1946, a succession of designs and mission profiles were seriously studied in the United States and the Soviet Union. By the late 1960's Von Braun had come to favour nuclear thermal rocket powered expeditions, while his Soviet counterpart Korolev decided that nuclear electric propulsion was the way to go. All such work stopped in both countries in the 1970's, after the cancellation of the Apollo program in the United States and the N1 booster in the Soviet Union. More...

Associated Manufacturers and Agencies
Associated Propellants
  • Electric/Cesium The many versions of electric engines use electric or magnetic fields to accelerate ionized elements to high velocity, creating thrust. The power source can be a nuclear reactor or thermal-electric generator, or solar panels. More...

Bibliography
  • Miller, Ron, The Dream Machines, Krieger, Malabar, Florida, 1993.
  • Portree, David S. F., Humans to Mars: Fifty Years of Mission Planning, 1950 - 2000, NASA Monographs in Aerospace History Series, Number 21, February 2001.
