Spartan



STS-51-G

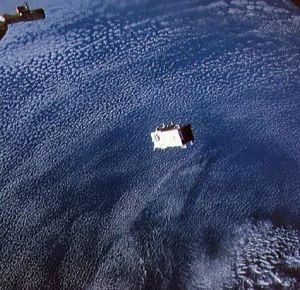

Spartan 1 satellite moves away from orbiter over ocean
Credit: NASA
American solar satellite. 8 launches, 1985.06.17 (Spartan 1) to 1998.10.29 (Spartan 201).

The Spartan (Shuttle Point Autonomous Research Tool for Astronomy) satellite was a reusable free-flying astronomical observatory which was deployed and then retrieved by the US Space Shuttle's Remote Manipulator System arm. The most often flow Spartan-201's main payload was the UVCS and WLC telescope package containing the SAO/Cambridge ultraviolet spectrometer and the HAO/Boulder white light coronagraph. Secondary equipment varied by mission - for example, the fifth flight had a target for the VGS laser, and sample plates to trap beryllium ions from the solar wind.

Gross mass: 1,195 kg (2,634 lb).
First Launch: 1985.06.17.
Last Launch: 1998.10.29.
Number: 8 .

More... - Chronology...


Associated Countries
See also
  • Shuttle The manned reusable space system which was designed to slash the cost of space transport and replace all expendable launch vehicles. It did neither, but did keep NASA in the manned space flight business for 30 years. More...

Associated Launch Vehicles
  • Shuttle American winged orbital launch vehicle. The manned reusable space system which was designed to slash the cost of space transport and replace all expendable launch vehicles. It did neither, but did keep NASA in the manned space flight business for 30 years. Redesign of the shuttle with reliability in mind after the Challenger disaster reduced maximum payload to low earth orbit from 27,850 kg to 24,400 kg. More...

Associated Manufacturers and Agencies
  • NASA American agency overseeing development of rockets and spacecraft. National Aeronautics and Space Administration, USA, USA. More...

Associated Programs
  • STS The Space Transportation System (Space Shuttle) was conceived originally as a completely reusable system that would provide cheap, routine access to space and replace all American and civilian military launch vehicles. Crippled by technological overreach, political compromise, and budget limitations, it instead ended up costing more than the expendable rockets it was to have replaced. STS sucked the money out of all other NASA projects for half a century. The military abandoned its use after the Challenger shuttle explosion in the 1980's. More...

Bibliography
  • McDowell, Jonathan, Jonathan's Space Home Page (launch records), Harvard University, 1997-present. Web Address when accessed: here.
  • McDowell, Jonathan, Jonathan's Space Report (Internet Newsletter), Harvard University, Weekly, 1989 to Present. Web Address when accessed: here.
  • JPL Mission and Spacecraft Library, Jet Propulsion Laboratory, 1997. Web Address when accessed: here.
  • NASA GSFC Orbital Parameters,
  • NASA Report, Spartan: Science with efficiency and simplicity, Web Address when accessed: here.
  • NASA Report, The Spartan Project Develops New Carriers, Web Address when accessed: here.
  • NASA Report, Spartan 201-05 to Fly on STS-95, Web Address when accessed: here.

Associated Launch Sites
  • Cape Canaveral America's largest launch center, used for all manned launches. Today only six of the 40 launch complexes built here remain in use. Located at or near Cape Canaveral are the Kennedy Space Center on Merritt Island, used by NASA for Saturn V and Space Shuttle launches; Patrick AFB on Cape Canaveral itself, operated the US Department of Defense and handling most other launches; the commercial Spaceport Florida; the air-launched launch vehicle and missile Drop Zone off Mayport, Florida, located at 29.00 N 79.00 W, and an offshore submarine-launched ballistic missile launch area. All of these take advantage of the extensive down-range tracking facilities that once extended from the Cape, through the Caribbean, South Atlantic, and to South Africa and the Indian Ocean. More...
  • Cape Canaveral LC39B Shuttle, Saturn V, Saturn I launch complex. LC39A and LC39B, part of the Kennedy Space Center, were built on Merritt Island (north/northwest of the Cape) to support the Saturn V/Apollo lunar landing program in 1963-1966. The sites were modified in the last half of the 1970s to support the manned Space Shuttle program. More...
  • Cape Canaveral LC39A Shuttle, Saturn V launch complex. LC39A and LC39B, part of the Kennedy Space Center, were built on Merritt Island (north/northwest of the Cape) to support the Saturn V/Apollo lunar landing program. The sites were modified in the last half of the 1970s to support the manned Space Shuttle program. Construction began in December 1963. Complex 39A was completed on 4 October 1965. Complex 39A supported two unmanned and nine manned Saturn V/Apollo missions between 9 November 1967 and 8 December 1972. The site also supported the launch of the Skylab space station on 14 May 1973. Both complexes were modified to support Space Shuttle missions later on. Complex 39A supported the first Space Shuttle launch on 12 April 1981. More...

Spartan Chronology


1985 June 17 - . 11:33 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC39A. LV Family: Shuttle. Launch Vehicle: Shuttle. LV Configuration: Space Shuttle 51-G.
  • Spartan 1 - . Payload: Spartan 101. Mass: 1,008 kg (2,222 lb). Nation: USA. Agency: NASA Greenbelt. Class: Astronomy. Type: X-ray astronomy satellite. Spacecraft: Spartan. Decay Date: 1985-06-24 . USAF Sat Cat: 15831 . COSPAR: 1985-048E. Apogee: 395 km (245 mi). Perigee: 359 km (223 mi). Inclination: 28.5000 deg. Period: 92.10 min. Summary: Released by STS 51G 20 June 1985, retrieved 22 June 1985..

1993 April 8 - . 05:29 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC39B. LV Family: Shuttle. Launch Vehicle: Shuttle. LV Configuration: Space Shuttle STS-56.
  • Spartan 201 - . Mass: 1,289 kg (2,841 lb). Nation: USA. Agency: NASA Greenbelt. Program: STS. Class: Astronomy. Type: X-ray astronomy satellite. Spacecraft: Spartan. Decay Date: 1993-04-13 . USAF Sat Cat: 22623 . COSPAR: 1993-023B. Apogee: 298 km (185 mi). Perigee: 291 km (180 mi). Inclination: 57.0000 deg. Period: 90.40 min. Summary: Studied solar corona and galaxy; deployed from STS-56 4/11/93; Shuttle Point Autonomous Research Tool for Astronomy; retrieved 4/13/93..

1994 September 9 - . 22:22 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC39B. LV Family: Shuttle. Launch Vehicle: Shuttle. LV Configuration: Space Shuttle STS-64.
  • Spartan 201 - . Mass: 1,288 kg (2,839 lb). Nation: USA. Agency: NASA Greenbelt. Program: STS. Class: Astronomy. Type: X-ray astronomy satellite. Spacecraft: Spartan. Decay Date: 1994-09-20 . USAF Sat Cat: 23253 . COSPAR: 1994-059B. Apogee: 265 km (164 mi). Perigee: 252 km (156 mi). Inclination: 57.0000 deg. Period: 89.68 min. Summary: Deployed from STS-64 9/13/94; retrieved 9/15/94; solar studies..

1995 February 3 - . 05:22 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC39B. LV Family: Shuttle. Launch Vehicle: Shuttle. LV Configuration: Space Shuttle STS-63.
  • Spartan 204 - . Nation: USA. Agency: NRL. Program: STS. Class: Astronomy. Type: X-ray astronomy satellite. Spacecraft: Spartan. Decay Date: 1995-02-11 . USAF Sat Cat: 23470 . COSPAR: 1995-004B. Apogee: 389 km (241 mi). Perigee: 388 km (241 mi). Inclination: 51.7000 deg. Period: 92.30 min. Summary: Retrievable payload to observe galactic dust in far UV; deployed from STS 63 2/7/95, retrieved 2/9/95..

1995 September 7 - . 15:09 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC39A. LV Family: Shuttle. Launch Vehicle: Shuttle. LV Configuration: Space Shuttle STS-69.
  • Spartan 201 - . Nation: USA. Agency: NASA Greenbelt. Program: STS. Class: Astronomy. Type: X-ray astronomy satellite. Spacecraft: Spartan. Decay Date: 1995-09-18 . USAF Sat Cat: 23668 . COSPAR: 1995-048B. Apogee: 376 km (233 mi). Perigee: 368 km (228 mi). Inclination: 28.5000 deg. Period: 92.00 min. Summary: Released by STS-69 9/8/95; retrieved 9/10/95; examined solar corona..

1996 May 19 - . 10:30 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC39B. LV Family: Shuttle. Launch Vehicle: Shuttle. LV Configuration: Space Shuttle STS-77.
  • Spartan 207 - . Nation: USA. Agency: JPL. Program: STS. Class: Astronomy. Type: X-ray astronomy satellite. Spacecraft: Spartan. Decay Date: 1996-05-29 . USAF Sat Cat: 23871 . COSPAR: 1996-032B. Apogee: 288 km (178 mi). Perigee: 278 km (172 mi). Inclination: 39.0000 deg. Period: 90.20 min. Summary: LEO. Deployed from STS 77 on 5/20/96; retrieved 5/21/96; deployed IAEsatellite during free flight..

1997 November 19 - . 19:46 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC39B. LV Family: Shuttle. Launch Vehicle: Shuttle. LV Configuration: Space Shuttle STS-87.
  • Spartan 201 - . Nation: USA. Agency: NASA Greenbelt. Program: STS. Class: Astronomy. Type: X-ray astronomy satellite. Spacecraft: Spartan. Decay Date: 1997-12-05 . USAF Sat Cat: 25062 . COSPAR: 1997-073B. Apogee: 284 km (176 mi). Perigee: 278 km (172 mi). Inclination: 28.5000 deg. Period: 90.10 min. Summary: Retrieved by OV-102 Nov 25.

1998 October 29 - . 19:19 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC39B. LV Family: Shuttle. Launch Vehicle: Shuttle. LV Configuration: Space Shuttle STS-95.
  • Spartan 201 - . Nation: USA. Agency: NASA Greenbelt. Program: STS. Class: Astronomy. Type: X-ray astronomy satellite. Spacecraft: Spartan. Decay Date: 1998-11-07 . USAF Sat Cat: 25521 . COSPAR: 1998-064C. Apogee: 560 km (340 mi). Perigee: 549 km (341 mi). Inclination: 28.4000 deg. Period: 95.74 min. Summary: Retrieved by Discovery November 3 1998..
