Encyclopedia Astronautica
DODGE



Dodge
Credit: USAF

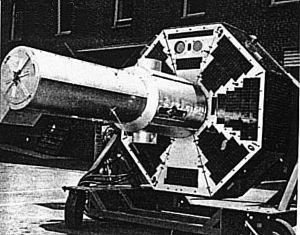

American gravity gradient technology satellite. One launch, 1967.07.01. The Navy's 195 kg DODGE (Department Of Defense Gravity Experiment) satellite had the primary mission to explore gravity gradient stabilization at near synchronous altitude.

It was launched successfully from Cape Kennedy on July 1, 1967, aboard a Titan III-C rocket. DODGE carried ten booms that were radio commanded to extend or retract along 3 different axes. Data from in-orbit experiments provided fundamental constants for use in controlling future high-altitude spacecraft. DODGE also carries a number of commandable magnetic damping devices and two television cameras to determine satellite alignment. One of the cameras also provided the first color pictures of the full Earth. One month after launch the satellite had been successfully stabilized and the television cameras were working as expected. Prime Contractor was the Johns Hopkins University Applied Physics Laboratory,

Gross mass: 102 kg (224 lb).
First Launch: 1967.07.01.
Number: 1 .

More... - Chronology...


Associated Countries
See also
  • Titan The Titan launch vehicle family was developed by the United States Air Force to meet its medium lift requirements in the 1960's. The designs finally put into production were derived from the Titan II ICBM. Titan outlived the competing NASA Saturn I launch vehicle and the Space Shuttle for military launches. It was finally replaced by the USAF's EELV boosters, the Atlas V and Delta IV. Although conceived as a low-cost, quick-reaction system, Titan was not successful as a commercial launch vehicle. Air Force requirements growth over the years drove its costs up - the Ariane using similar technology provided lower-cost access to space. More...

Associated Launch Vehicles
  • Titan American orbital launch vehicle. The Titan launch vehicle family was developed by the United States Air Force to meet its medium lift requirements in the 1960's. The designs finally put into production were derived from the Titan II ICBM. Titan outlived the competing NASA Saturn I launch vehicle and the Space Shuttle for military launches. It was finally replaced by the USAF's EELV boosters, the Atlas V and Delta IV. Although conceived as a low-cost, quick-reaction system, Titan was not successful as a commercial launch vehicle. Air Force requirements growth over the years drove its costs up - the Ariane using similar technology provided lower-cost access to space. More...
  • Titan 3C American orbital launch vehicle. Titan 3A with five segment solid motors. Man-rated design originally developed for Dynasoar spaceplane. More...

Associated Manufacturers and Agencies
  • APL American manufacturer of rockets and spacecraft. Applied Physics Laboratory, Johns Hopkins University, Laurel, MD, Laurel, Maryland, USA. More...
  • USAF American agency overseeing development of rockets and spacecraft. United States Air Force, USA. More...

Bibliography
  • McDowell, Jonathan, Jonathan's Space Home Page (launch records), Harvard University, 1997-present. Web Address when accessed: here.
  • JPL Mission and Spacecraft Library, Jet Propulsion Laboratory, 1997. Web Address when accessed: here.
  • Aerospace Yearbook, 1966,

Associated Launch Sites
  • Cape Canaveral America's largest launch center, used for all manned launches. Today only six of the 40 launch complexes built here remain in use. Located at or near Cape Canaveral are the Kennedy Space Center on Merritt Island, used by NASA for Saturn V and Space Shuttle launches; Patrick AFB on Cape Canaveral itself, operated the US Department of Defense and handling most other launches; the commercial Spaceport Florida; the air-launched launch vehicle and missile Drop Zone off Mayport, Florida, located at 29.00 N 79.00 W, and an offshore submarine-launched ballistic missile launch area. All of these take advantage of the extensive down-range tracking facilities that once extended from the Cape, through the Caribbean, South Atlantic, and to South Africa and the Indian Ocean. More...
  • Cape Canaveral LC41 Titan, Atlas V launch complex. Complexes 40 and 41 were constructed as part of the Integrate-Transfer-Launch (ITL) Titan launch facility at the north end of Cape Canaveral in the early 1960s. Over the next three decades, the complexes supported a wide variety of military space missions involving Titan IIIC, Titan 34D and Titan IV. Complex 41 was deactivated at the end of 1977, then upgraded for the Titan IV program in the 1986-88 period. In October 1999, Complex 41 was demolished with high explosives in order for a new pad for launch of the Atlas 5 rocket to be erected. By then it had been the starting point for 27 Titan flights. More...

DODGE Chronology


1967 July 1 - . 13:15 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC41. LV Family: Titan. Launch Vehicle: Titan 3C. LV Configuration: Titan IIIC 3C-14.
  • DODGE 1 - . Mass: 102 kg (224 lb). Nation: USA. Agency: USN NASC. Class: Technology. Type: Gravity gradient technology satellite. Spacecraft: DODGE. USAF Sat Cat: 2867 . COSPAR: 1967-066F. Apogee: 33,670 km (20,920 mi). Perigee: 33,257 km (20,664 mi). Inclination: 12.0000 deg. Period: 1,319.10 min. Summary: Gravity gradient experiments. Space craft engaged in investigation of spaceflight techniques and technology (US Cat A). .
