Artemis



Artemis

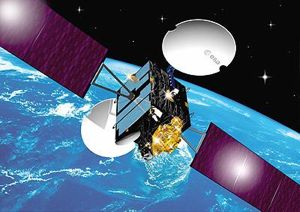

European communications technology satellite. One launch, 2001.07.12. Artemis was a European Space Agency satellite to test new communications technologies.

It carried the Silex laser communications experiment, an S-band inter-orbit link, a Ka-band data relay package, a large L-band antenna for mobile services, and an L-band navigation package. The 3105 kg satellite was equipped with an Astrium S400 400 N liquid apogee engine with 1538 kg of propellants; a set of 10 N RCS thrusters; and four 20 mN ion thrusters with 40 kg of xenon. The 2.5 kW spacecraft was to provide voice and data communications between mobile phones in Europe and North America, and act as a relay satellite between low-Earth orbiters and ground stations. Eventually, as part of the planned EGNOS system (to be operational by about 2010) it was to provide navigation/location determination as an independent European counterpart to the GPS and GLONASS fleets.

Electric System: 2.50 average kW.

AKA: Advanced Relay TEchnology MISsion.
Gross mass: 3,105 kg (6,845 lb).
Unfuelled mass: 1,567 kg (3,454 lb).
First Launch: 2001.07.12.
Number: 1 .

More... - Chronology...


Associated Countries
See also
  • Ariane 5 The Ariane 5 was a completely new design, unrelated to the earlier Ariane 1 to 4. It consisted of a single-engine Lox/LH2 core stage flanked by two solid rocket boosters. Preparatory work began in 1984. Full scale development began in 1988 and cost $ 8 billion. The design was sized for the Hermes manned spaceplane, later cancelled. This resulted in the booster being a bit too large for the main commercial payload, geosynchronous communications satellites. As a result, development of an uprated version capable of launching two such satellites at a time was funded in 2000. More...

Associated Launch Vehicles
  • Ariane 5 French orbital launch vehicle. The Ariane 5 was a completely new design, unrelated to the earlier Ariane 1 to 4. It consisted of a single-engine Lox/LH2 core stage flanked by two solid rocket boosters. Preparatory work began in 1984. Full scale development began in 1988 and cost $ 8 billion. The design was sized for the Hermes manned spaceplane, later cancelled. This resulted in the booster being a bit too large for the main commercial payload, geosynchronous communications satellites. As a result, development of an uprated version capable of launching two such satellites at a time was funded in 2000. More...
  • Ariane 5G French orbital launch vehicle. Initial version of the Ariane 5, a bit too large for the main commercial geosynchronous communications satellite payloads. More...

Associated Manufacturers and Agencies
  • ESA European agency overseeing development of rockets and spacecraft. European Space Agency, Europe. More...

Bibliography
  • McDowell, Jonathan, Jonathan's Space Home Page (launch records), Harvard University, 1997-present. Web Address when accessed: here.
  • National Space Science Center Planetary Page, As of 19 February 1999.. Web Address when accessed: here.
  • NASA Report, ESA Artemis Brochure, Web Address when accessed: here.

Associated Launch Sites
  • Kourou After the agreement with newly independent Algeria for France to evacuate their launch sites in that country, a location near Biscarosse was selected for French missile testing. However since only launches westwards across the Bay of Biscay could be made from this site, it was unsuitable for France's Diamant orbital launch vehicle. After reviewing 14 potential sites, a location in the South American French colony of Guiana was selected. This would allow over-water launches to a tremendous range of possible orbital inclinations -- from -100.5 deg to 1.5 deg. Being near the equator, it would provide the maximum assist from the earth's rotation for launches into equatorial orbits. The decision was formalized in April 1964 and in July 1966 ELDO chose the site for future launches of the Europa II launch vehicle. More...
